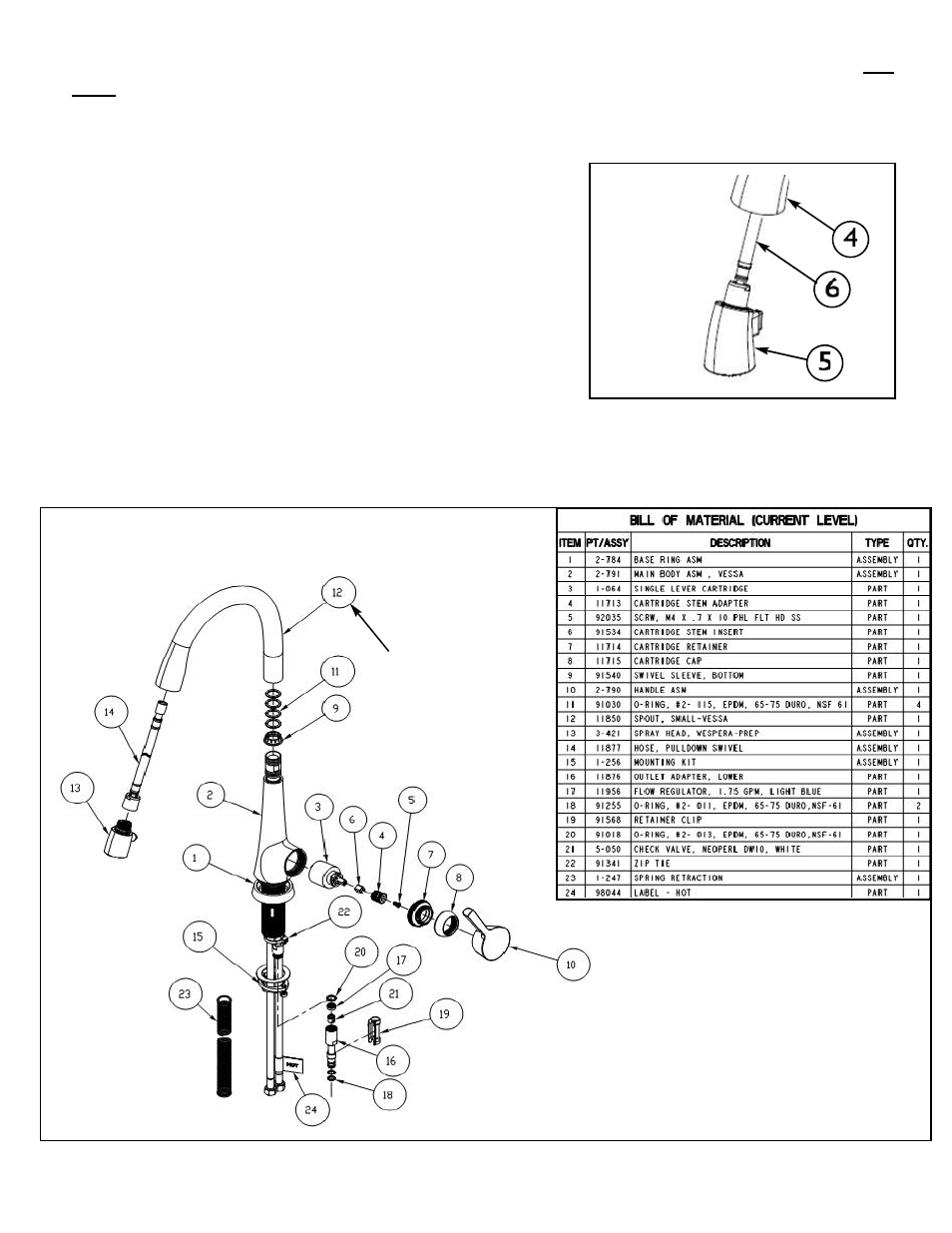

Figure 6 - Spare Parts
ORDER 11871
FOR 2500-5203
8. With faucet in the OFF position, open water supply valves. Inspect connections under sink for leaks.
DO
NOT turn faucet on yet.
9. Pull SPRAYHEAD (5) out from SPOUT (4). While holding HOSE (6), unscrew SPRAYHEAD (5). Aiming HOSE
(6) into sink, turn on faucet to center position (mixed) and flush for one minute to remove debris from lines.
10. Turn OFF faucet and reattach SPRAYHEAD (5) to HOSE (6).
See
Figure 5.
11. Check the SPRAYHEAD (5) by operating the trigger from aerator
to spray. Spray engine will reset to aerator mode when water is
turned off.
Figure 5
01/28/14
