Newport Brass 2500-5203 User Manual
Page 2
Recommended Installation by a Professional Plumbing Contractor
Note: The use of petroleum base plumbers putty on our products will nullify the warranty. We recom
mend the use of clear silicone sealing materials.
If mounting faucet to stainless steel rim, an under-mount support, (e.g. wood, appropriate size x 1/2”
thick), should be utilized.

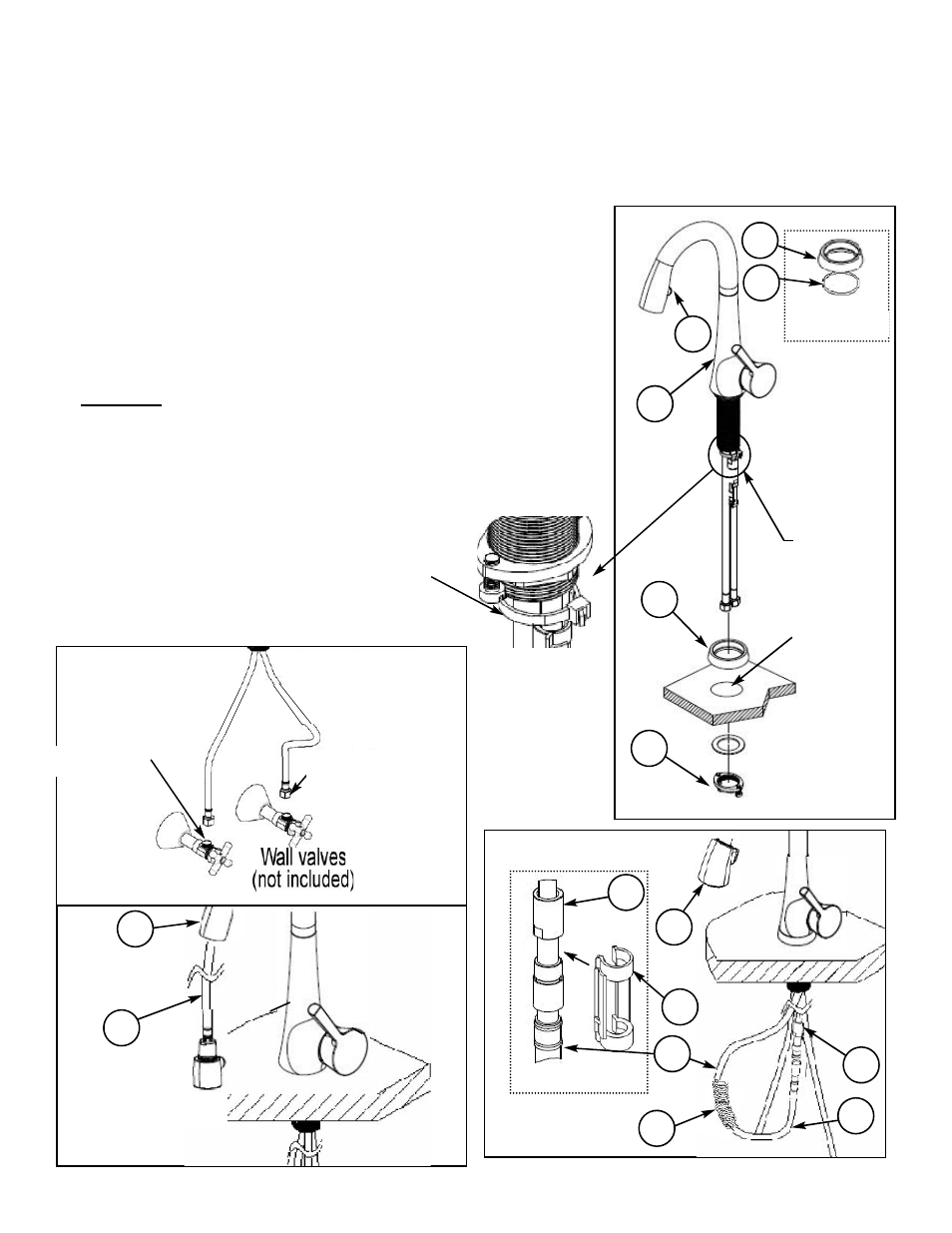

1. Drill hole in mounting surface. Recommended deck hole Ø1.350” not
to exceed Ø1.562”.
2. Place O-ring (2) on underside of base RING (1).
See Figure 1a.
3. Insert Hoses through hole in mounting surface. Secure into place with
MOUNTING KIT (3).
See Figure 1.
4. Attach hot/cold spout supply directly to valves in the wall.
See Fig. 2
5.
DO NOT remove the HOSE (6) from SPOUT (4). See Figure 3.
6. Remove SPRING (9) from suport and slide onto HOSE(6).
See Fig.4.
7. Connect HOSE (6) to valve outlet (8).
See Figure 4. Attach CLIP (7)
to the connection between HOSE (6) and OUTLET (8).
See Figure 4a.
NWP-2500-5113
Figure 1
Figure 1a
1
3
2
1
Mounting
surface
hole
Figure 3
6
4
See Detail A
Detail A
DO NOT REMOVE
ZIP TIE
REV A
Figure 2
3/8” COMPRESSION
OUTLET
9/16-24 UNEF
(FOR 3/8” COMPRESSION
OUTLET )
4
5
Figure 4
7
8
8
6
9
5
Figure 4a
6
