Figure 3 – Newport Brass 9401 User Manual
Page 3

12/07/04

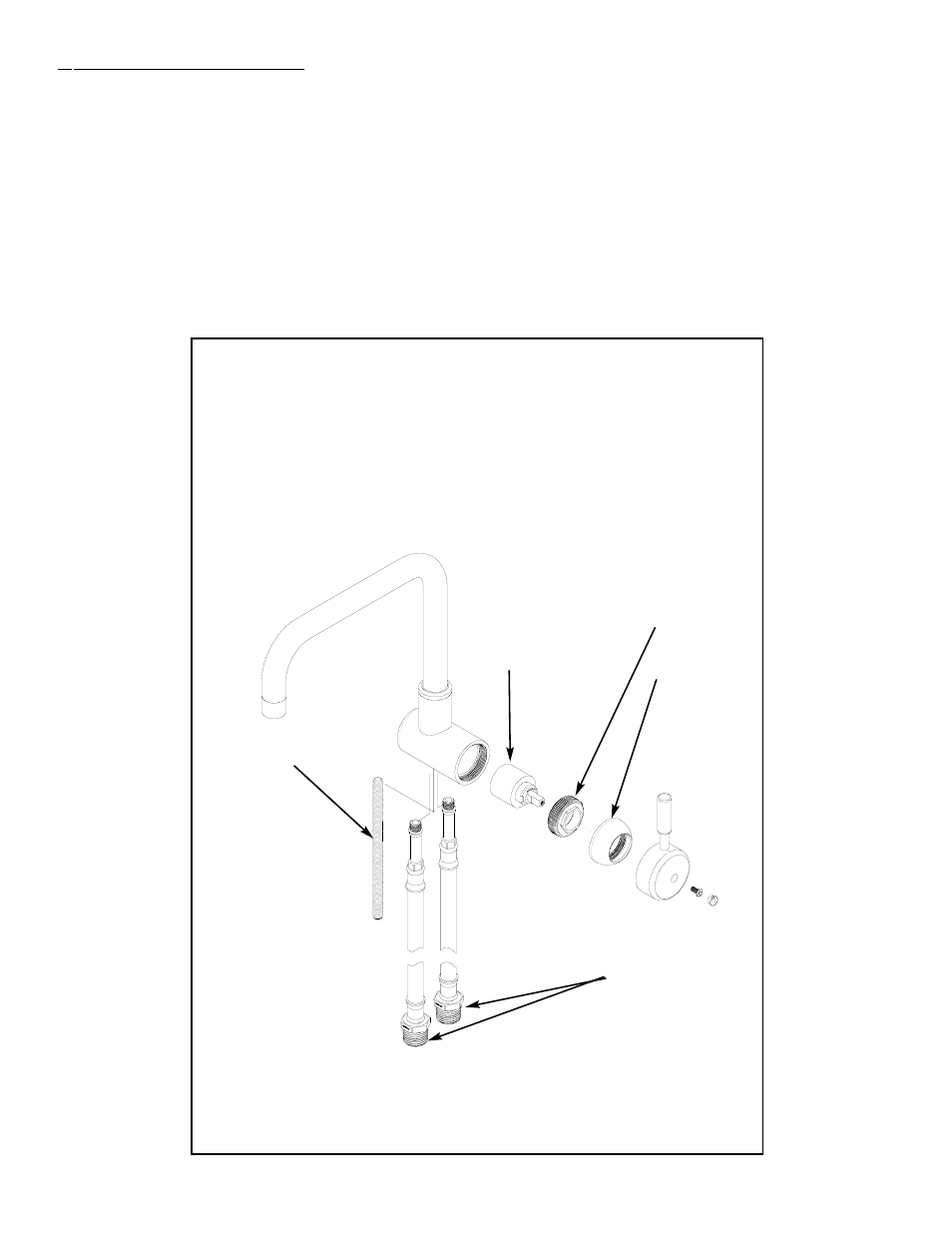

Figure 3
Mounting stud
10661
1/2 NPT
Troubleshooting and Maintenance
Difficult to rotate spout -
Remove handle assembly by unscrewing escutcheon CCW. Apply plumbers (non-petroleum based) grease to the o-rings on valve
body (1-064).
Difficult to rotate handle
Apply plumbers grease to handle swivel ball under escutcheon. Also an over tightened locknut (10357) will cause increased pressure
on the ceramic disk inside of the cartridge. Tighten locknut to a torque of 8-10 ft-lbs.
Cartridge replacement -
Remove handle assembly by unscrewing escutcheon CCW. Remove locknut by rotating nut CCW. Remove old cartridge and gasket
(1-064). Install new cartridge and gasket. Tighten locknut to a torque of 8-10 ft-lbs.
Single lever
cartridge
1-064
Escutcheon
Cartridge
retaining nut
