ISSUED:02-25-03 SHEET #: 095-9149-3 08-11-04 2 of 6
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
Description Qty. LCFS 100 LCFS100S
A base foot weldment 2 095-1152 095-4152
B main base weldment 1 095-1154 095-4154
C 75/100 mm LCD mount weldment 1 095-1156 095-4156
D main support tube 1 095-1157 095-4157
E mating base tube 1 095-1134 095-4134
F angled support tube 1 095-1158 095-4158
G M4 x .7 x 10 mm phillips screw 4 504-9012 520-2027
H M4 x .7 x 12 mm phillips screw 4 504-9013 504-2013
I M4 x .7 x 20 mm phillips screw 4 504-9020 504-2014
J concrete anchor 4 590-0097 590-0097
K 10-32 x 1/4" set screw 12 500-1086 500-2017
L #14 x 1-1/4" wood screw 4 510-9157 510-9158
M .375 x .5 x .38 retaining spacer 4 590-1160 590-1160
N .198 x .313 x .437 retaining spacer 4 590-5005 590-5003
O 3/32" hex wrench 1 560-1034 560-1034

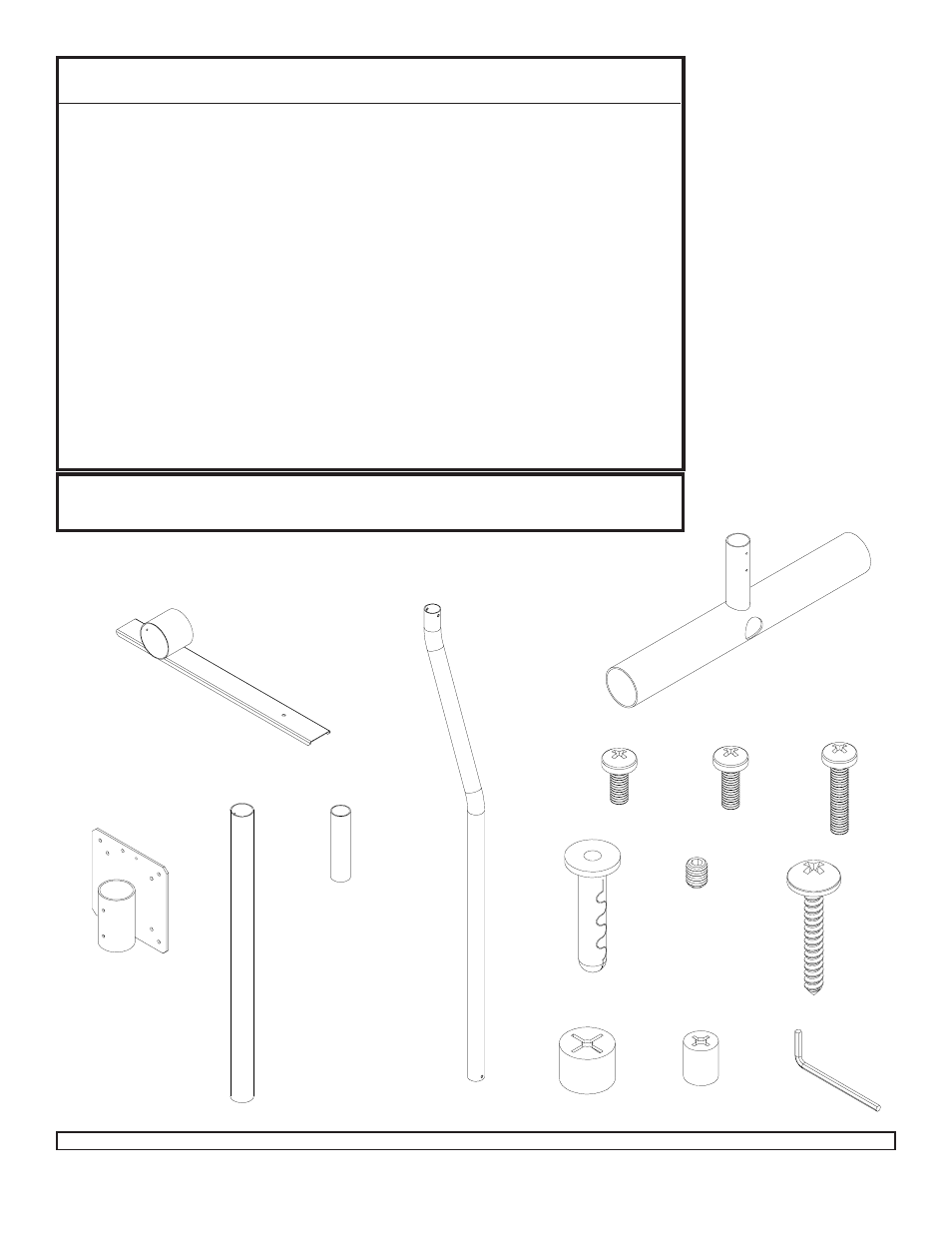

Parts List
Note: Actual parts may appear slightly different than illustrated.
A
B
C D E
F
I G H
J K
M N O
L
IMPORTANT: This product is designed to accommodate LCD screens with a VESA ® 75 or
VESA 100 compliant mounting hole pattern.
