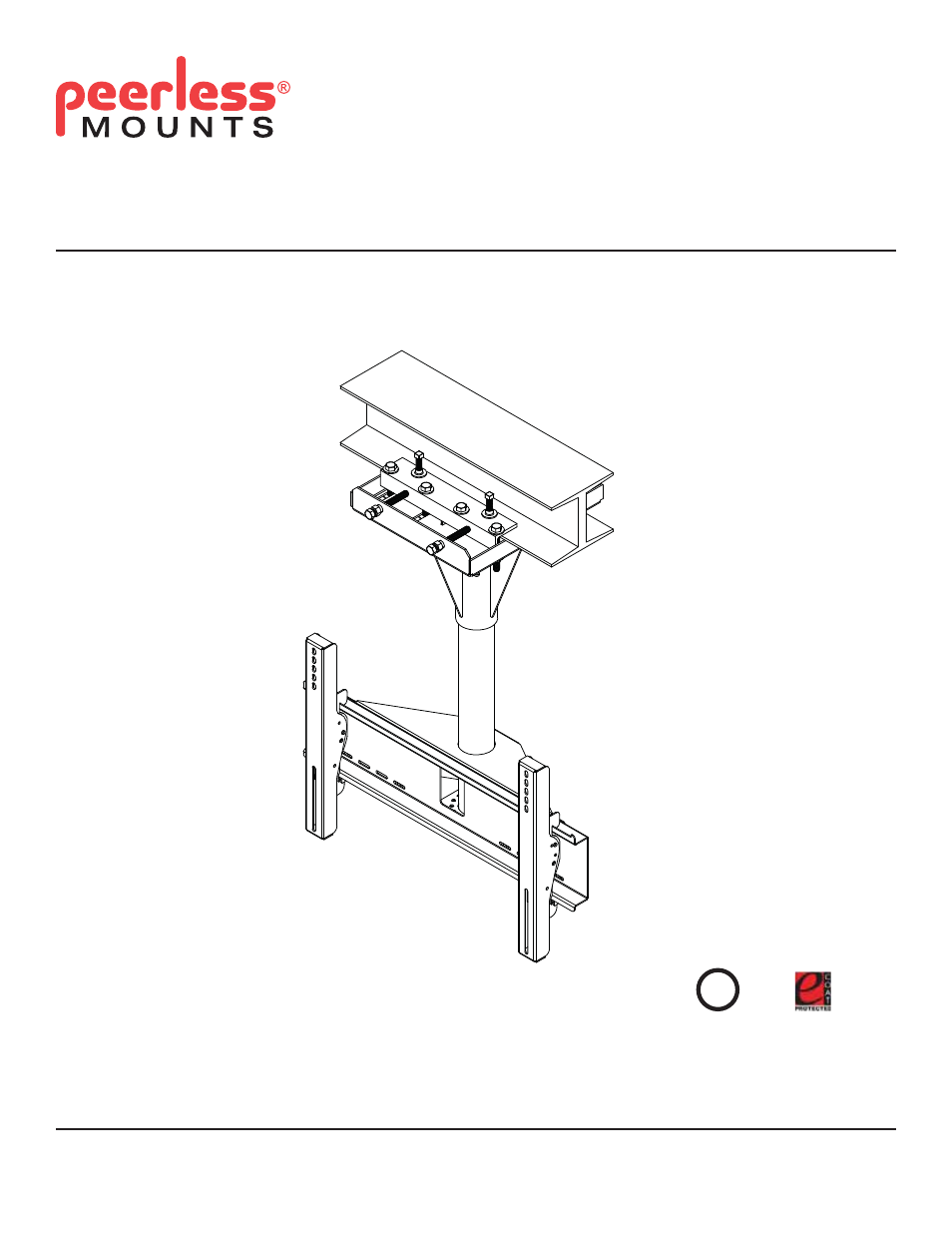

Installation and Assembly:
Wind Rated I-beam Tilt Mount for 32" - 65" Outdoor Flat Panel
Displays

Models: ECMU-01-I, ECMU-01-I-S, ECMU-02-I, ECMU-02-I-S

ECMU-03-I, ECMU-03-I-S, ECMU-04-I, ECMU-04-I-S

ISSUED: 06-22-10 SHEET #: 061-9055-6 01-15-11

Max UL Load Capacity: 200 lb (90.7 kg)

Max Wind Rating: 90 mph, elevation 200 ft, Category D

©

UL

US

C
