3 of 20 ISSUED: 10-01-07 SHEET #: 095-9272-5 09-02-11
C
AA
B G A

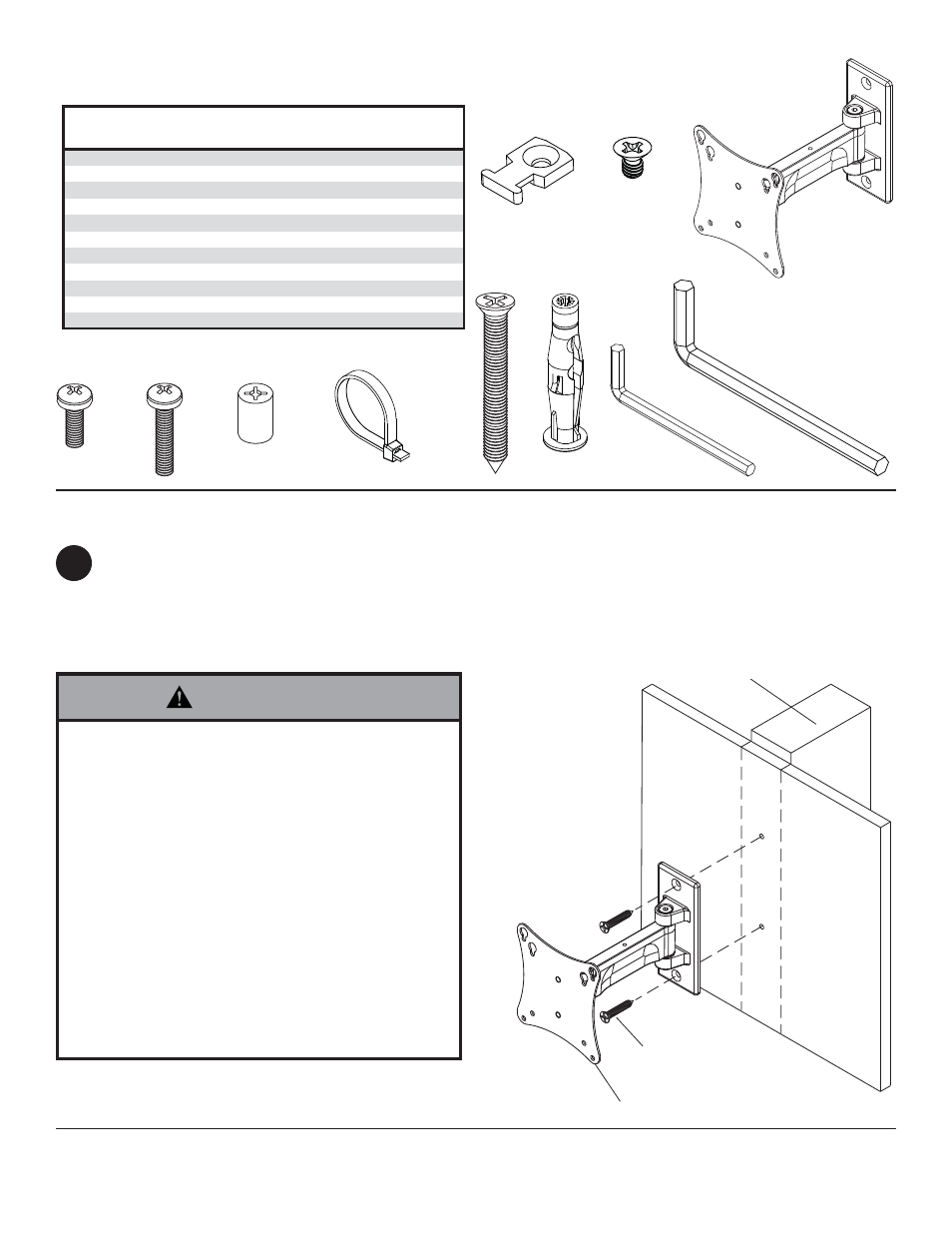

Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.
E
I
Installation to Wood Stud Wall
• Installer must verify that the supporting surface will
safely support the combined load of the equipment
and all attached hardware and components.
• Tighten wood screws so that wall plate is fi rmly
attached, but do not overtighten. Overtightening can
damage the screws, greatly reducing their holding
power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into
the center of the stud. The use of an "edge to edge"
stud fi nder is highly recommended.
• Hardware provided is for attachment of mount
through standard thickness drywall or plaster into
wood studs. Installers are responsible to provide
hardware for other types of mounting situations (not
evaluated by UL).
WARNING
Using a stud fi nder, locate and mark the edges of the wood stud used in mounting this product. Use of an edge to
edge stud fi nder is highly recommended. Use a level to draw a vertical line down the center of the stud. Use wall
plate as template to mark center of holes along the vertical line. Drill two 5/32" (4 mm) dia. holes 2-1/2" (64 mm)
deep. Attach wall arm assembly (AA) to wall using two #14 x 2-1/2" fl at head wood screws (D).
Skip to step 2.
1
D
WOOD STUD WALL
AA
H M
D F
Parts List
PP730 PP730-S
Description Qty. Part # Part #
AA wall arm assembly 1 095-P1711 095-4711
A M4 x 12 mm phillips screw 4 504-9013 504-2014
B M4 x 20 mm phillips screw 4 504-9020 504-2013
C retaining spacer 4 590-5005 590-5003
D #14 x 2.5" wood screws 2 520-1202 520-2165
E 5 mm allen wrench 1 560-9640 560-9640
F concrete anchors 2 590-0320 590-0320
G cable ties 1 560-9711 560-2004
H cable tie anchor 1 590-1290 590-1290
I 3/16" allen wrench 1 560-0071 560-0071
M 8-32 x 1/4" flat head screw 1 520-1622 520-2622
