5 of 13

ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13

Visit the Peerless Web Site at www.peerlessmounts.com

For customer care call 1-800-865-2112.

4

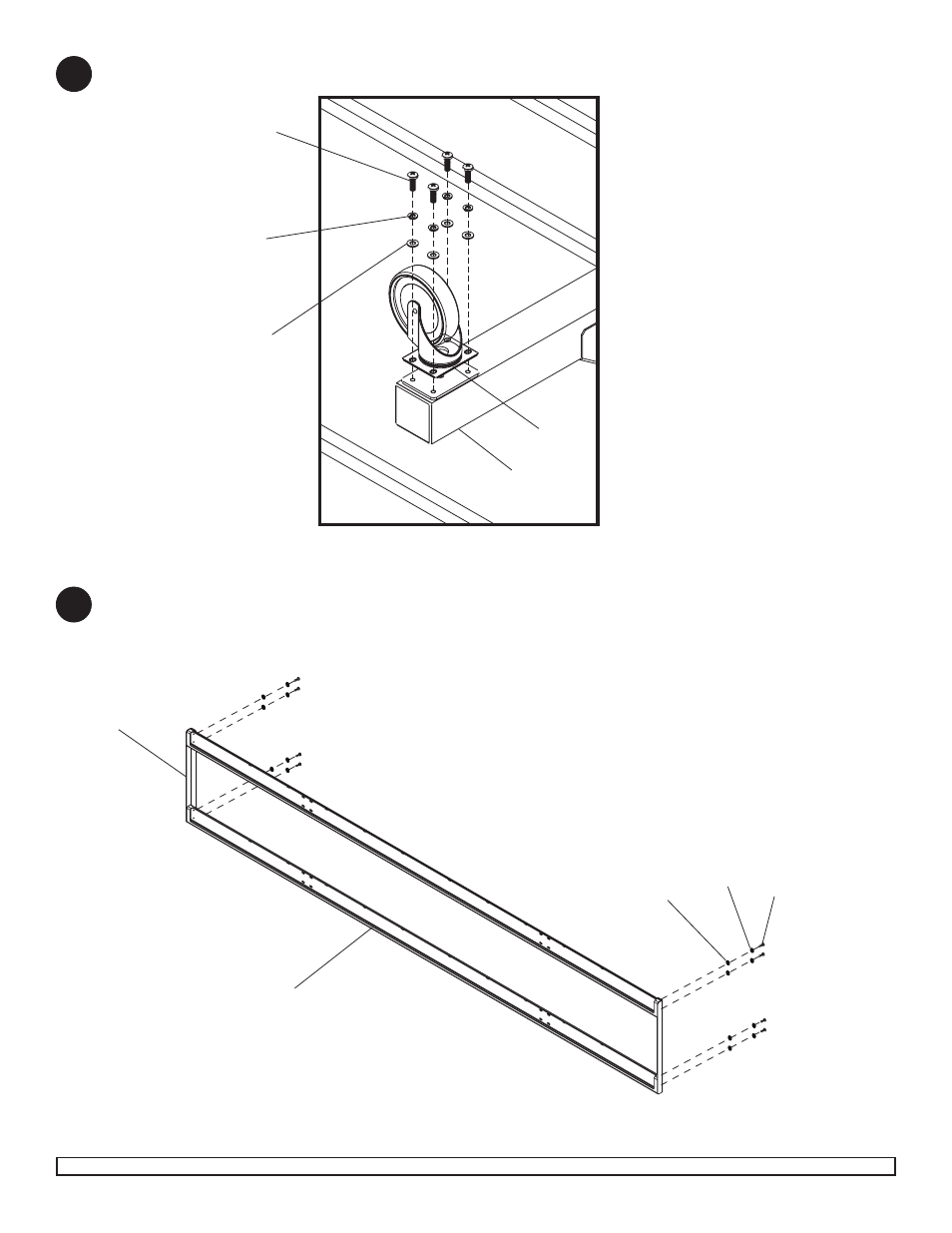

Attach four swivel casters (

E) to vertical supports (A) using sixteen M8 x 25 mm pan phillips screws (G),

split washers (

I) and 5/16" SAE flat washers (H).

G

I

H

A

E

5

Attach two rail brackets (

Y) together using two rail connection brackets (X) with eight M5 x 10 mm pan phillips

screws (

AA), lock washers (CC), and flat washers (BB).

X

Y

AA

BB CC
