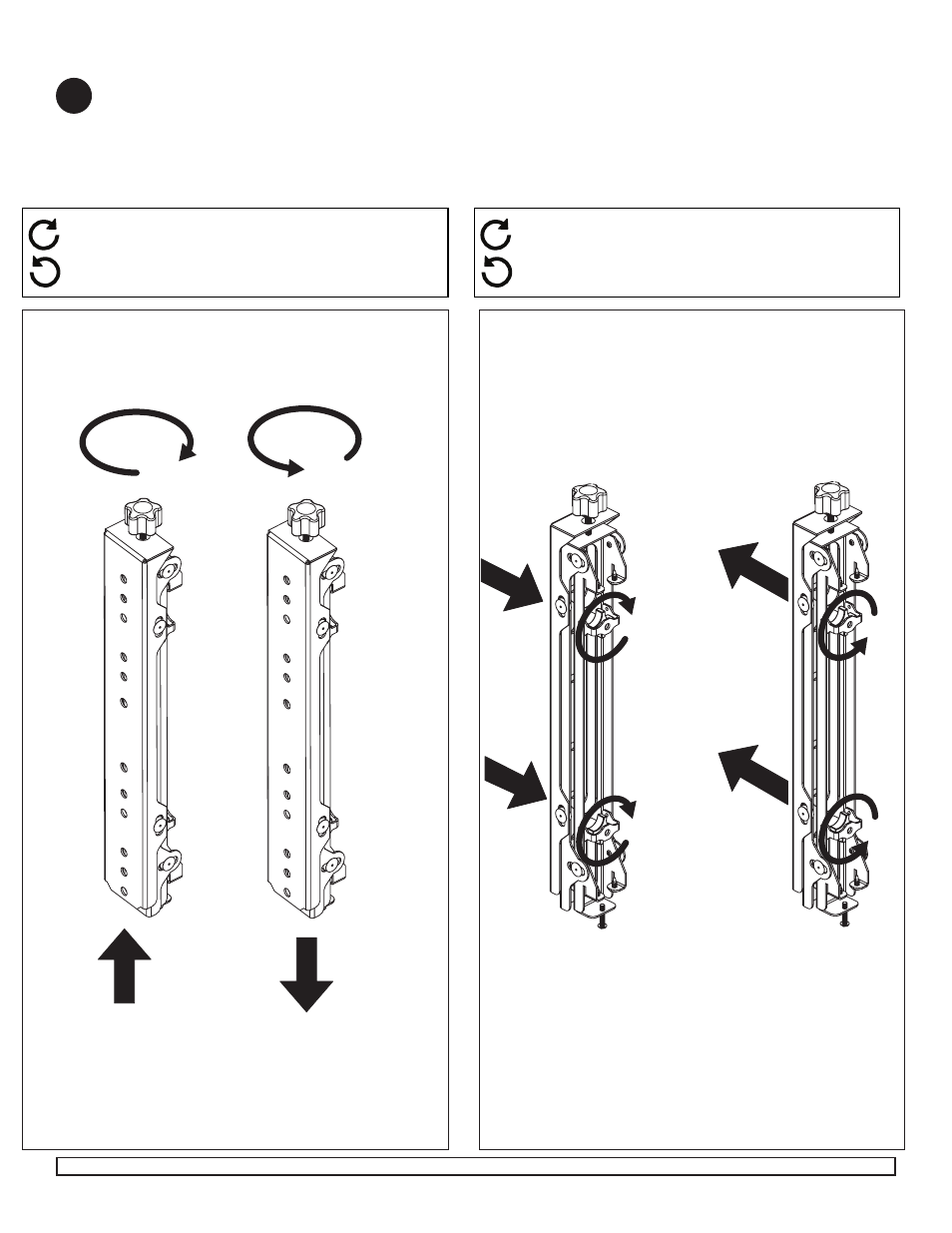

13 Use legend below to determine position of display.
NOTE: Each knob can be adjusted independently for fine tuning angle adjustments.
Turn knobs CLOCKWISE to raise display height. Turn knobs CLOCKWISE to push out display.
Turn knobs COUNTER-CLOCKWISE to lower display height. Turn knob COUNTER-CLOCKWISE to pull in display.
UP DOWN IN OUT
KNOB
Adapter Bracket Adjustment
