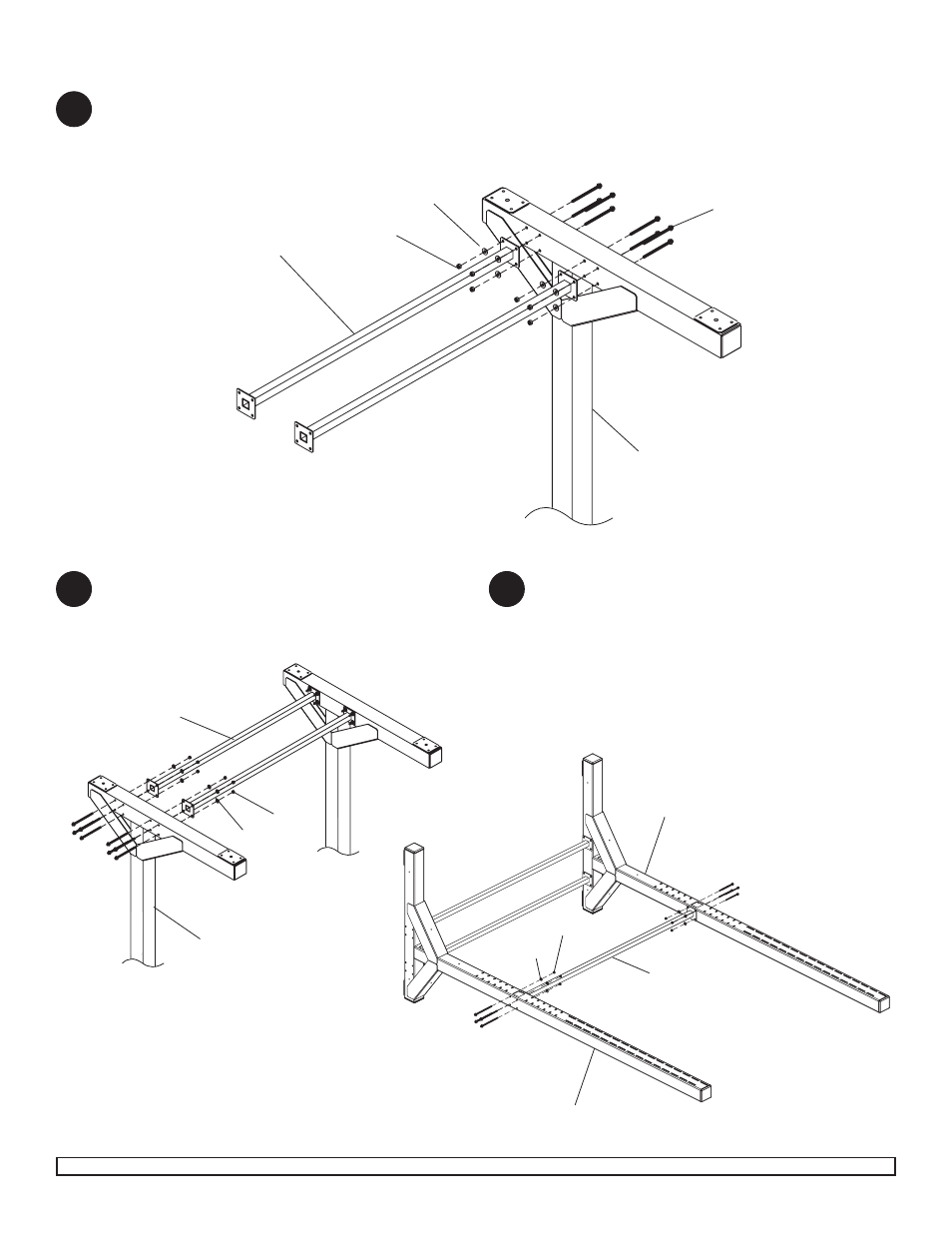

Assembling Cart
1
Attach two horizontal supports ( C) to vertical support (A) using eight 1/4-20 x 3.5" hex head screws (J),
1/4" SAE washers ( F) and 1/4-20 nylock nuts (K).
2
Attach horizontal supports ( C) to second
vertical support ( A) using eight 1/4-20 x 3.5" hex
head screws ( J), 1/4" SAE washers (F) and 1/4-20
nylock nuts ( K).
3
Attach horizontal support ( C) to vertical supports (A)
using eight 1/4-20 x 3.5" hex head screws ( J),
1/4" SAE washers ( F) and 1/4-20 nylock nuts (K).
A
C
J
F
K
A
C
J
F K
A
C
J
F
K
A
