12 of 14 ISSUED: 08-24-12 SHEET #: 180-9038-2 10-30-12
HDMI-
OUT
Plug extension cord (not included) into power adapter. 14
EXTENSION CORD
COMPONENT
CABLE

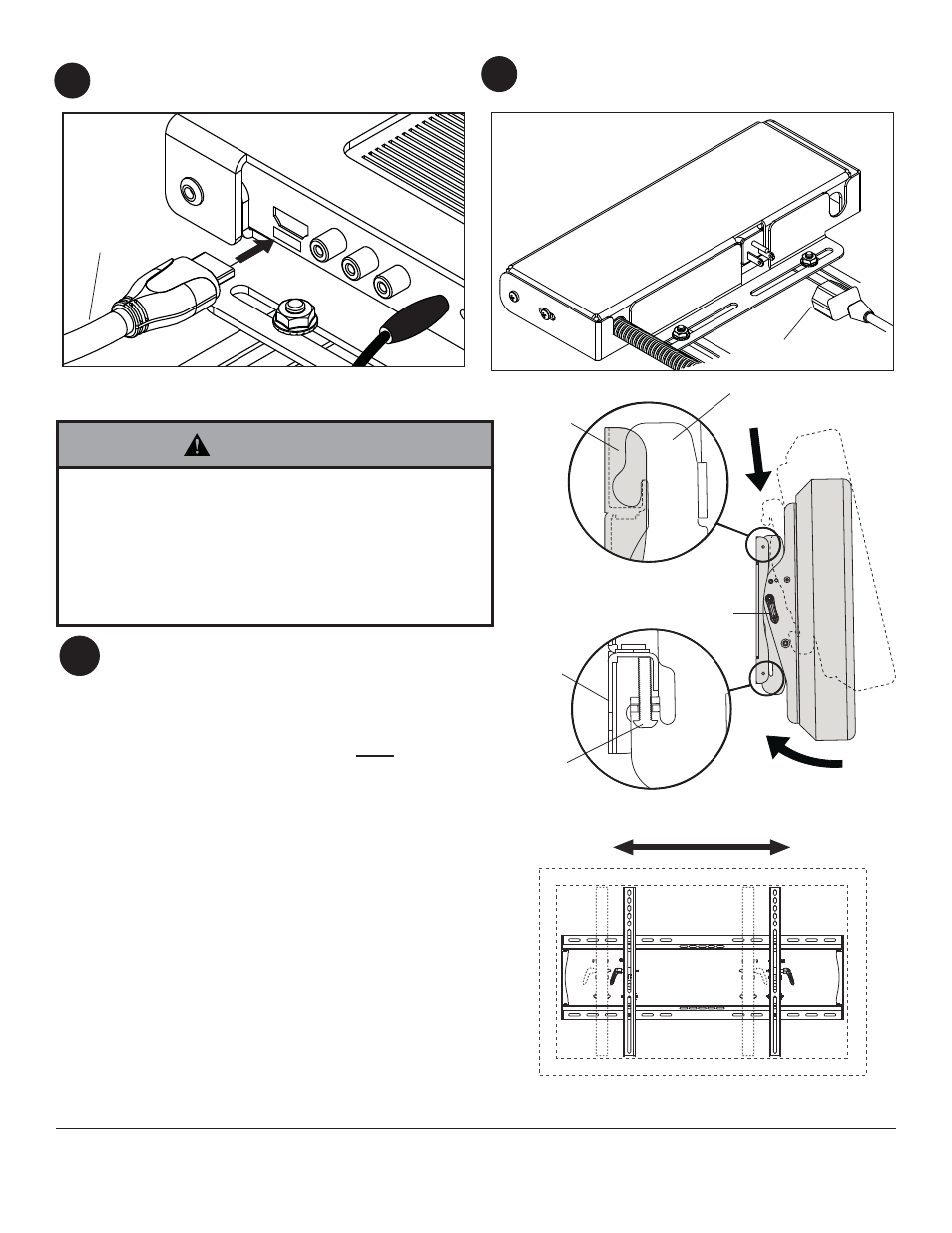

Plug the component cable(s) from your display
(HDMI shown) into the wireless receiver. 13
fi g 15.2
SAFETY/
SECURITY
SCREW
CROSS SECTION
DETAIL 4
A
B & C
B & C
A
fi g 15.1
RATCHET
HANDLE
Tension Adjustment of Ratchet Handle: Adjust
tension in tilt brackets (B & C) by rotating ratchet
handle. NOTE: If obstruction prevents ratchet
handle from rotating, pull handle out while turning
will allow handle to reposition without tightening.
Release and turn handle to tighten or loosen.
Mounting Display: Ratchet handle must be in the
up or down position or interference will oCur while
hooking tilt brackets to wall plate (A). Slowly hook
tilt brackets (B & C) onto wall plate (A) and swing
display down as shown in fi g. 15.1. Tilt bracket
hooks must fully engage wall plate as shown in
detail 4. Using phillips screw driver or security
allen wrench (F), turn safety/security screws on tilt
brackets (B & C) clockwise till screw tip securely
contacts wall plate as shown in cross section.
Display Adjustment: Display can be adjusted
horizontally by loosening safety/security screws on
tilt brackets (B & C) three full turns. Adjust display
as shown in fi gure 15.2. Tighten safety/security
screws on tilt brackets till screw tip securely
contacts wall plate as shown in cross section.
Removing Display: To remove display from mount,
loosen safety screws, swing display away from
mount, and lift display off of mount.
15
Mounting and Removing Flat Panel Display
• Always use an assistant or mechanical lifting equipment
to safely lift and position the fl at panel display.
• Do not tighten screws with excessive force.
Overtightening can cause damage to mount. Tighten
screws to 40 in. • lb (4.5 N.M.) maximum torque.
• Be careful not to pinch fi ngers when pushing display from
the bottom.
WARNING
