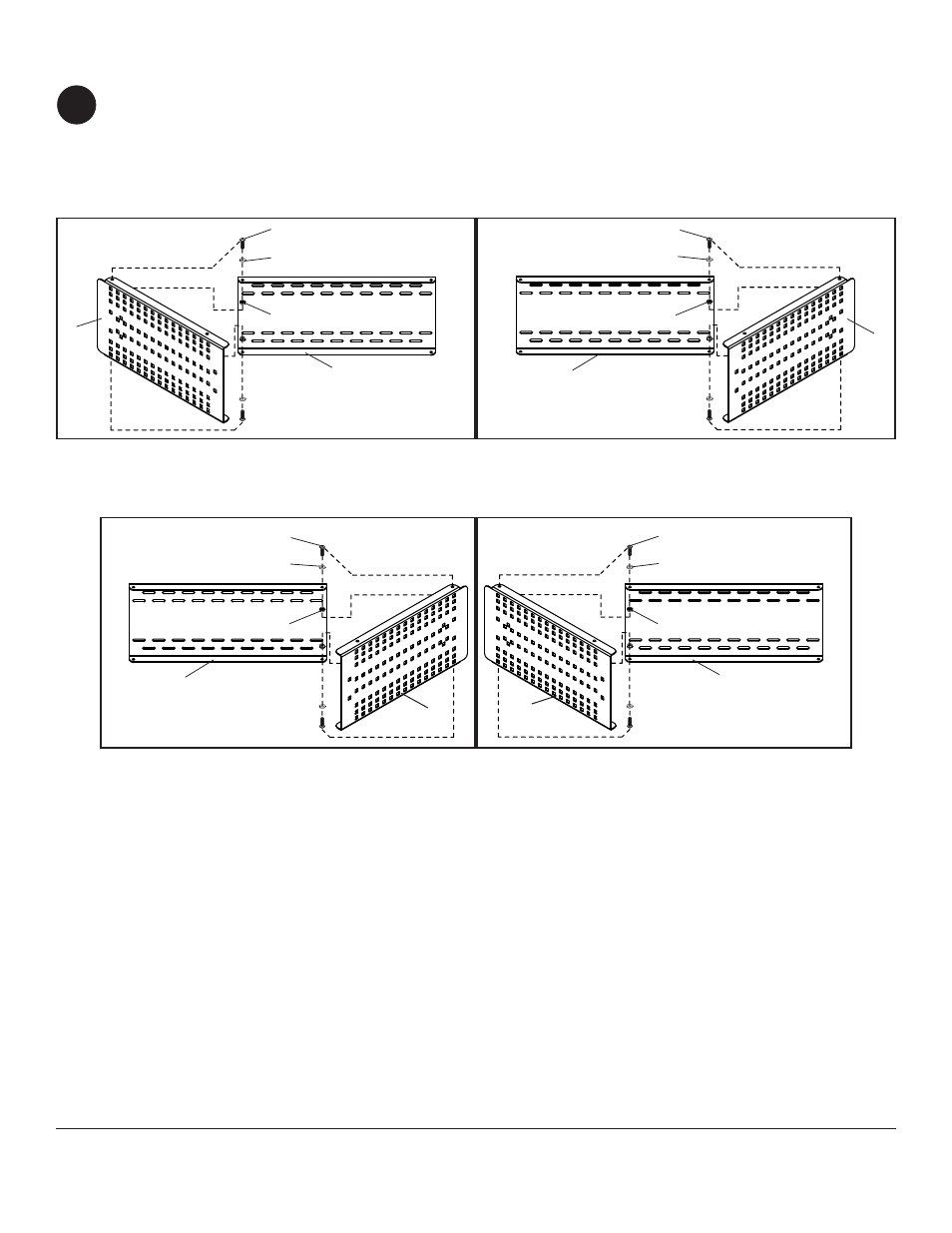

Attaching Interface Plate
Attach interface plate (A) to wall plate (B) using two sets of 1/4-20 x 1" round phillips head screws (G),
1/4" fl at washers (J) and 1/4-20 fl anged serrated locknuts (H) as shown in fi g 2.1 or 2.2 for interior corners
or fi g 2.3 or 2.4 for exterior corners. Repeat for opposite interface plate.
NOTE: Be sure top flange of interface plate (A) rests on top flange of wall plate (B).
NOTE: Do not fully tighten fasteners. 2
G
J
H
B
A
G
J
H
A
B
fig. 2.1 fig. 2.2
LEFT INTERIOR CORNER RIGHT INTERIOR CORNER
G
J
H
B
A
G
J
H
A
B
fig. 2.3 fig. 2.4
LEFT EXTERIOR CORNER RIGHT EXTERIOR CORNER
