Installation and Assembly:
Flat Panel Corner Mounting Accessory
for 32" – 60" LCD and Plasma Screens
Features
CM50, CM50-S
CM60, CM60-S
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com

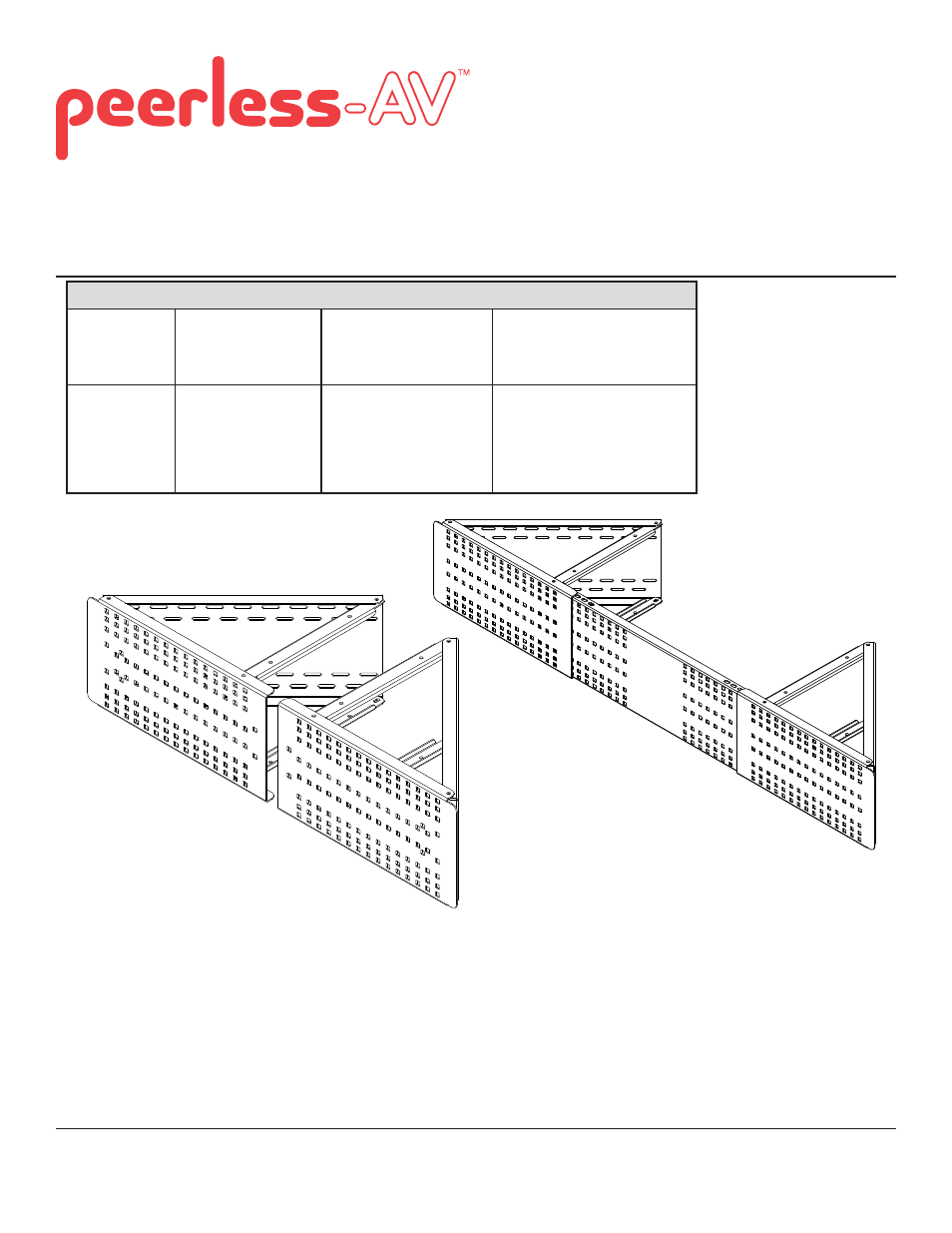

• Allows screen to fit in corner where space is limited
• CM50(-S) wall units expand to support compatible flat/tilt wall mounts for
screens from 32" – 50"
• CM60(-S) includes additional support plate to accommodate compatible
flat/tilt wall mounts for screens from 40" – 60"
• Wall units accommodate speakers when used with smaller screens (wall
unit maybe visible with some smaller screens)
• Accessory shelf available for A/V components (sold separately)
• Mounts to wood studs, concrete, cinder block
Model Screen Size Range Compatibility
CM50, CM50-S 32"-50"
SF640/ST640
PF640/PT640
SF650/ST650
PF650/PT650
ONE-TP (2-plate configuration)
CM60, CM60-S 40"-60"
SF640/ST640
PF640/PT640
SF650/ST650
PF650/PT650
SF660/ST660
PF660/PT660
ONE-TP (3-plate configuration)
Maximum Load Capacity
175 lb (79.4 kg)
200 lb (90.8 kg)
