7 of 10 ISSUED: 08-10-09 SHEET #: 139-9011-2 04-29-10

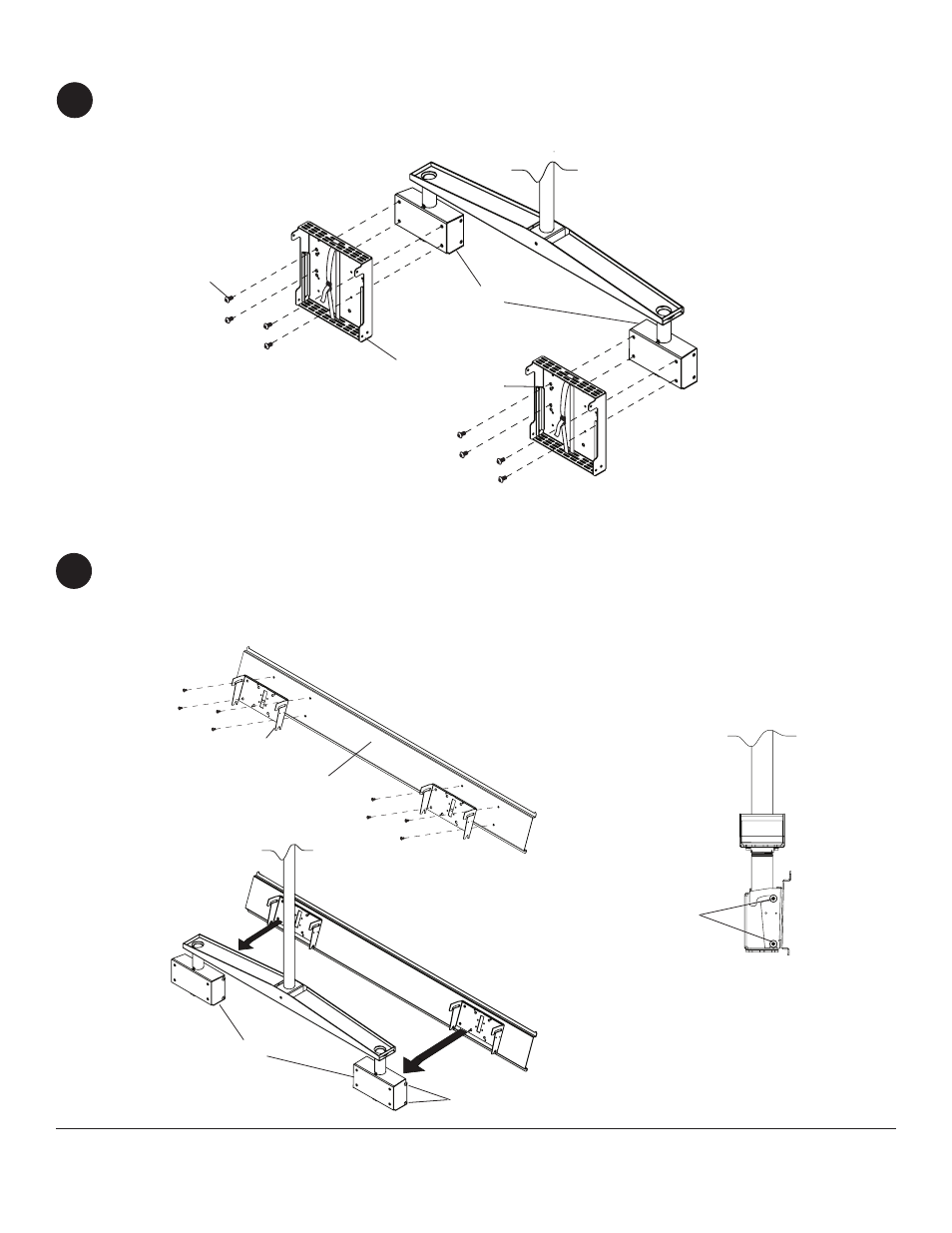

Attach two adapter box (supplied with DSX750) to ceiling arm box ( H) using four M10 screws
(supplied with DSX750) per box as shown below.
NOTE: Use DSX750 instructions to complete installation of adapter box (supplied with DSX750).
Attaching DSX750 To Ceiling Arm Boxes (Optional)
4
Attach two tilt brackets ( I) to adapter plate (Q) using eight M10 x 15 mm penta-pin screws (L) and tighten with
M10 penta-pin tool ( M) as shown in figure 5.1. Hook tilt brackets onto screws of ceiling arm boxes (H) as shown in
figure 5.2. Adjust tilt to the zero degree tilt position as shown in figure 5.3 and tighten eight M10 x 15 mm penta-pin
screws ( L) with M10 penta-pin tool (M).
Attaching Adapter Plate And Tilt Brackets To Ceiling Arm Boxes
5
fig. 5.1
fig. 5.2
L
I
Q
H
L
fig. 5.3
L
H
M10 SCREWS
(SUPPLIED WITH DSX750)
ADAPTER BOX
(SUPPLIED WITH DSX750)
