Jk m or l – Peerless-AV HLGP432-C450-SM-Q10 - Installation User Manual

Page 5

5 of 5

ISSUED: 05-25-10 SHEET #:125-9113-3 09-15-11

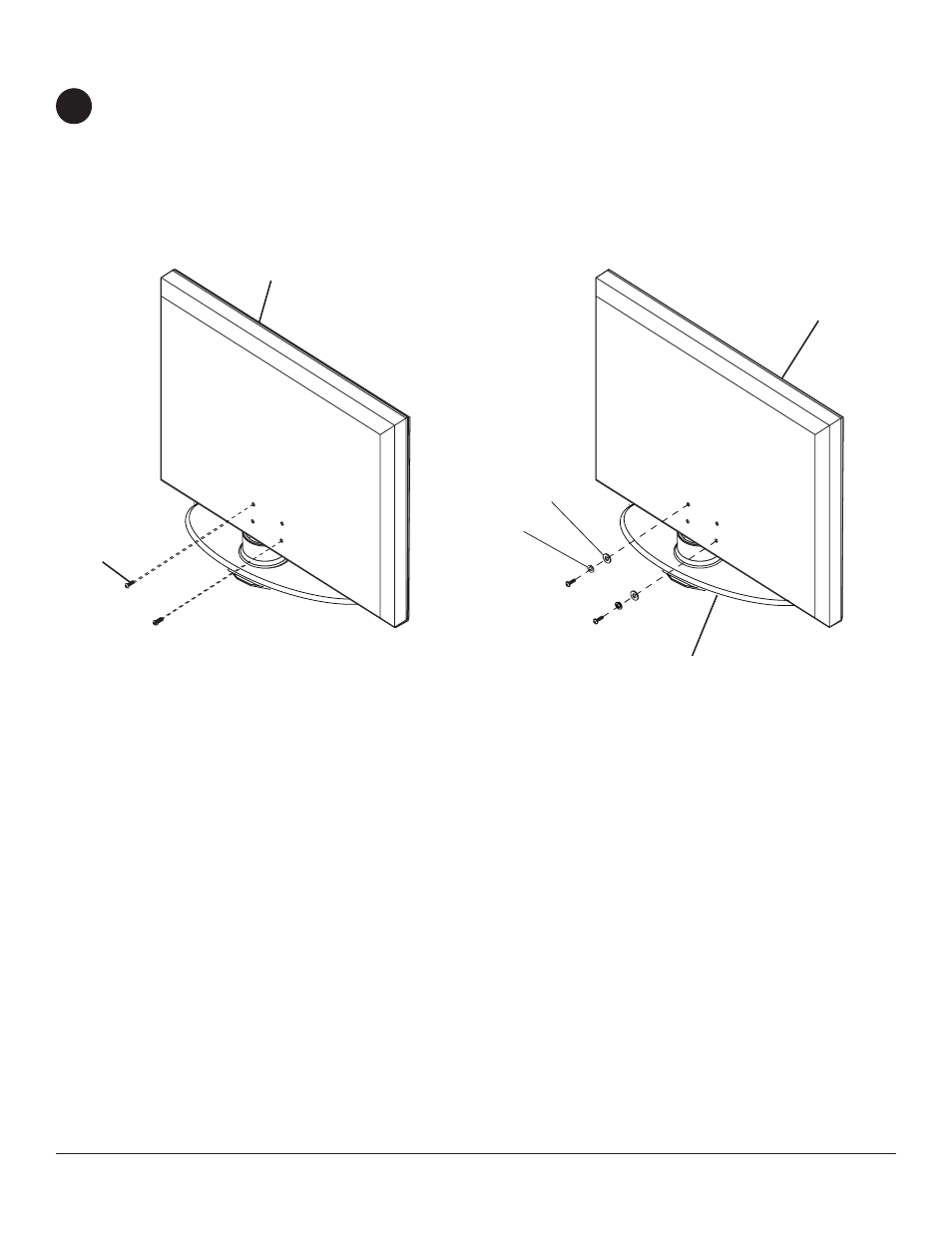

fig 6.1

fig 6.2

DISPLAY

DISPLAY BASE STAND

NOTE: Display and base stand may appear

different than illustrated

NOTE: Screws are installed at a diagonal.

Installation of Security Screws for Base to Display Attachment

M or L

Thread two M4 x 16 phillips pan trilobe screws (

G) to top left and bottom right attachment holes as shown in fig.

6.1. Remove the two M4 x 16 phillips pan trilobe screws (

G) and attach display to base stand

using two M4 x 16

mm socket pin serrated washer head screws (

L) or M4 x 12 mm socket pin screws (M), #8 split lock washers (J),

and M4 flat washers (

K).

NOTE: Use screws supplied with the display as a length reference when choosing screws (M or L).

Tighten with 4 mm security allen wrench (

N). Use TV supplied screws for remaining holes
