ISSUED: 08-25-09 SHEET #: 090-9189-6 07-31-12
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
2 of 7
Note: Read instruction sheet before you start installation and assembly.
Parts may appear slightly different than illustrated.
B F e
G
tools Needed for Assembly
• drill
• 1/4" drill bit
• 5/8" open box wrench
• phillips screwdriver
• 3M™ Rubber & Vinyl 80 Spray Adhesive (generic
name: Contact 80 Neoprene Vinyl Spray Adhesive)
This product can be found at hardware and craft stores,
as well as on the 3M website: http://solutions.3m.com/.
Accessory
• ACC939 - 1/4-20 x 2 1/4" replacement carriage
bolts (Contact Customer Service)
• ACC943 - Installation Template (plate only)
H I J
Installation Option 1 (Fasteners) Pages 3 and 4
Installation option 2 (Adhesive Strips) Pages 5 and 6
Installation of Security Screws for Base/Screen Assembly Page 7
A
C D

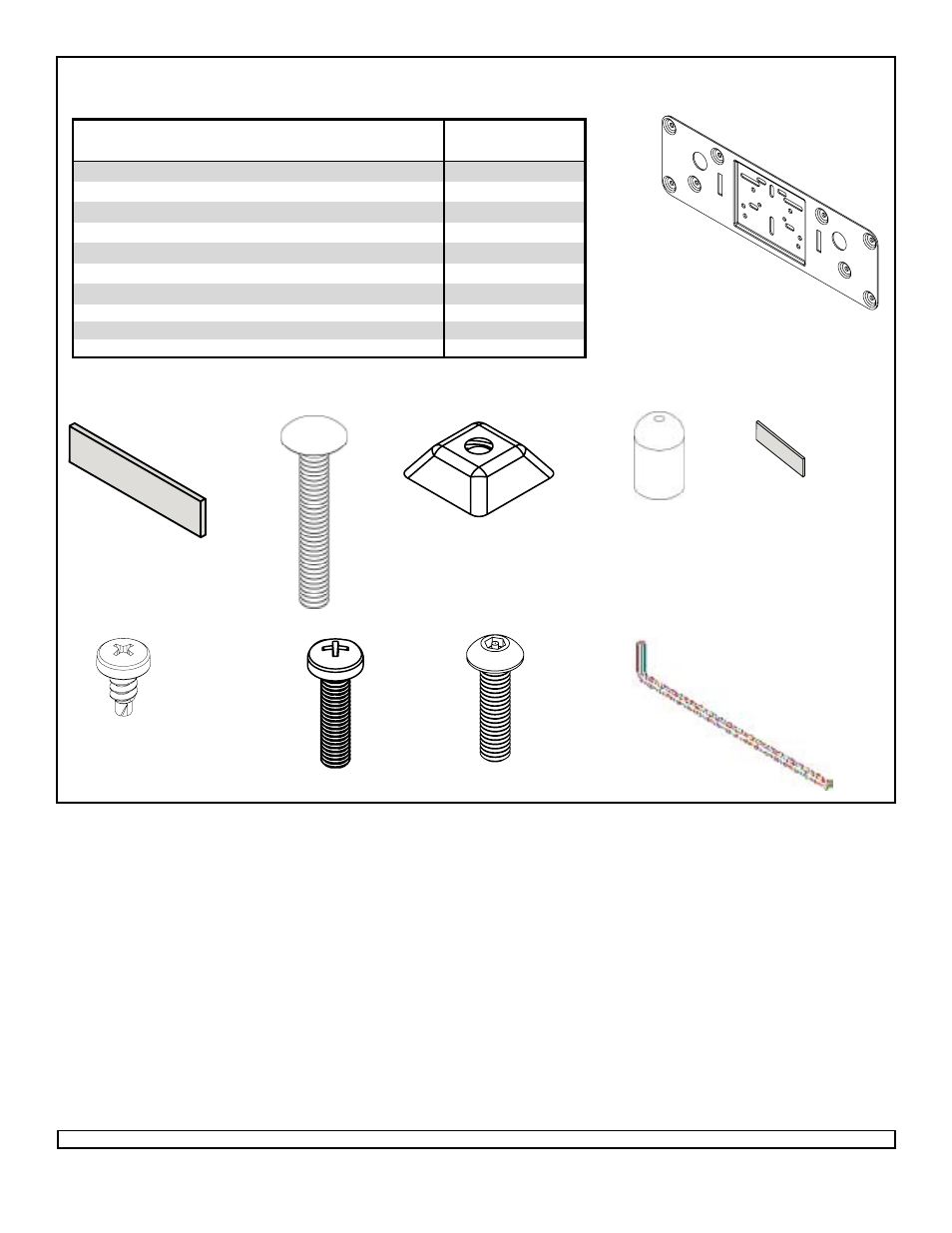

Parts List
HLG452-SM HLG452-SM-Q10
Description qty part # qty part #
A lock-down plate 1 090-1757 10 090-1757
B adhesive strip 4 570-0017 40 570-0017
C 1/4 - 20 x 1 3/4" carrage bolt 2 520-1017 20 520-1017
D 1/4 - 20 sloped nut 3 530-0035 23 530-0035
e plastic cap 2 590-1294 20 590-1294
F rubber pad - 3/16 x 1" x 3/4" 6 590-1159 60 590-1159
G # 10 x 3/8 phillips pan TEk screw 4 520-2612 40 520-2612
H M4 x 16 phillips pan trilobe screw 2 520-2621 20 520-2621
I M4 x 16 security screw 2 520-1087 20 520-1087
J 4mm security allen wrench 1 560-9646 3 560-9646
