13 of 13 ISSUED: 04-24-08 SHEET #: 055-9256-9 11-21-11
11
CEILING INSTALLATION WALL INSTALLATION
(EXCEPT FOR EXC MODELS)
DD
DD

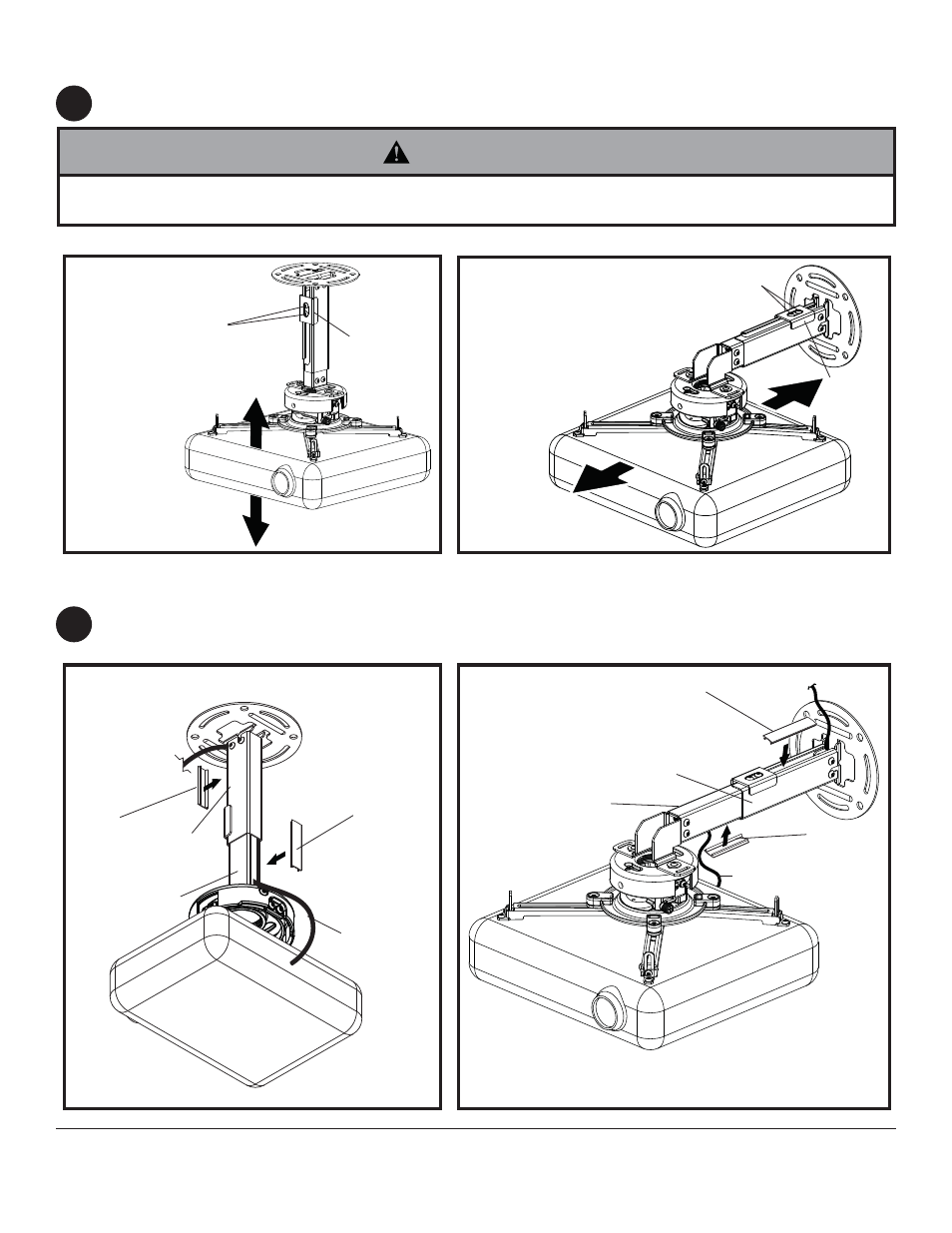

Adjusting Mount Extension
• On ceiling installations, clamp plate adjustment screws support weight of projector when fully tightened. Weight of
the projector will need to be supported if clamp plate screws are loosened.
While supporting the weight of the projector, loosen clamp plate screws half a turn and position projector to the
desired extended position. Retighten clamp plate screws securely.
CLAMP PLATE
SCREWS
CLAMP PLATE
SCREWS
Cut cable covers (LL) to the length of inner channel (CC) and outer channel (BB) openings, leaving space for
cables if routed through channels. Snap cable covers (LL) into openings as shown.
12
CABLES
CUT TO
LENGTH OF
OPENING
LL
CUT TO
LENGTH OF
OPENING
LL
CABLES
CEILING INSTALLATION WALL INSTALLATION
(EXCEPT FOR EXC MODELS)
CUT TO
LENGTH OF
OPENING
LL
CUT TO
LENGTH OF
OPENING
LL
BB
CC
BB
CC
Install Cable Covers
© 2011, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
WARNING
