12 of 13 ISSUED: 04-24-08 SHEET #: 055-9256-9 11-21-11

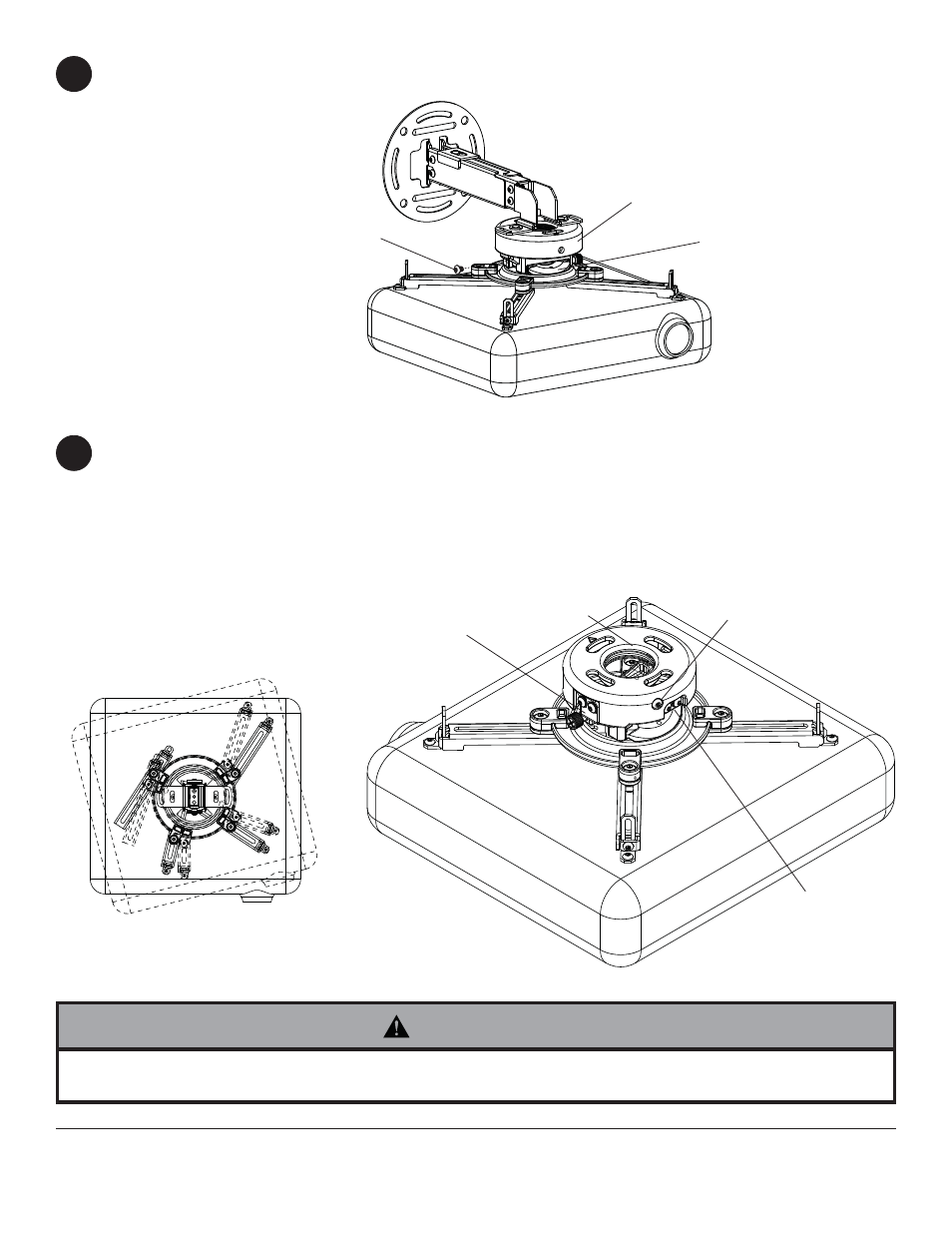

To adjust yaw (swivel): Loosen screw on projector mount assembly (A) indicated below until projector mount can
be rotated. Rotate mount to desired position and retighten screw.
To adjust pitch (forward and backward tilt): Using 4 mm security t-wrench (L) (security adjustment models) or a
phillips screwdriver (non-security adjustment models), loosen two screws for pitch adjustment on projector mount
assembly (A) indicated below. Tilt mount to desired position and retighten screws.
To adjust roll (side to side tilt): Using 4 mm security t-wrench (L) (security adjustment models) or a phillips
screwdriver (non-security adjustment models), loosen two screws for roll adjustment on projector mount assembly
(A) indicated below. Tilt mount to desired position and retighten screws.
Projector Alignment
20° (±10°) SWIVEL
SWIVEL A D J U S T M E N T
TOP VIEW
10
MOUNT ASSEMBLY
NOT SHOWN FOR
CLARITY
IMPORTANT: For security installations, insert one #10-32 x 1/4" socket pin screw (E) through projector mount
assembly (A) and into connection block as shown. Tighten screw with 4mm security t-wrench (L).
9
CONNECTION BLOCK
A
E
A
SCREWS FOR PITCH
ADJUSTMENT
SCREW FOR SWIVEL STOP
SCREWS FOR ROLL
ADJUSTMENT
• Do not loosen adjustment screws to the point they become disengaged from the mount. Weight of the projector
should be supported in case of accidental disengagement.
WARNING
