Installation & Assembly - Solid•Point ™ Wall Mount with Tilt and Swivel
IMPORTANT! Read entire instruction sheet before you start assembly and installation.
Model: PS 1

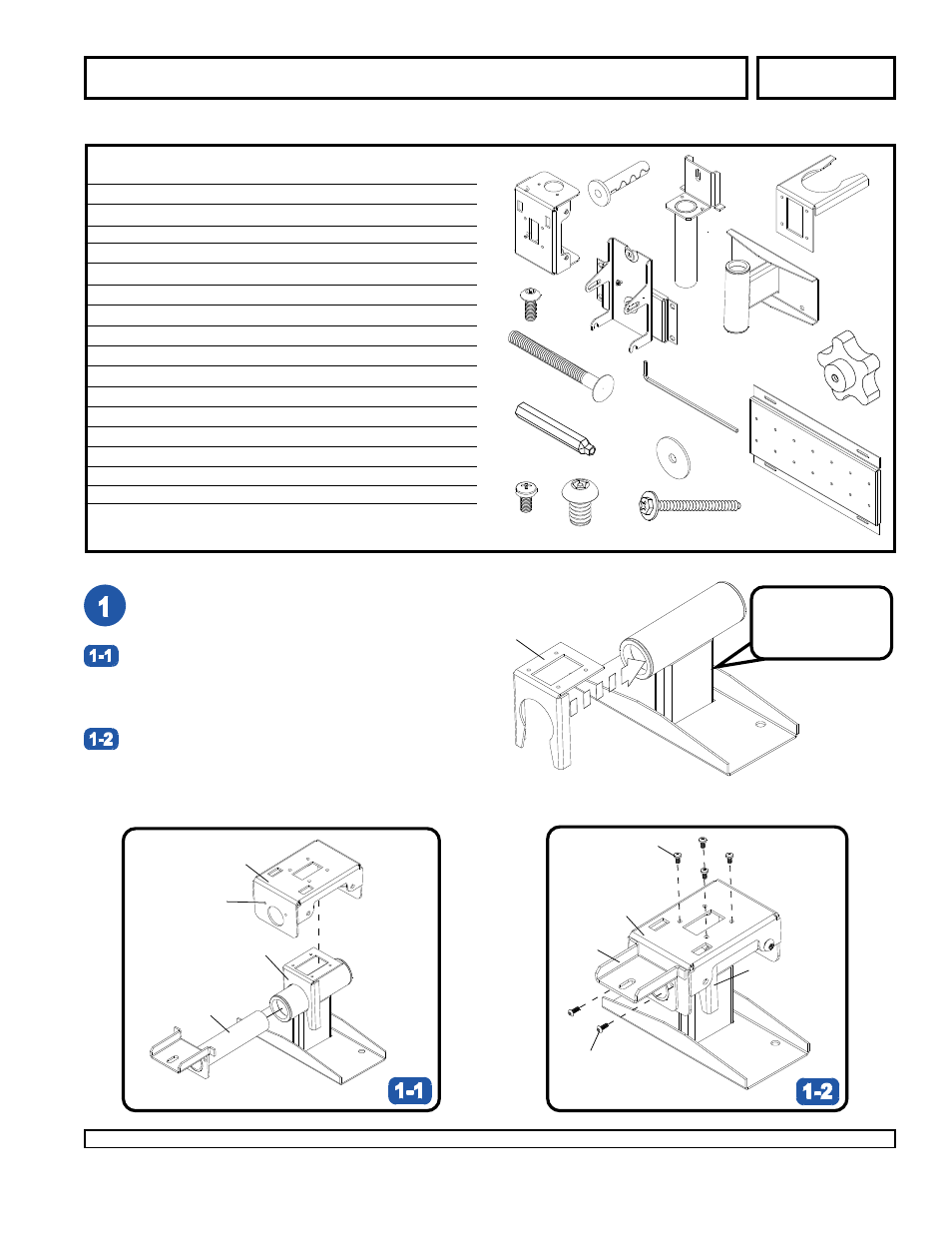

Place swivel lock bracket (I) on wall arm assembly (J)
as shown to the right.
Place rotation box (A) with threaded holes up over
wall arm assembly (J). Insert tilt pivot retainer
assembly (B) through rotation box (A) and wall arm
assembly (J).
Secure rotation box (A) to swivel lock bracket (I) using
four M5 x .8 x 10 mm phillips screws (H). Align holes
in tilt pivot retainer assembly (D) with holes in rotation
box (B) and secure with two 10-32 x 1/2" socket pin
screws (C) as shown.
Before you start make sure all parts
listed are included with your product.
PART # QTY. DESCRIPTION
A 200-1434 1 rotation box
B 200-1877 1 tilt pivot retainer assembly
C 520-1055 2 10-32 x 1/2" socket pin screw
D 200-0288 1 pitch roll assembly
E 520-1001 1 carriage bolt 3/8"-16 x 3"
F 520-9263 12 M10 x 1.5 x 15 mm penta-pin screw
G 590-1087 1 tilt adjustment knob
H 520-9250 4 M5 x .8 x 10 mm phillips screw
I 200-1311 1 swivel lock bracket
J 200-0342 1 wall arm assembly
K 520-9260 1 M10 x 2" penta-pin ™ driver
L 200-1338 1 wall plate
M 590-0097 4 concrete anchor
N 540-1008 4 fender washer
O 5SI-015-C03 4 wood screw
P 560-9646 1 4 mm security allen wrench
Parts List
Note: Some parts may appear slightly different than illustrated.
A
D
C
F
B
I
A
J
B
C
I
H
THREADED
HOLES
A
B
I
Note: Lay flat on sufrace for ease of assembly.
J
I
J
Hole in bottom of
rectangular tube
denotes bottom of
wall arm assembly.
K
J
H
N
O
M
P
