ISSUED: 08-1-12 SHEET #: 090-9125-10 6 of 6
Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800 865-2112

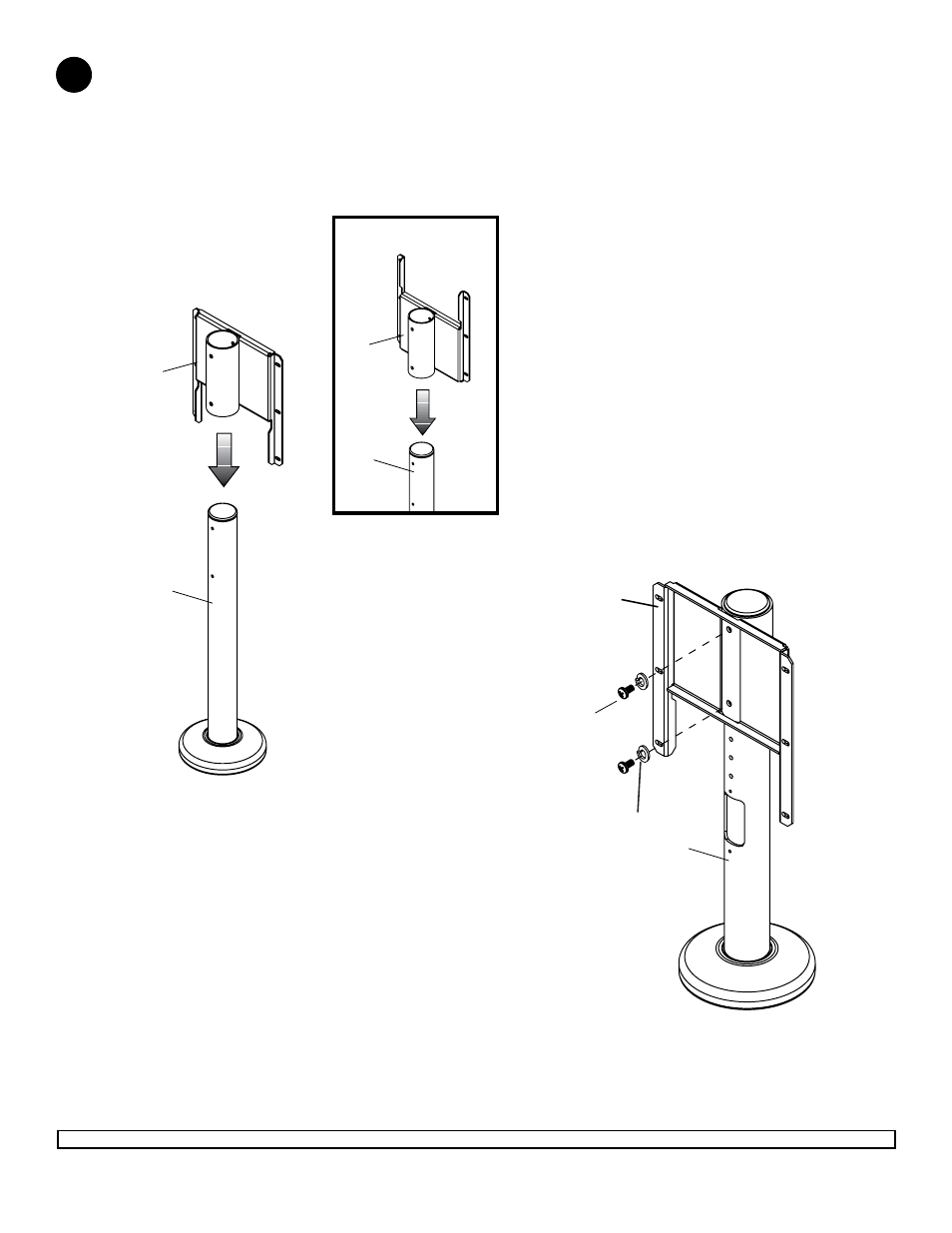

Note: Adapter plate support box (D) can be flipped either way to allow necessary screen clearance. For best
results, have screen close to desktop but not touching.
Adapter plate support box ( D) is adjustable up to 6" at 1" increments. Attach adapter plate support box (D) to support
tube ( A) as shown in fig 7.1. Fasten two 1/4-20 x 1/2" phillips screws (H) and two split washers (G) through adapter
plate support box ( D) and support tube (A), as shown in fig. 7.2.
fig. 8.1
A
fig. 8.2
H
8
D
SUPPoRtING SURFACe Not SHoWN FoR CLARItY
D
A
D
optional
A
G
