5 of 6 ISSUED: 08-28-02 SHEET #: 200-9417-3 12-02-04
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
E F
G
F
D
B
F
G
E

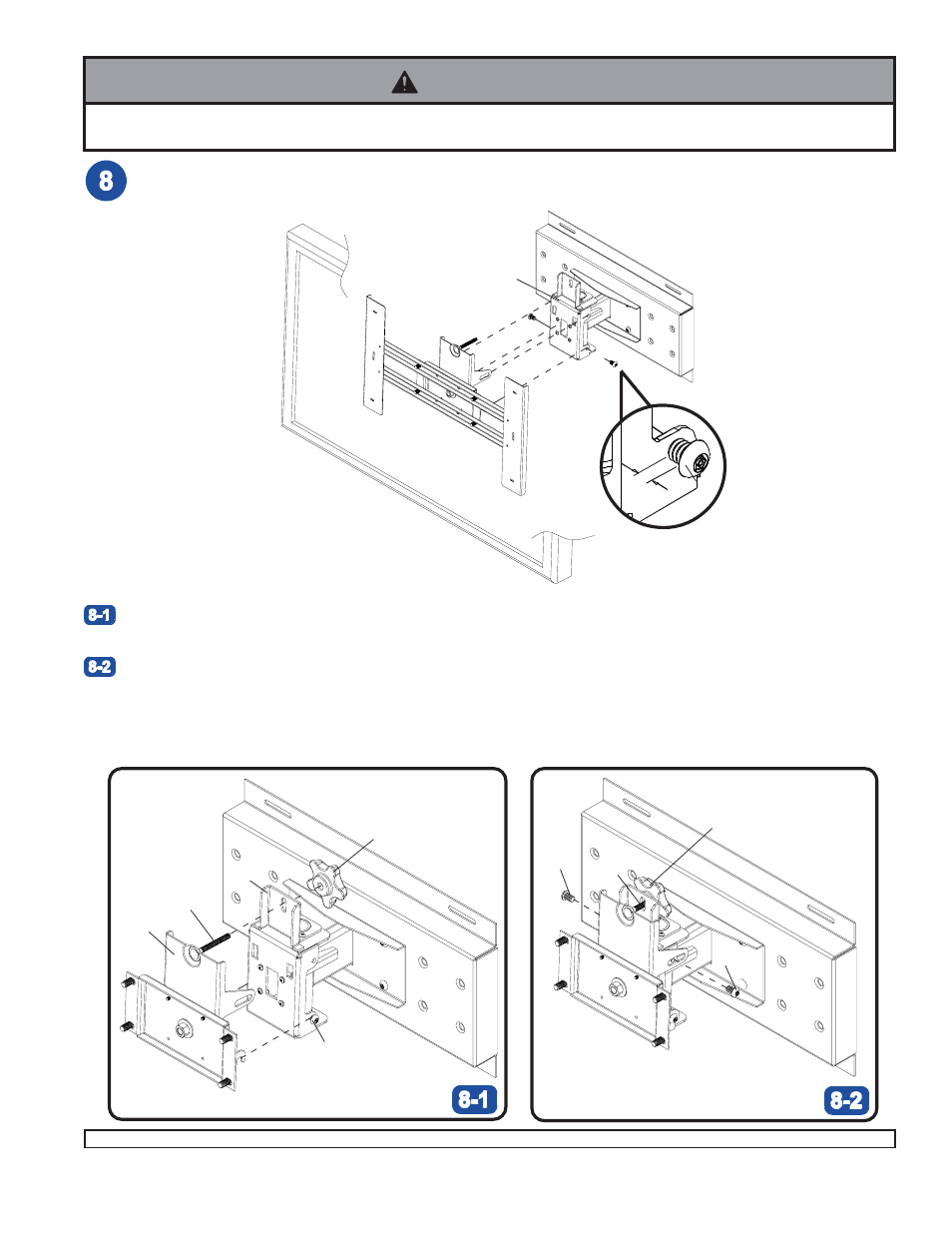

Insert two M10 penta-pin screws (F) into rotation box (A) as shown. Leave approx. 1/4” of exposed thread.
Hook pitch roll assembly (D) onto M10 penta-pin screws (F). Insert carriage bolt (E) into slot of tilt pivot retainer assembly
(B) as shown. Install tilt adjustment knob (G).
Install remaining two M10 penta-pin screws (F). HAND TIGHTEN all four M10 penta-pin screws (F) to allow for tilt adjust-
ment. Remove tape from carriage bolt (E). For tilt adjustment, gently push back on the top of plasma to relieve pressure on
knob. Adjust tilt to desired position and tighten tilt adjustment knob (G), then securely tighten all four M10 screws (F) using
penta-pin driver (K).
AS A FINAL PRECAUTION, CHECK ALL FASTENERS AND TIGHTEN SECURELY.
A
.25"
F
• Use an assistant or mechanical lifting equipment to safely lift and position the plasma TV.
WARNING
