Mounting Pattern for Attaching to the Desktop:
Models: 32LH200H, 32LH240H, 32LH250H, 32LH260H, 32LD310
PoINt 1 PoINt 2
tABLe toP

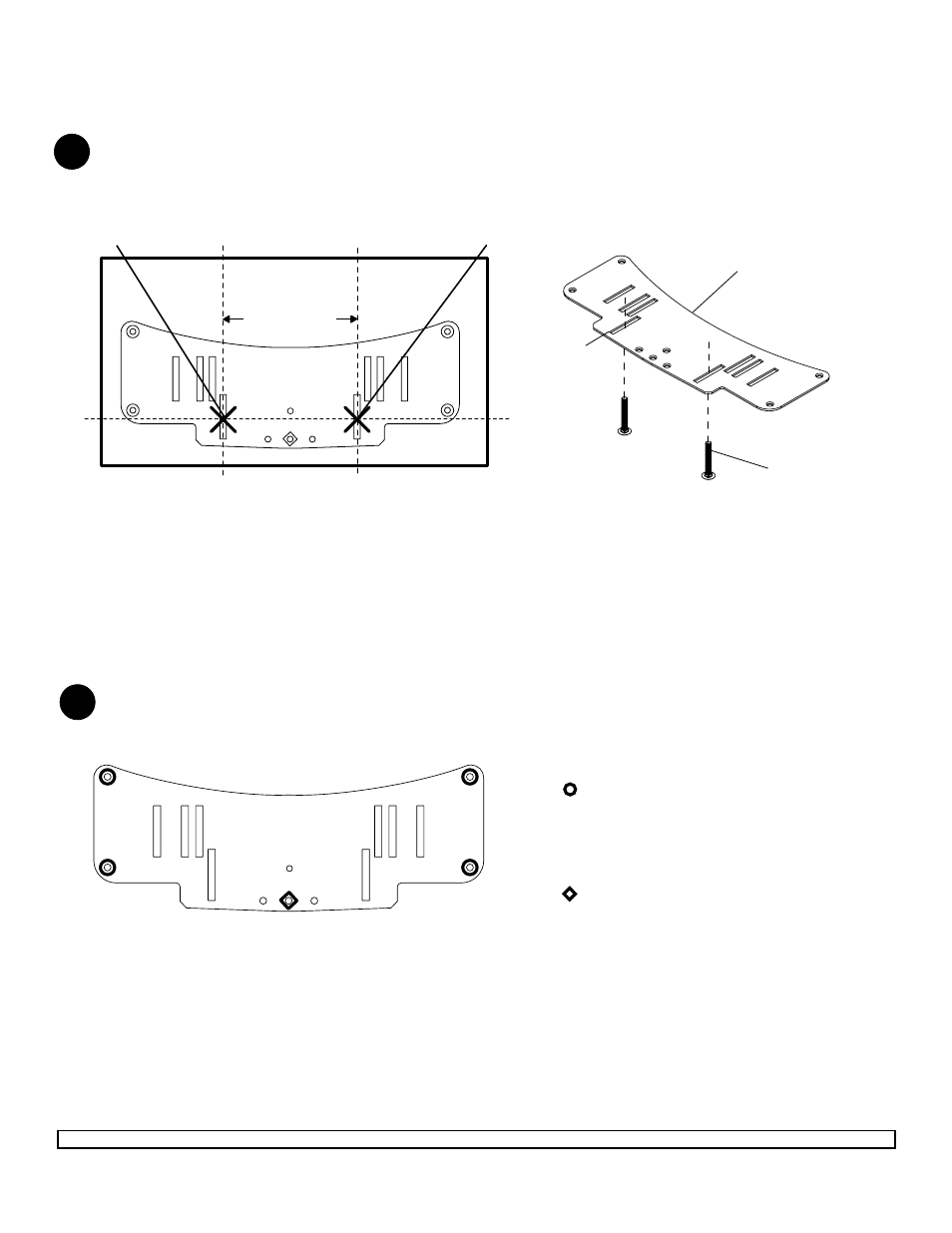

Use lock-down plate ( A) as a template to mark location of holes at point 1 and point 2, spaced 6.03" apart on
table. Drill two holes using a 9/32'' drill bit. Carriage bolts ( D) must be placed into slots as shown in fig 1.8 before
mounting lock-down plate to display.
Fig. 1.7
Fig. 1.8
6.03"
(153 mm)
SLotS
A
D
1
Four 10-32 X 3/8" undercut
flathead screw ( B)
One #10 X 3/8" undercut
flathead self drilling screw ( C)
Note: Do not over tighten screws
Note: Must tighten first
Note: Must tighten second
Mounting Pattern for Attaching to the Display Base:
Note: Before mounting lock-down plate to display base use detail 2 to determine mounting holes used in step 3.
Skip to step 3 Page 7
DetAIL 2
2
