Peterson VS-R StroboRack - Manual (Page 35)

35
5: Instrument - StroboRack
TM

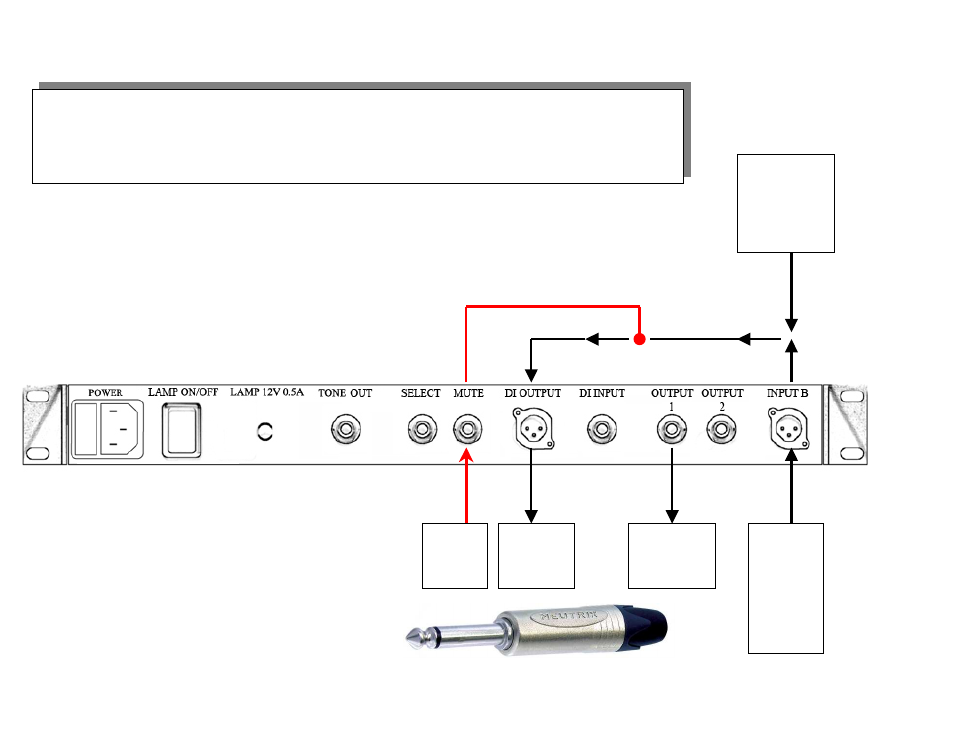

- PA (Example: Electro-Acoustic Guitar)
Signal
From Front
Panel Input
Jack A
TS*
Signal
From
Rear
Panel
Input
Jack B
TS*
To PA
Console
XLR
TRS
Mute
Switch
Notes:
Input Signal: Input A or B (A overrides B) Mono (TS)*
Output Signals: 1 Balanced (XLR), 1 Mono
Dual Footswitch mutes all outputs for silent tuning and remotely controls presets
To
acoustic
amp
*Input: Standard cable with mono (TS) ¼” plug
