10 ELECTRIC RETACTABLE UTILITY BED COVER INSTALLATION INSTRUCTIONS
Plug the green and blue 2-wire battery harness into the control
box.

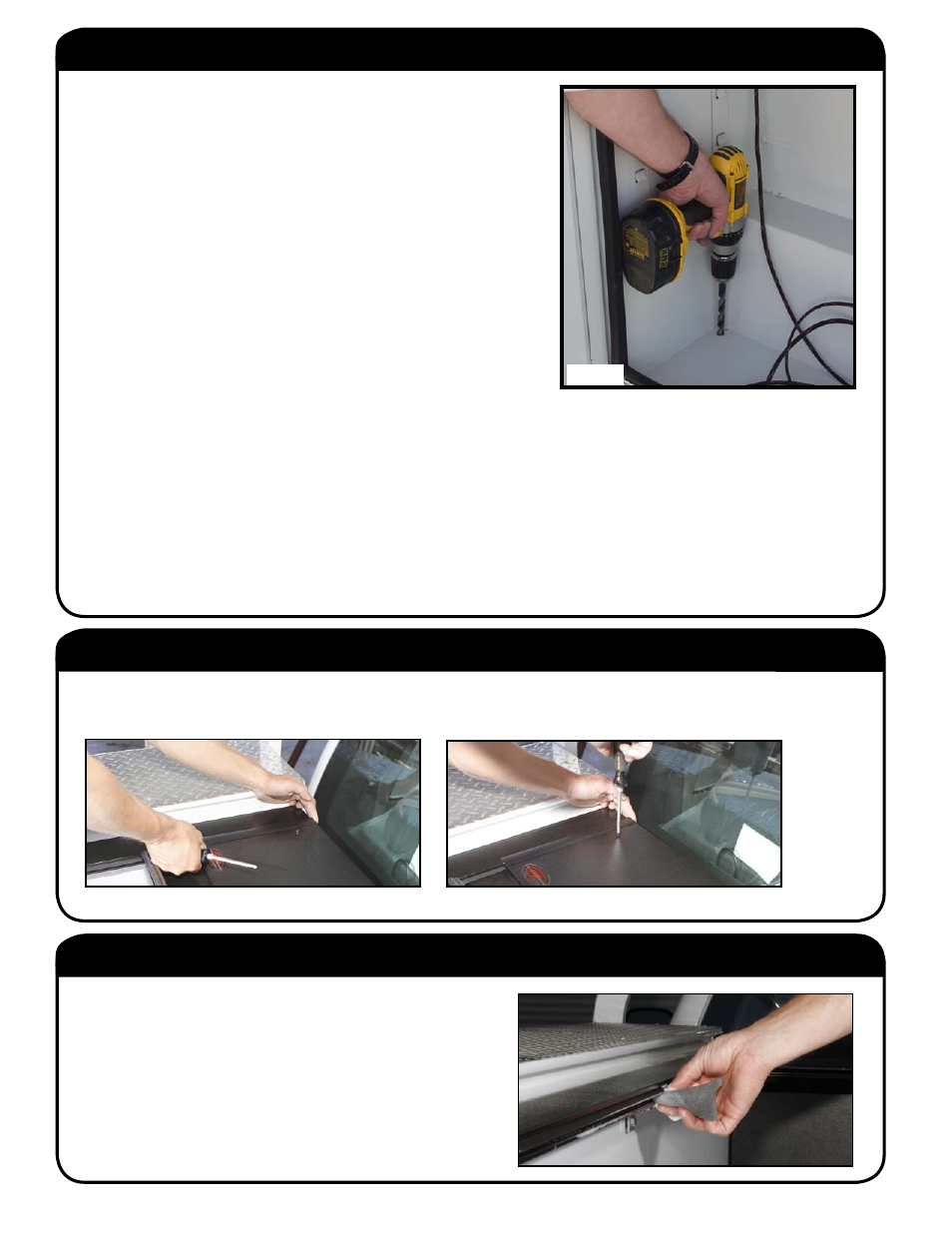

Drill a ½” hole in the bottom of the drivers side forward cabinet,
preferably in the forward innermost corner to keep the battery
wire harness neatly tucked out of the way (Fig. 11A)
Hole positions and wire harness routing will vary between
box manufactures and models.
Deburr the ½” hole on both sides of the cabinet.
Push wire harness through the hole.
Slice the rubber grommet, wrap around the harness and work
into the hole to protect the wiring from the metal.
(The Optional Manual Operation Switch should be routed at
the same time as the battery harness)
.
Route this wire harness along the frame and up into the battery
compartment.
Attach the wire harness using wire ties provided (keep away from hot surfaces).
Attach Red (+) wire to positive 12V battery block and the Black (–) to appropriate ground.
(Ring connectors provided may need to be cut down or replaced due to bolt and attachment variations found on
different vehicles.
Coil excess wiring and secure with a wire tie in the engine compartment.
Your Utility Bedlocker cover should run at this time. Check for correct operation by operating all switches
installed.
11. CONNECTING THE WIRES TO THE BATTERY
Fig. 11A
12. INSTALL THE TOP COVER
Install the top cover on the canister making sure it is fl ush with the horizontal rail. Use the 2-Black Top Cover
Screws.
Use the included 303 protectant to lubricate the sweep seal
and wear strip. This ensures the cover glides smoothly the
fi rst time it is very important to lubricate the seals on the rails.
You will need to periodically lubricate these seals throughout
the life of the cover. We recommend using the 303 Brand
protectant.
13. LUBRICATE THE RAILS
