702M12-W BULKHEAD MOUNTING

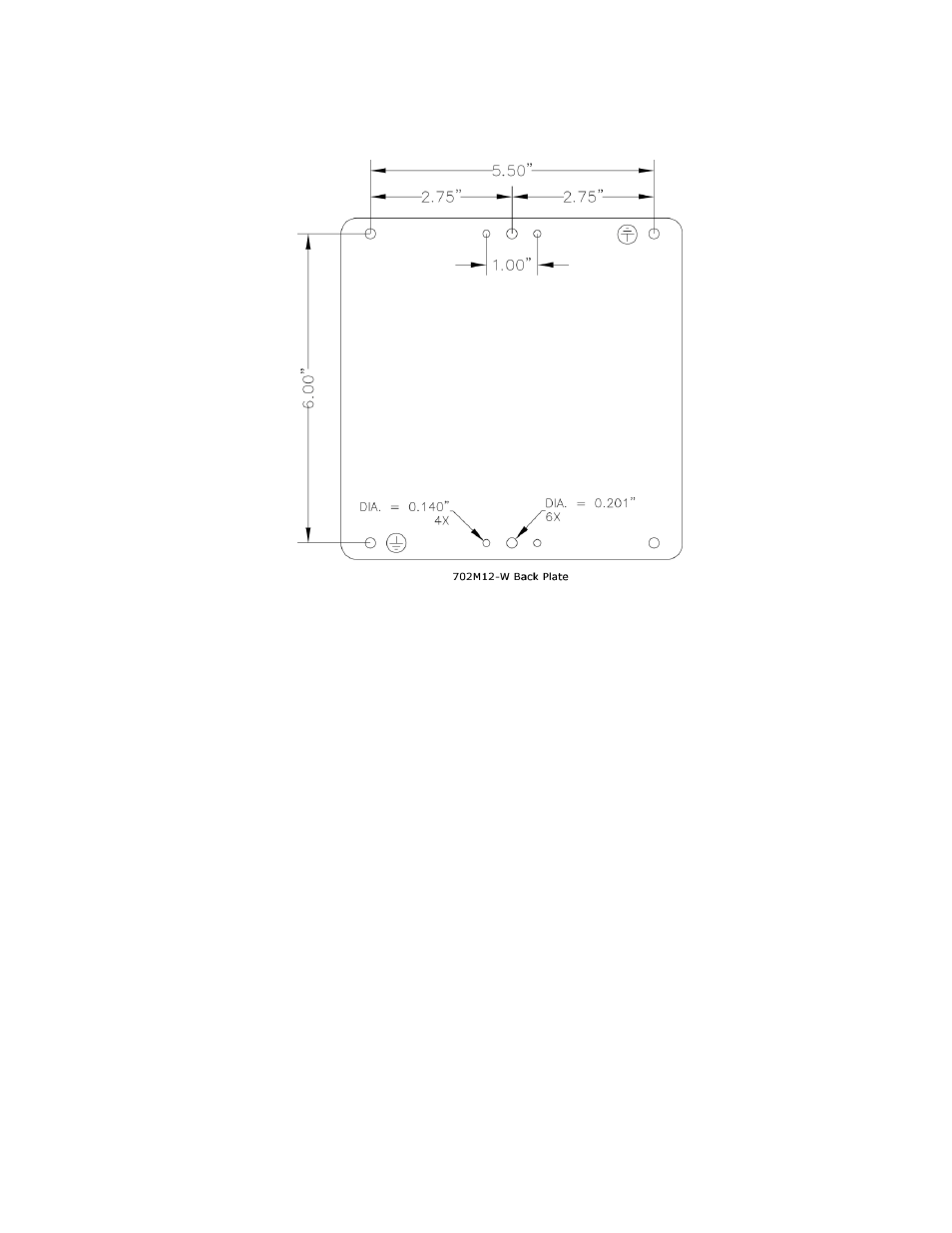

The following are the mechanical dimensions and drill hole placements to consider when mounting the
702M12-W Industrial Ethernet Switches:
