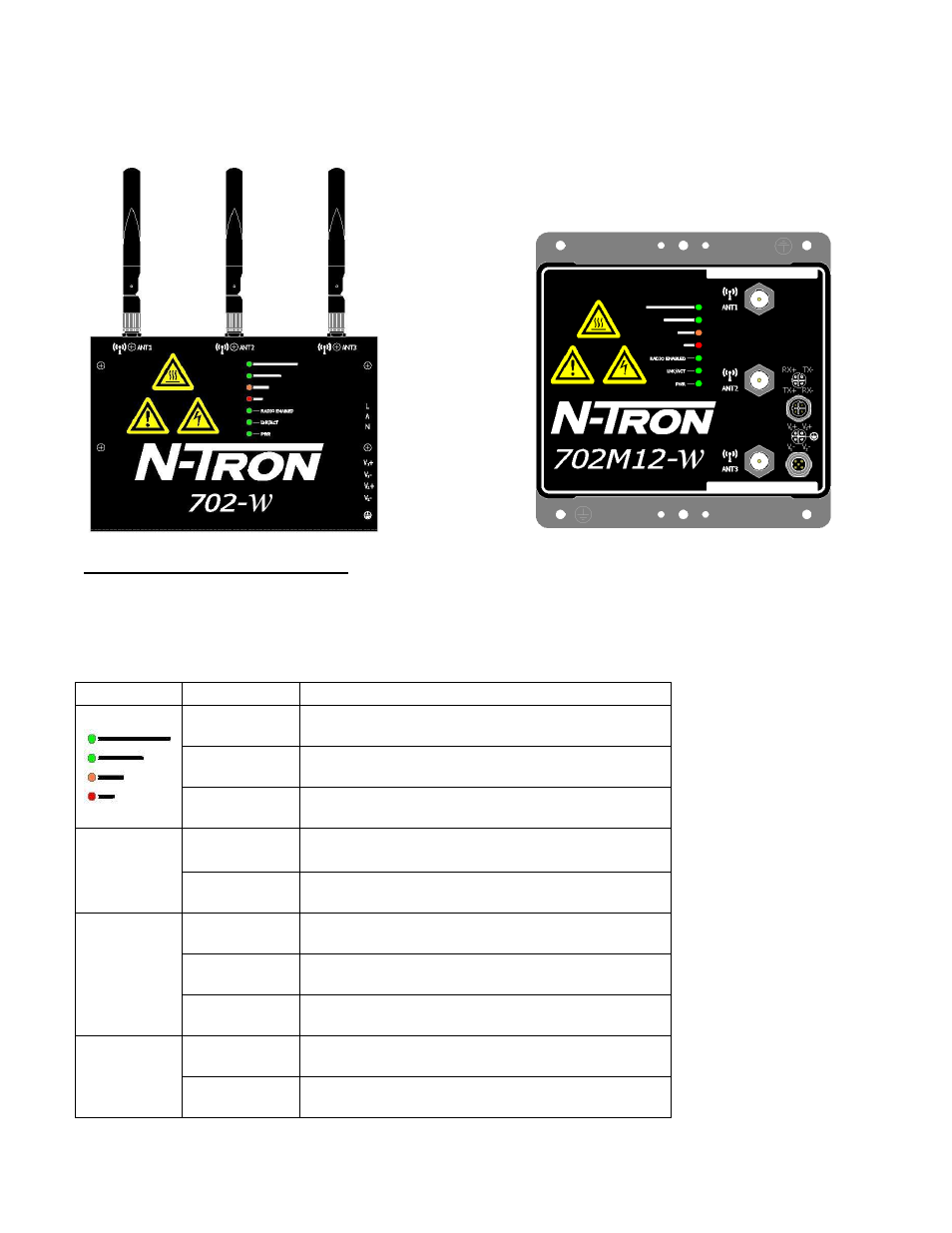

FRONT PANEL
From Top to Bottom (M12 only):
RJ45 Port
Auto Sensing 10/100 Base-TX Connections with PoE Support
Power Port
PWR LED lights when Power is supplied to the unit
LEDs: The table below describes the operating modes:
LED Color Description
GREEN Good Signal (user defined)
ORANGE Poor Signal (user defined)
RED Bad Signal (user defined)
Radio
Enabled
GREEN The radio interface is active
OFF The radio interface is off
LNK/ACT
GREEN LAN Link is present
FLASHING Data is active over the ports
OFF No Link is present on the LAN port
PWR
GREEN Power is applied
OFF No Power is applied
