(Revised 8/5/2009) 8

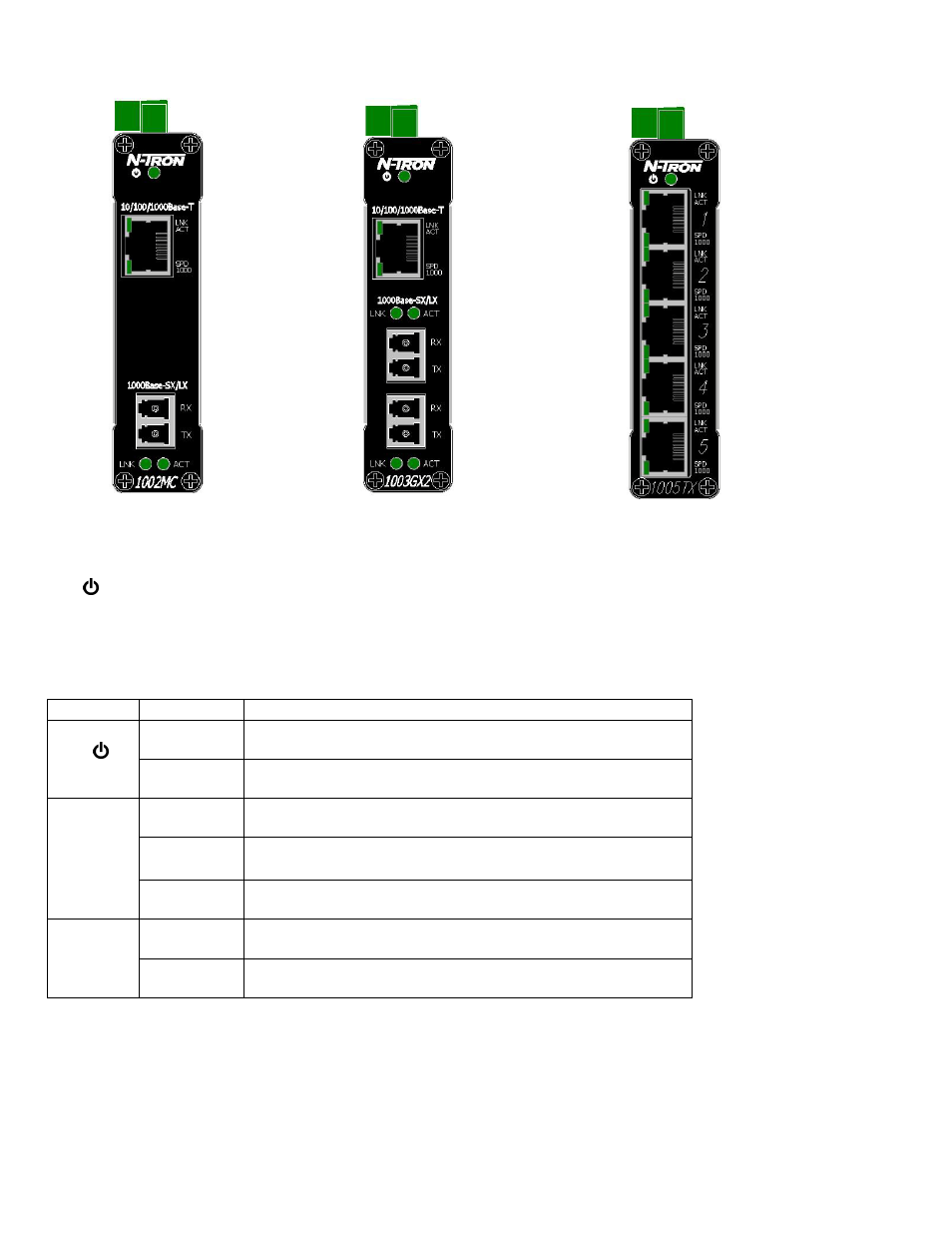

FRONT PANEL
From Top to Bottom:
Green LED lights when Power is connected
LNK/ACT Link/Activity LED
SPD1000 1000 Speed LED
LEDs: The table below describes the operating modes:
LED Color Description
ON Power is Applied.
OFF Power is OFF.
LNK/ACT
ON Link established, no Activity on cable.
BLINKING Link established, Activity on cable
OFF No link activity on cable.
SPD1000
ON Link is 1000Mbps.
OFF Link is 10/100Mbs.
