1
INTRODUCTION TO THE IE-GIGA-MINIMC
The IE-Giga-MiniMc
TM
is a 10/100/1000 auto-negotiating switching miniature media
converter. The fiber port always operates at 1000 Mbps Full Duplex [FDX]; the
copper port auto-negotiates the connected device’s speed and duplex mode: 10/100
Mbps Half Duplex [HDX]; or 10 /100/1000 Mbps Full Duplex [FDX] (including Flow
Control).
The “IE” represents the unit’s use as an Industrial Ethernet device, which allows for
extended temperature operation of -35° to 70° C (0°C to 50°C when using the
included AC adapter).
The IE-Giga-MiniMc converter offers plug-and-play operation, including the
AutoCross feature which automatically selects between a crossover work-station or
straight-through repeater hub connection depending on the connected device.
The IE-Giga-MiniMc can use either the included IMC Networks universal, external
power adapter with 100 to 240 ±10% VAC input or can be wired directly to the 7-
50 VDC terminal block (for extended temperature configuration).
6
READING THE LEDS

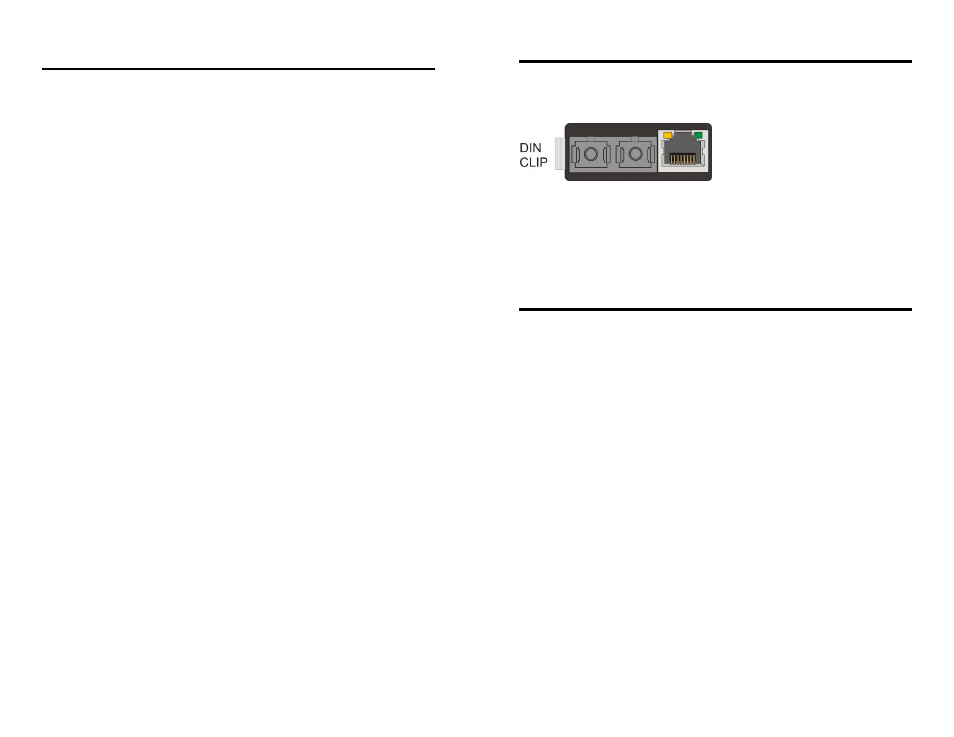

Each Giga-MiniMc converter includes two LEDs, located on the RJ-45 connector.
LED functions are as follows:
• FX LNK/ACT: Glows green when a link is established on the fiber port; blinks
green when activity is detected on the fiber port.
• TX LNK/ACT: Glows amber when a link is established on the copper port; blinks
amber when activity is detected on the copper port.
IMC NETWORKS TECHNICAL SUPPORT
Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada);
+32-16-550880
(Europe)
Fax: (949) 465-3020
E-Mail: [email protected]
Web: www.imcnetworks.com
FX LNK/ACT
TX LNK/ACT
