8
FX Duplex Mode
The Duplex Mode on the fiber port can be configured using DIP Switch #6. This
mode is available if the iMcV-MediaLinX is connected to a legacy device fiber-based
port. If the legacy device is only capable of HDX, the iMcV-MediaLinX guarantees
that it will not transmit at the same time it is receiving.
AutoCross Feature for Twisted Pair Connection
All twisted pair ports on the iMcV-MediaLinX includes AutoCross, a feature that
automatically selects between a crossover workstation and a straight-through
connection depending on the connected device.

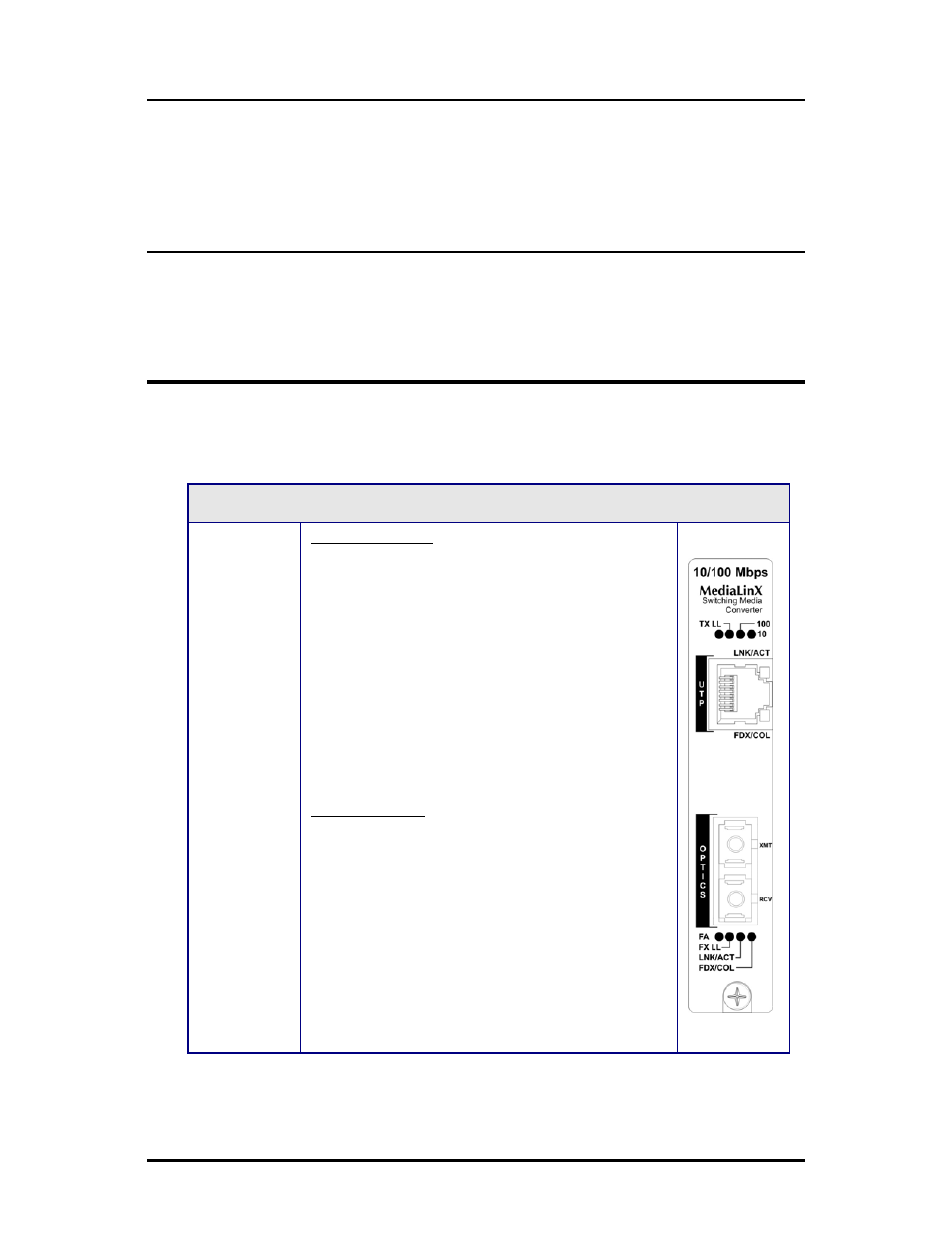

LED Operation
Each iMcV-MediaLinX Module features diagnostic LEDs that provide information on
features and ports.
iMcV-MediaLinX
TXLL
100
LNK/ACT
FDX/COL
FXLL
LNK/ACT
FDX/COL
Twisted Pair LED
Glows when TX LinkLoss is enabled.
Glows yellow when 100 Mbps is selected on port.
Glows green when a link is established on port.
Blinks green when data activity occur.
Glows yellow when port is in Full-Duplex Mode.
Blinks yellow when modules are being operated in
Half-Duplex Mode and collisions occur.
Fiber Optic LED
Glows green when FX LinkLoss is enabled.
Glows green when a link is established on port.
Blinks green when data activity occurs.
Glows yellow when port is in Full-Duplex Mode.
Blinks yellow when modules are being operated in
Half-Duplex Mode and collisions occur.
