Rj45, Thernet, Onnections – B&B Electronics ESW208 Series - Quick Start Guide User Manual
Page 13: Rj45 ethernet connections
Quick Start Guide Documentation Number: ESW200series-1112qsg 9
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
RJ45 Ethernet Connections
The ESW200 series RJ45 connectors will support 10BaseT and 100BaseTX
communications. Each RJ45 port supports full or half duplex and
MDI/MDX auto sensing.

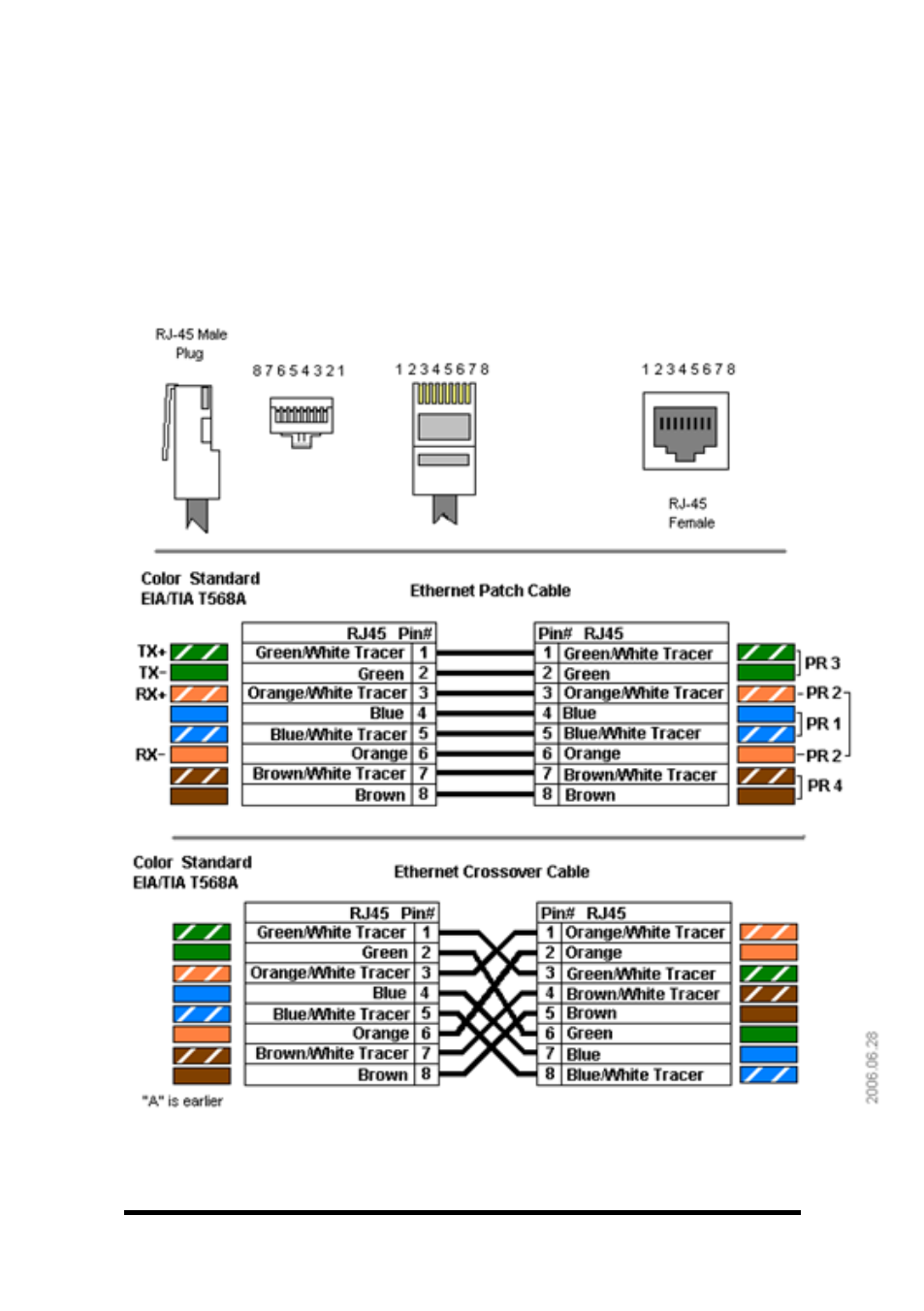

Below are the EIA/TIA T568A / B color standard and RJ45 pin out along
with standard and crossover cable connections.
