Wireless Link Failure Output

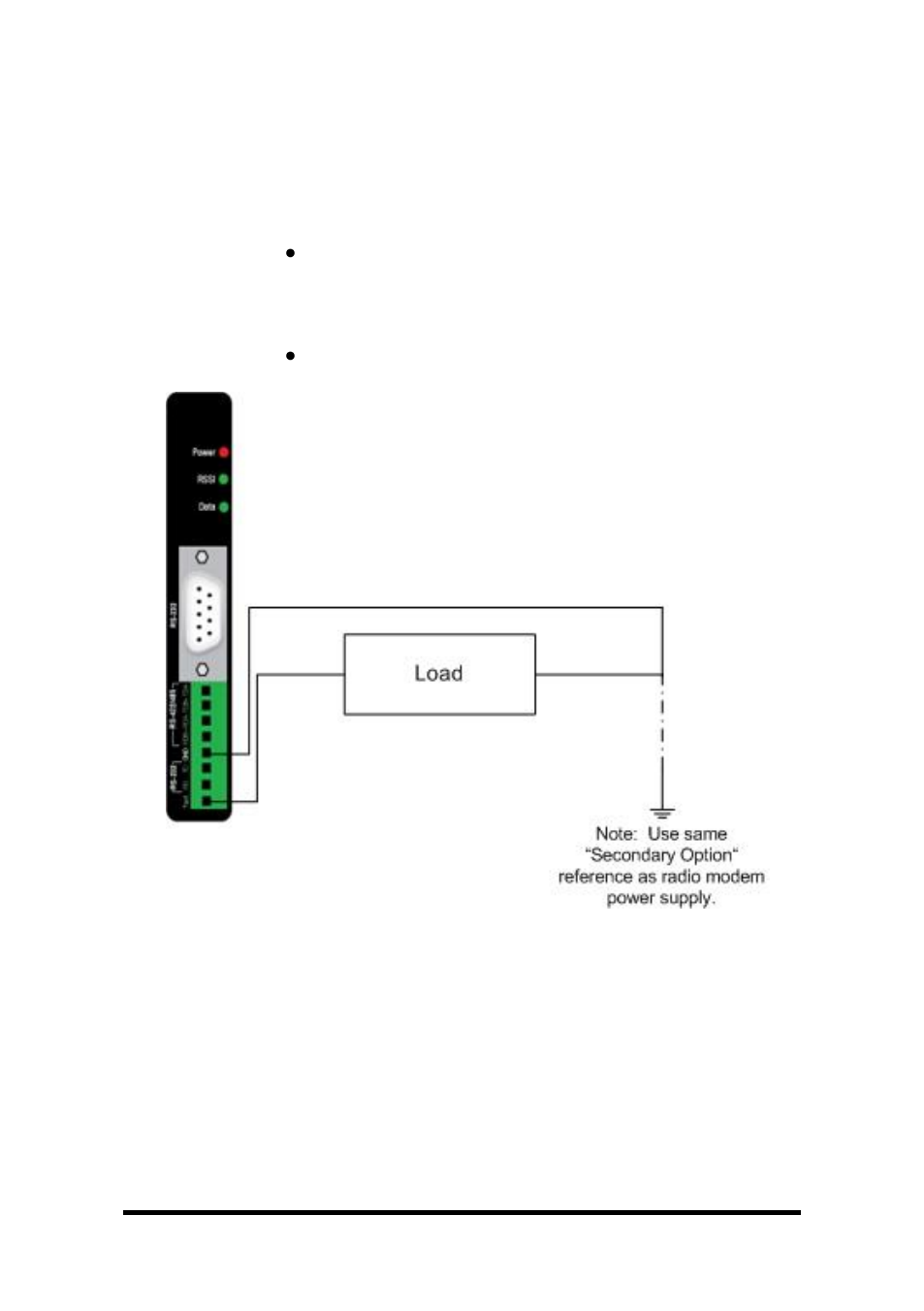

Zlinx Radio modems offer a source
(PNP)transistor output when the wireless signal
strength drops below a critical level (link failure
or miss packets)

40 mA max current

Note: In order for the RSSI LED to continuously indicate the signal strength, set the
RP command (RSSI PWM Timer) to FF.
