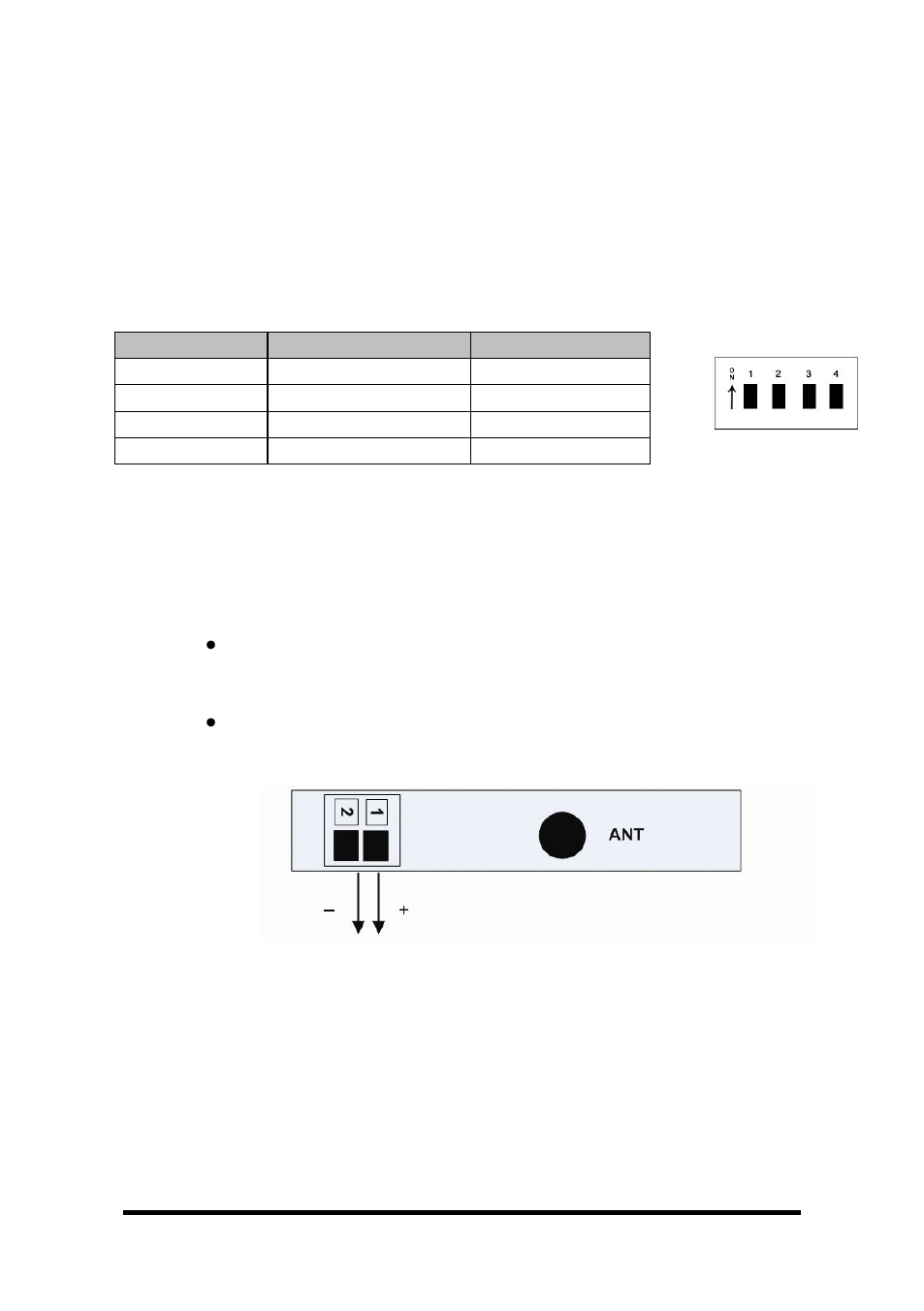

Hardware Installation
Dip switch Settings
Dipswitch OFF ON
1 4-wire 2-wire
2 4-wire 2-wire
3 No termination Termination
4 RS-422 RS-485
Mounting and Power
Install on properly grounded DIN rail
o Operating Temperature is -40 to 85C
o Operating Humidity is 10-90% non-condensing
Connect Power Supply
o Power supply is 10-48 VDC or 18-30 VAC
10-48 VDC
or
18-30 VAC
