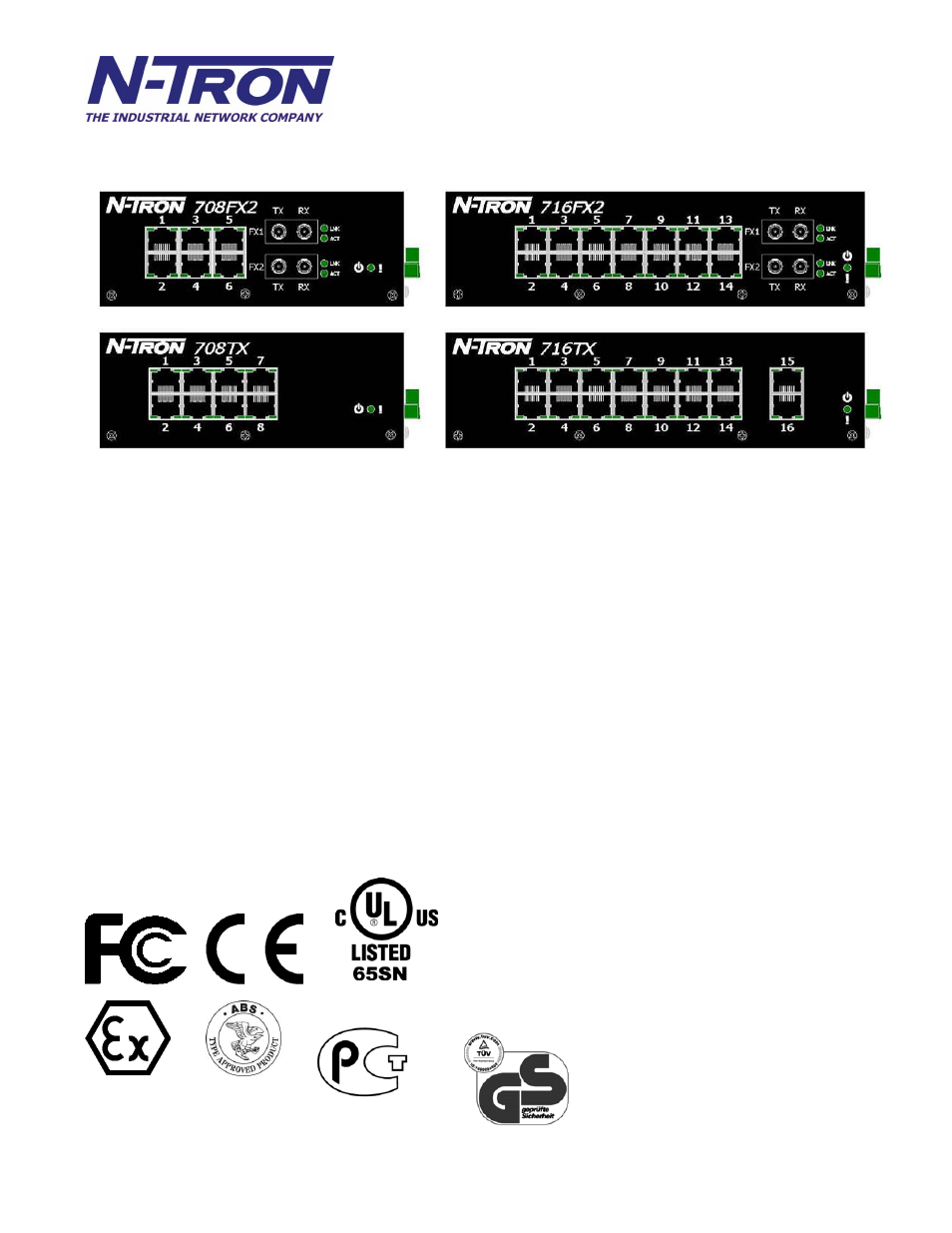

708TX, 708FX2, 708FXE2, 716TX, 716FX2, and 716FXE2 Industrial Ethernet Switch Installation
Guide
The N-TRON 700 Series Industrial Ethernet Switch offers outstanding performance and ease of use. It is ideally suited for
connecting Ethernet enabled industrial and or security equipment and is a fully managed switch.
PRODUCT FEATURES
• Full IEEE 802.3 Compliance
• Eight 10/100 BaseTX RJ-45 Ports (708TX)
• Six 10/100 BaseTX RJ-45 Ports and two
100BaseFX(E) Ports (708FX2 and 708FXE2 models
only)
• Extended Environmental Specifications
• Autosensing 10/100BaseTX, Duplex, and MDIX
• Offers Rapid Spanning Tree Protocol
• Trunk with other N-Tron trunking capable switches
over two ports
• Store & Forward Technology
• Plug and Play IGMP Support
• Rugged Din-Rail Enclosure
• Redundant Power Inputs (10-30 VDC)
o
–HV High Voltage Option (40-160VDC)
• SNMP v1, v2 and v3.
• Web Browser Management with detailed ring map and
fault location charting.
• Web Browsing and N-View Switch Monitoring
REGULATORY CERTIFICATIONS
PRODUCT CONFIGURATIONS
•
708TX
– Eight 10/100 Base-TX RJ45 Copper Ports
•
708FX2-XX
– Six 10/100 Base-TX RJ45 Copper Ports, two
multimode 100BaseFX Ports
•
708FXE2-XX-YY
– Six 10/100 Base-TX RJ45 Copper Ports, two
singlemode 100BaseFX Ports
•
716TX-VV
– Sixteen 10/100 Base-TX RJ45 Copper Ports
•
716FX2-XX-VV
– Fourteen 10/100 Base-TX RJ45 Copper Ports,
two multimode 100BaseFX Ports
•
716FXE2-XX-YY-VV
– Fourteen 10/100 Base-TX RJ45 Copper
Ports, two singlemode 100BaseFX Ports
Where: XX = ST or SC; YY = 10, 40 or 80 for Singlemode, Blank
for Multimode; E = Singlemode, Blank Otherwise; VV = HV for High
voltage, Blank for Standard voltage
MANAGEMENT FEATURES
• IGMP Snooping
• VLAN
• QoS
• Trunking
• Mirroring
• LLDP
• CIP
• 802.1D-2004 Rapid Spanning Tree
• N-RING™ (N-Tron proprietary Ring Management)
• N-LINK™ (N-Tron proprietary Coupling Management)
• DHCP Server, Option 82 relay
• Port Security—MAC Address Based
708 Series only
708 Series only
716-HV Models Only
