DIN RAIL MOUNTING FOR 716TX AND 716FX2 SERIES
Install the unit on a standard 35mm Din-Rail. Recess the 716TX unit to allow at least 3‖ of horizontal
clearance for copper cable bend radius. Recess the 716FX2 unit to allow at least 5‖ of horizontal clearance
for fiber cable bend radius. There should be at least 4‖ of clearance on both the top and bottom of the unit
to allow proper ventilation.

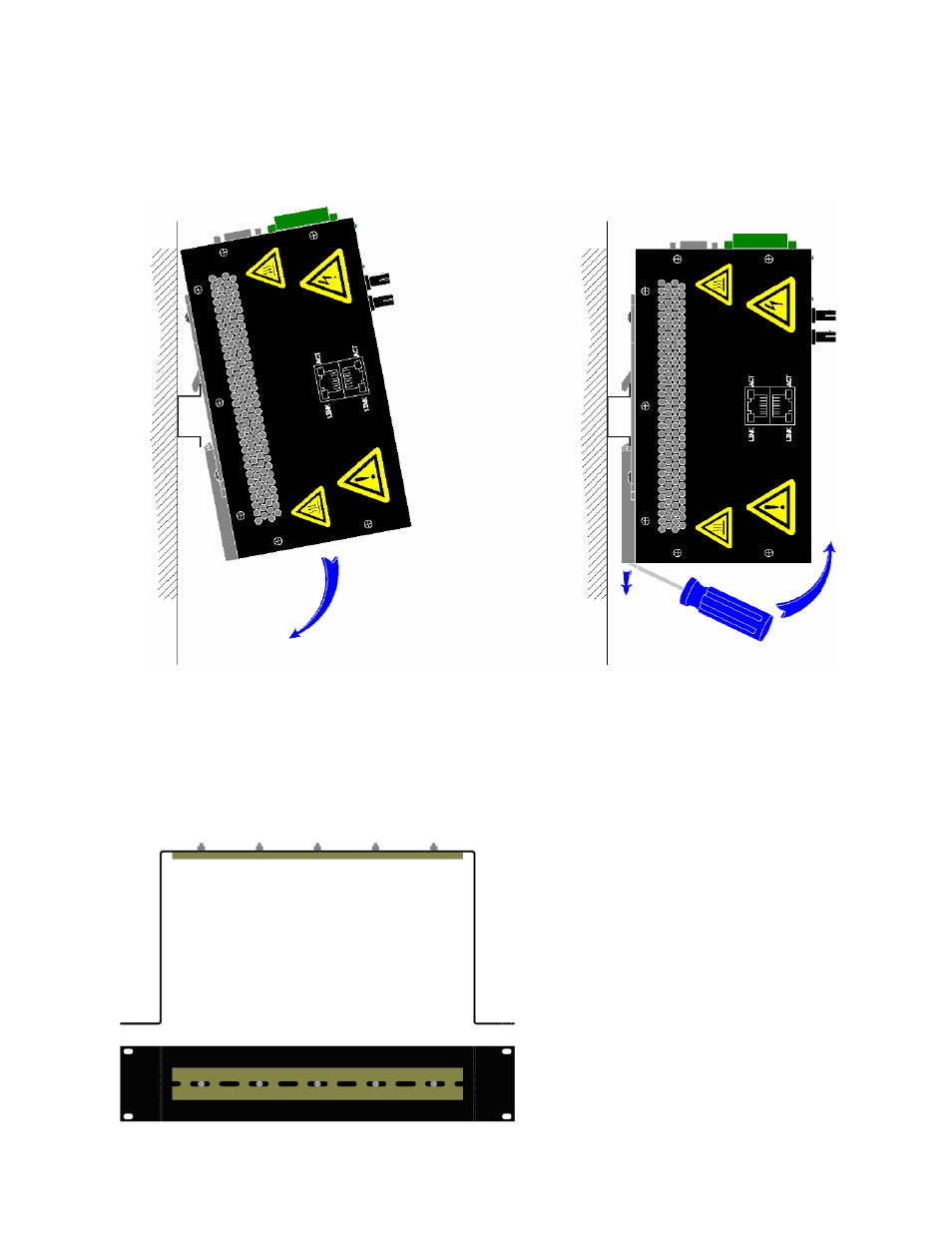

To mount the unit to the 35mm din-rail, place top edge of the bracket on the back of the unit against the din-
rail at an upward angle. Lower the bottom of the unit until it snaps into place.
Note: When mounting the switch in the vertical position, you must orientate the power connector to the top
as shown above for proper ventilation.
OPTIONAL MOUNTING:
Most N-Tron™ products are designed to be
mounted on industry standard 35mm DIN-
Rail. However, DIN-Rail mounting may
not be suitable for all applications.
Our Universal Rack Mount Kit (P/N:
URMK) may be used to mount the 700
Series to standard 19" racks as an option.
Our Panel Mount Assembly (P/N: 700-PM)
may be used to securely mount the 700
Series to flat surfaces or panels as an
option.
