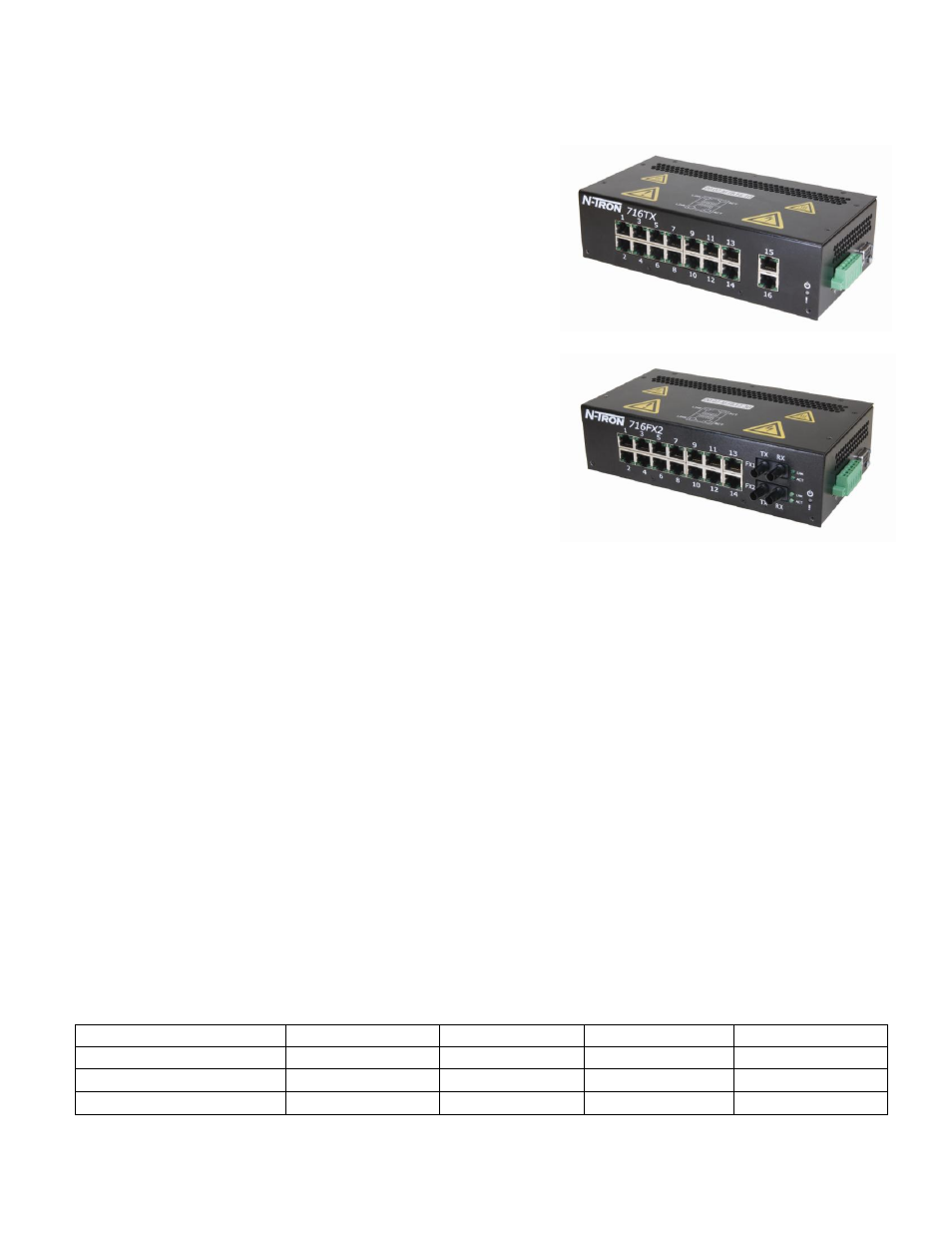

KEY SPECIFICATION – 716TX, 716FX2, 716FXE2
Switch Properties
Number of MAC Addresses: 8,000
Aging Time: Programmable
Latency Type: 2.6 µs
Switching Method: Store & Forward
Physical
Height: 2.27" (5.76 cm)
Width: 8.25" (20.95 cm)
Depth: 716TX 4.75" (12.06 cm)
716FX(E)2 5.85 ” / (14.86 cm)
Weight (max): 3.3 lbs (1.49 kg)
Din-Rail mount: 35mm
Electrical
Redundant Input Voltage: 10-30VDC (Regulated)
Input Current (max): 620mA max. @ 24VDC
-HV (High Voltage Option)
Redundant Input Voltage:
40-160VDC (Regulated)
Input Current (max): 160mA max. @ 124VDC
Input Ripple: Less than 100 mV
N-TRON Power Supply: NTPS-24-1.3 (1.3 Amp@24VDC) (NOTE: Not appropriate for use with
M12, POE, and HV models.)
Environmental
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Operating Humidity: 5% to 95% (Non Condensing)
Operating Altitude 0 to 10,000 ft.
Shock and Vibration
(bulkhead mounting)
Shock: 200g @ 10ms
Vibration/Seismic:
50g, 5-200Hz,Triaxial
Reliability
MTBF: >2 Million Hours
Warranty: 3 years from the date of purchase.
Connectors
10/100BaseTX: (16) RJ-45 Copper Ports (716TX)
(14) RJ-45 Copper Ports (716FX2)
100BaseFX: (2) SC or ST Duplex Ports (716FX2)
Recommended Wiring Clearance:
Top: 1 " (2.54 cm)
Front: 4 " (10.16 cm) FX models
Front: 2 " (5.08 cm) TX models
Network Media
10BaseT:
>Cat3 Cable
100BaseTX: >Cat5 Cable
minimum length : 1 meter
maximum length : 100 meters
100BaseFX
Multimode:
50-62.5/125µm
100BaseFXE
Singlemode:
7-10/125µm
100 Mb Fiber Transceiver Characteristics
Fiber Length
2km* 15km** 40km** 80km**
TX Power Min -19dBm -15dBm -5dBm -5dBm
RX Sensitivity Max -31dBm -31dBm -34dBm -34dBm
Wavelength Min/Max 1310nm 1310nm 1310nm 1550nm
* Multimode Fiber Optic Cable
** Singlemode Fiber Optic Cable
