19

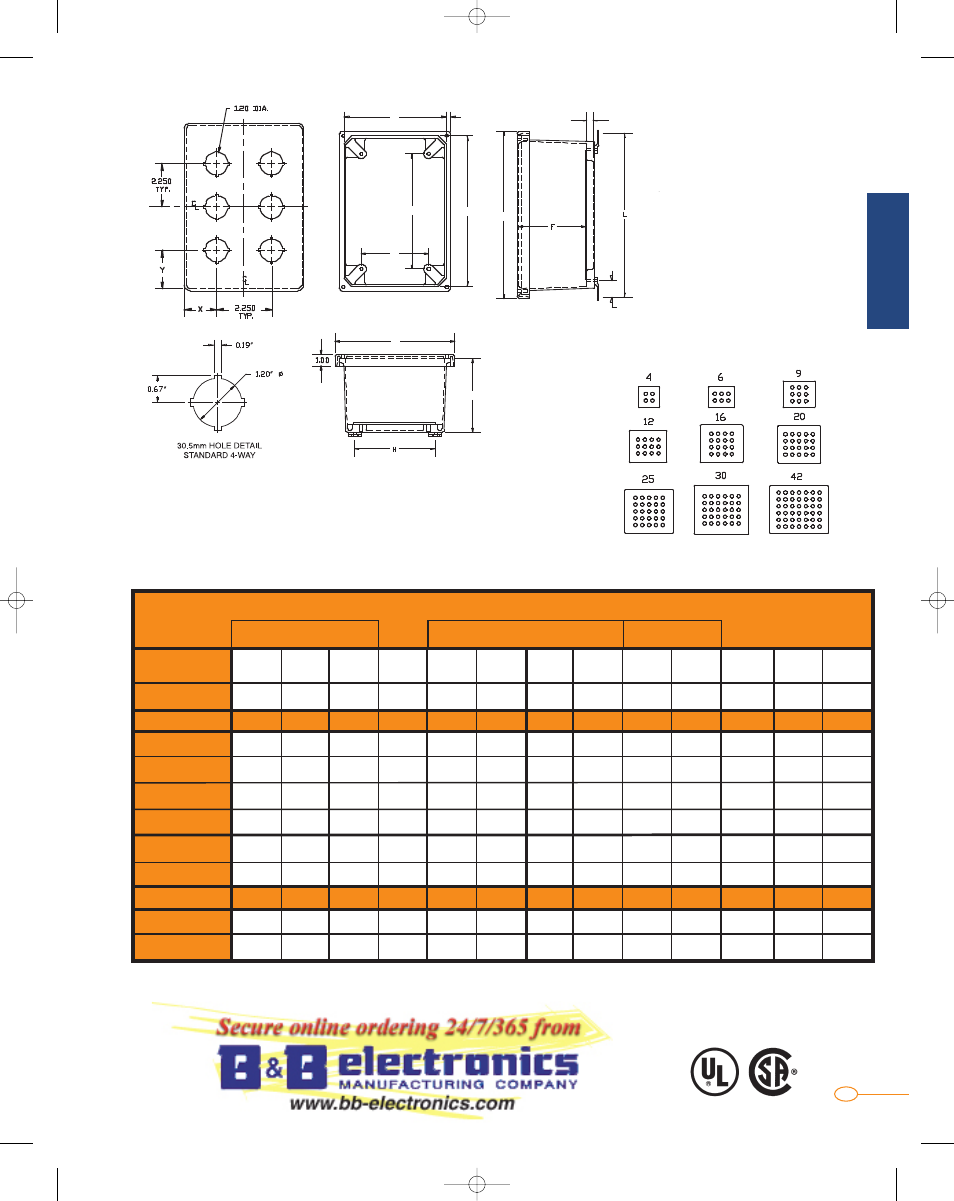

Box Size Centers Cover Dim.
No. of
Holes
Part No. A B C F H S Z L U W X Y
AM664HP4 6.10 6.10 4.18 3.78 5.01 4.25 4.25 7.35 7.69 7.69 4 2.72 2.72
AM864HP6 8.00 6.13 4.13 3.73 5.01 6.25 4.25 9.23 9.59 7.71 6 2.73 2.55
AM1086HP9 10.13 8.26 6.13 5.70 7.01 8.25 6.25 1 1.19 1 1.77 9.90 9 2.68 3.62
AM1086HP12 10.13 8.26 6.13 5.70 7.01 8.25 6.25 1 1.19 1 1.77 9.90 12 2.68 2.49
AM1206HP16 12.13 10.26 6.13 5.70 9.01 10.25 8.25 13.23 13.77 1 1.90 16 2.55 3.49
AM1206HP20 12.13 10.26 6.13 5.70 9.01 10.25 8.25 13.23 13.77 1 1.90 20 2.55 2.37
AM1426HP25 14.13 12.26 6.13 5.73 1 1.01 12.25 10.25 15.23 15.73 13.85 25 2.43 2.37
AM1648HP30 16.27 14.40 8.13 7.70 13.01 14.25 12.25 17.23 17.87 15.99 30 3.50 3.31
AM1868HP42 18.40 16.40 8.13 7.70 14.97 16.25 14.25 19.31 20.00 18.00 42 3.38 3.25
All dimensions in inches
Pushbutton Arrangements
Nominal 1/8" wall thickness
.47
.44
1.15
TYP. Note: Cover removed for clarity
B
S A
U
Z
W
C
AM1084HP9 10.13 8.26 4.13 3.68 7.01 8.25 6.25 1 1.19 1 1.77 9.90 9 2.68 3.62
A
M
S
E
R
I
E
S
