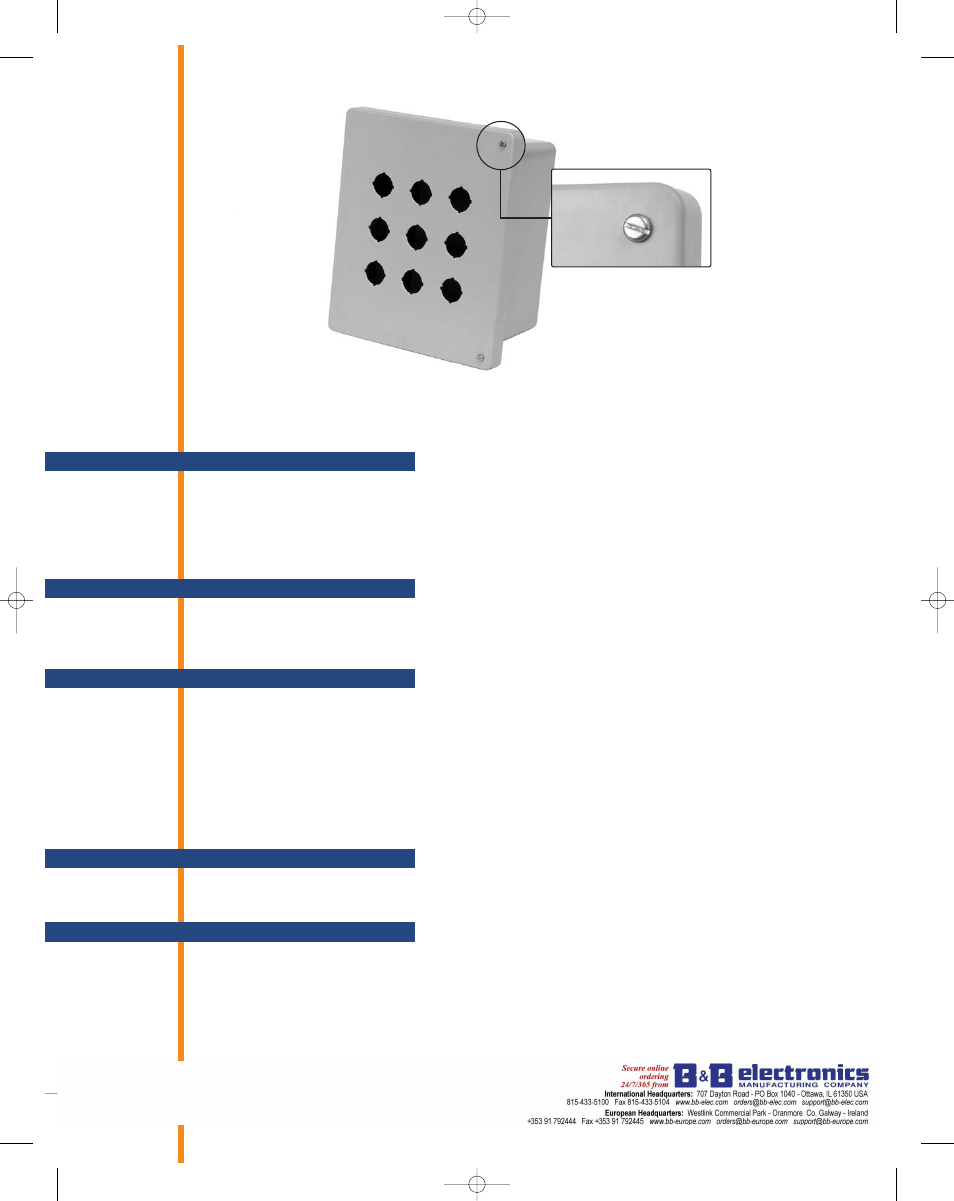

AM Series Pushbutton Enclosures:
Multi-Hole Hinged Screw Cover
A P P L I C A T I O N
• Designed to insulate and house pushbuttons and switches in applications that require
a human-machine interface
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• For use with industrial control equipment in ordinary locations
S T A N D A R D S
• Construction meets NEMA/EEMAC Type 4, 4X, 12 specifications
• UL 508 listed, Type 1, 2, 3, 3R, 4, 4X, 12, 13
• CSA certified LR 89590 for use with industrial control equipment CSA Enc. 1, 2, 3, 4, 4X, 12, 13
C O N S T R U C T I O N
• Constructed to requirements of CSA Enc. 5 based on standard component cutout
• Strong, molded fiberglass reinforced polyester construction
• 304 stainless steel captive cover screws
• Continuous stainless steel hinge
• Gasket made of closed cell neoprene cord encased in a continuous channel
• 304 stainless steel wall mounting feet with 10-32 stainless steel screws included
• 10-32 threaded inserts are installed for optional back panel
• UV stabilized for outdoor use
A C C E S S O R I E S
• Optional painted carbon steel back panels (See table on pages 64-65.)
• Optional aluminum back panels (See table on pages 64-65.)
M O D I F I C A T I O N S
• Molded-in color matches
• EMI/RFI shielding
• Factory-supplied silk screening
