Manual Documentation Number:

EIRHP305-T-1712m

5

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

LED Indicators


The diagnostic LEDs located on the front panel of the industrial switch
provide real-time information of system and operation status. Table-1
provides the description of the LEDs status and their definitions.






















Wiring the Power Inputs

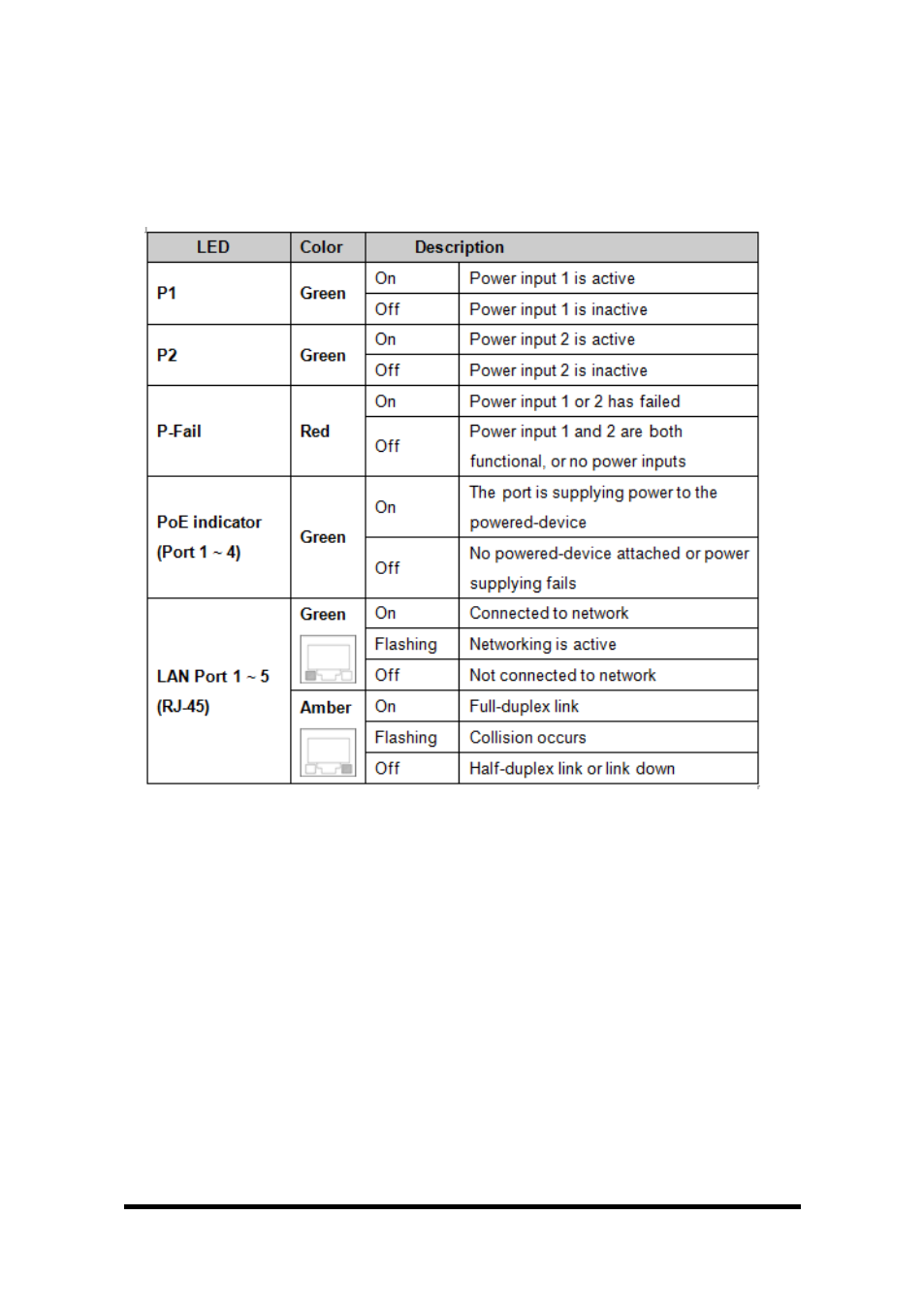

Table-1: LED Indication Definition
