Hardware Description

The following information is an introduction to the PoE Industrial Ethernet
Switch dimensions, port, cabling information, and wiring installation.

Dimensions

5 port 10/100T(X) with 4 High-Power (25W) PoE ports Industrial Switch
dimensions (W x D x H) is 48.60mm x 95mm x 140mm, the detail
dimensions as Figure-1

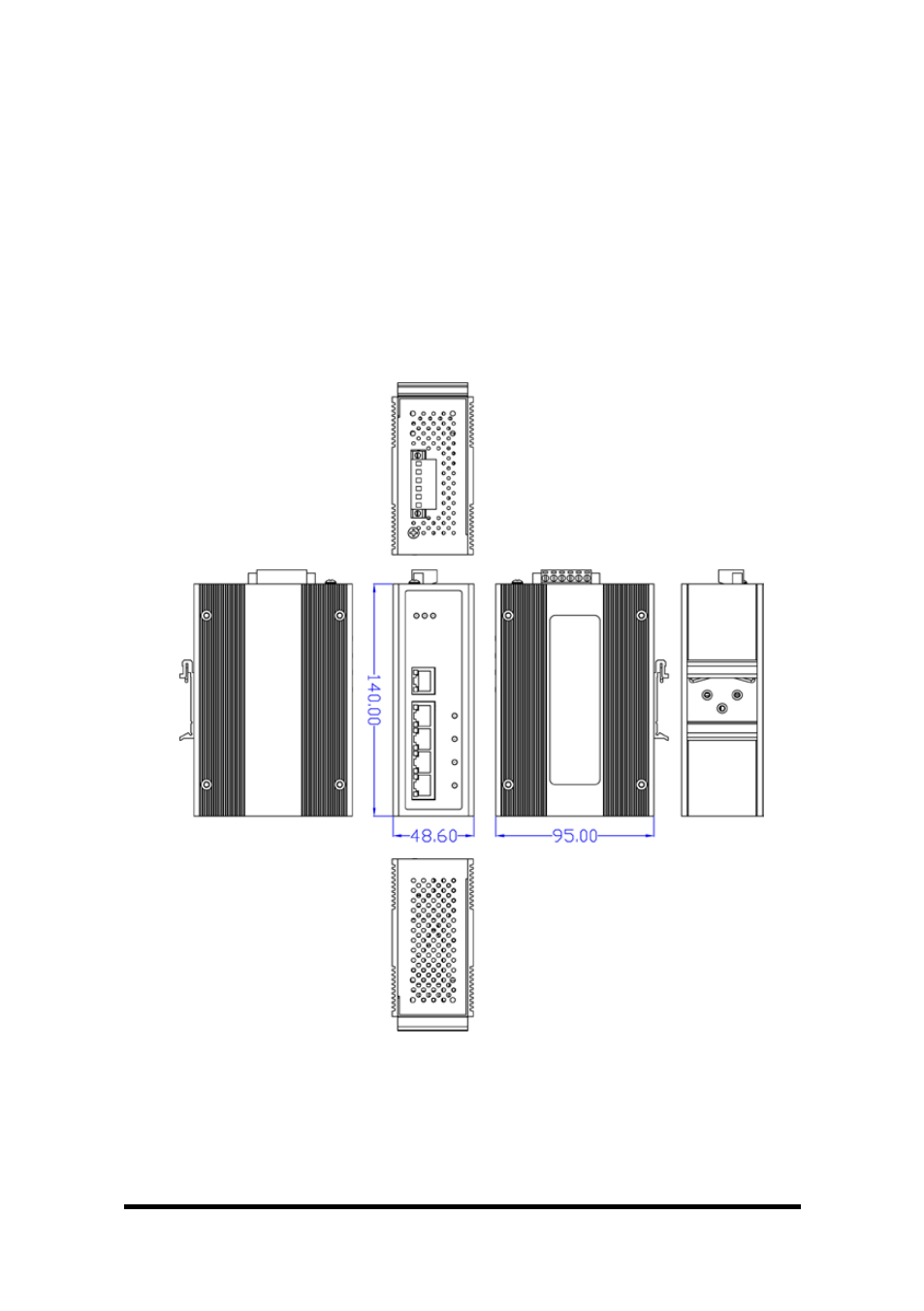

Figure-1: Mechanical Dimensions
