8 Manual Documentation Number:
EIRHP305-T-1712m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Cabling
Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for
RJ-45 connections: 100Ω Category 3, 4 or 5 cable for 10Mbps
connections, 100Ω Category 5 cable for 100Mbps, or 100Ω Category
5e/above cable for 1000Mbps connections.
The cable between the switch and the link partner (switch, hub,
workstation, etc.) must be less than 100 meters (328 ft.) long.

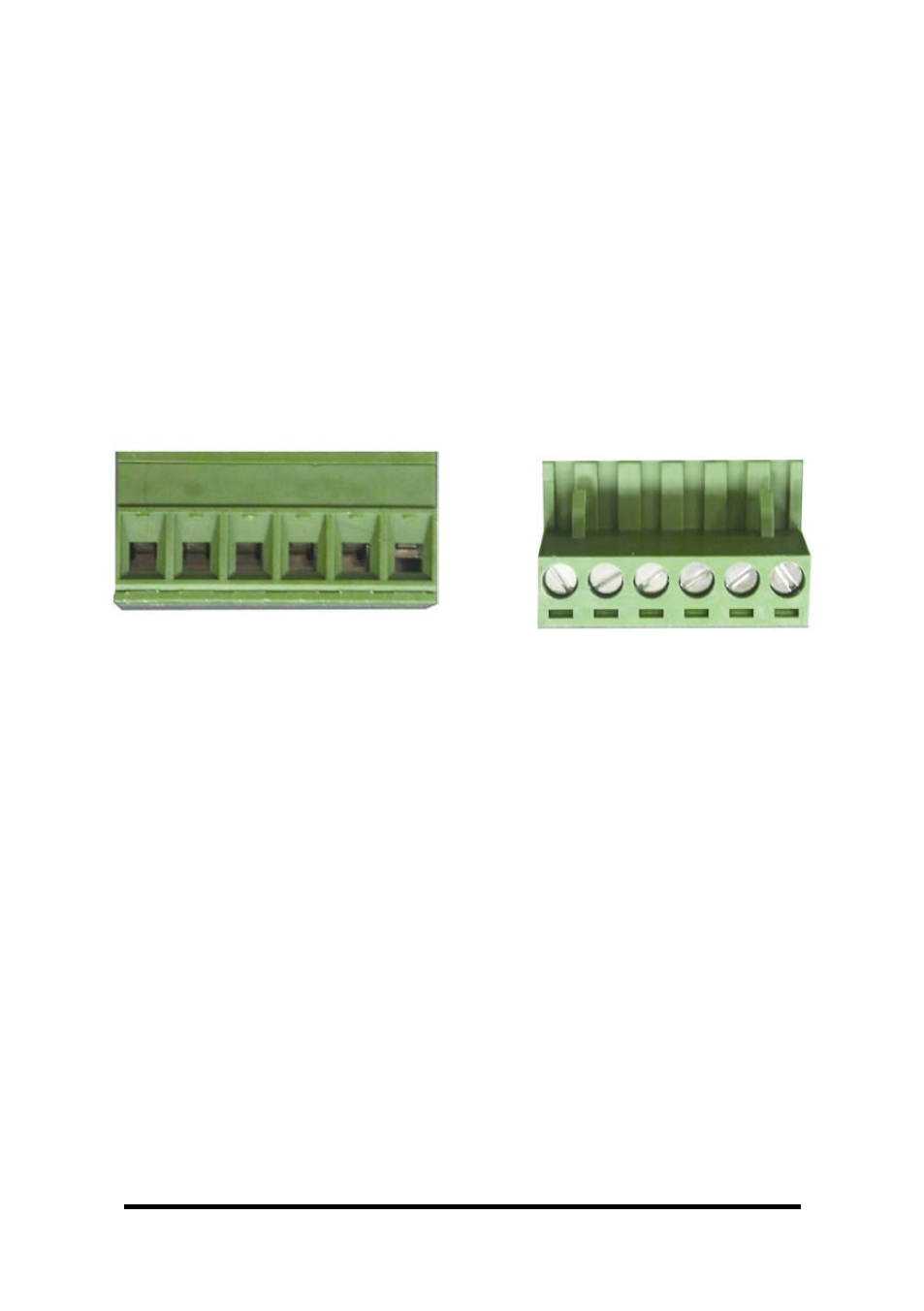

Wiring the Power Inputs
Note:
1.
Terminal blocks are rated for 12-24 AWG wire
2.
Use copper conductors, 60/75 o
C. Tighten to 5 lb in.
V- V+ V- V+
