10 Quick Start Guide Documentation Number: ESW100series-1112qsg
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

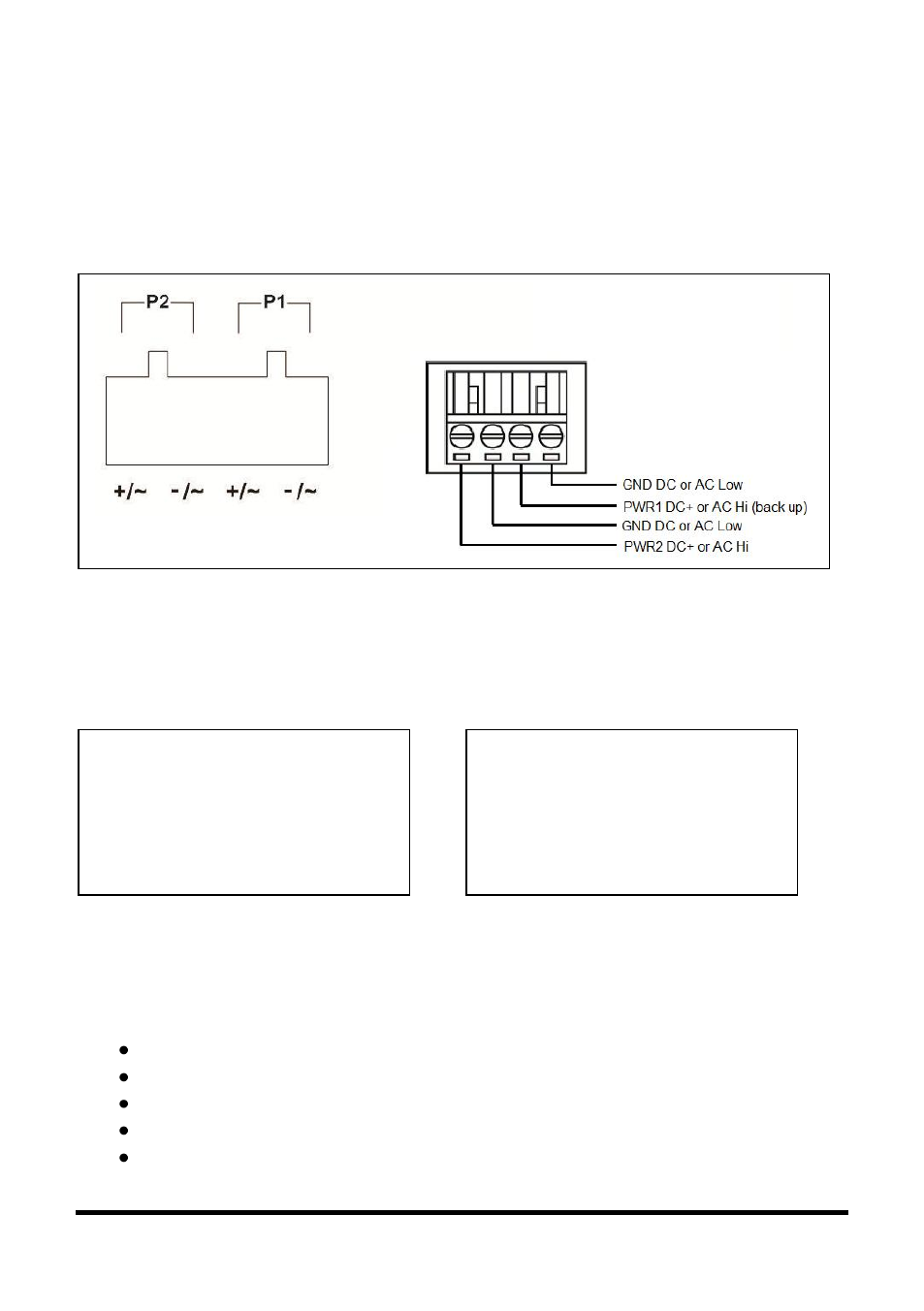

Power Input Connections
The ESW105/108 series accepts 12 to 36 VDC or 10 to 24 VAC input voltage using
removable terminal blocks.
UL Installation Information
Electrical Ratings
OUTPUT: All Models – Low Voltage, Limited Energy communications protocol.
Wiring Terminals:
One Conductor Per Terminal
Use Copper wire only
Wire Range: 25 to 12 AWG
Tightening Torque: 4.5 Lb-in
Temperature rating of field wiring - 105
℃ minimum (Sized for 60℃
Ampacity)
ESW108, ESW108-XX
Power: 24 [email protected]
12 – [email protected] max
10 – [email protected] max
47 – 63Hz
INPUT: ESW105, ESW105-XX
Power: [email protected]
12 – 36 [email protected] max.
10 – [email protected] max
47 – 63Hz
