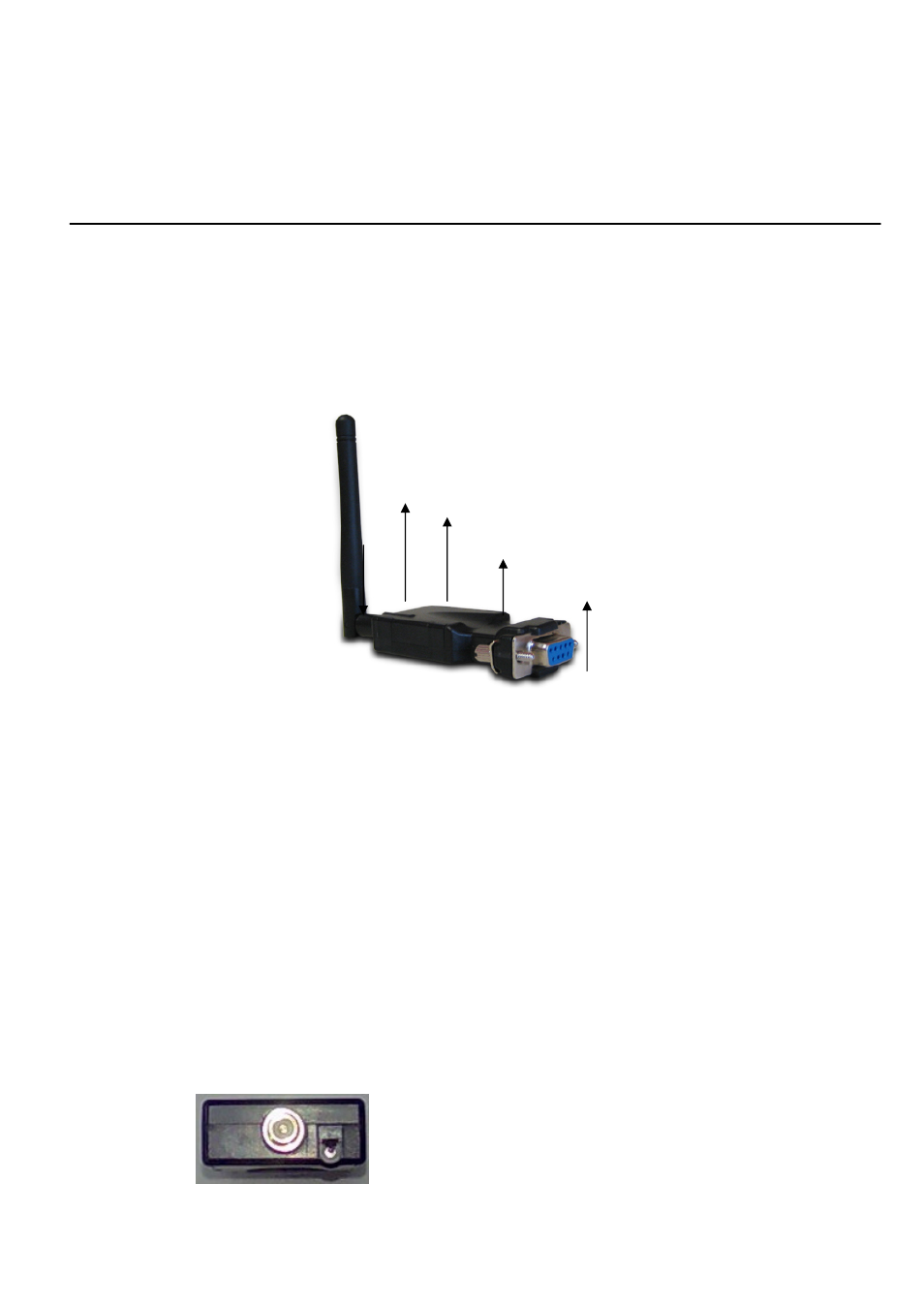

Product Panel Views Description
Product Views
DC-In Power Outlet
The Bluetooth to RS232 is powered by a single 5V DC (Inner positive / outer
negative) power supply and 200mA of current. A suitable power supply
adapter is part of the packaging. Connect the power line to the power outlet
beside of antenna connector and put the adapter into the socket. If the
power is properly supplied, the red color LED will be on.
DC-In
Power Outlet
Serial I/O Port
RS-232
Sync Button
LED Indicators
Antenna
