EKI-2741F-SX-LX User Manual 18

Second, insert the fiber cable of LC connector into the transceiver.

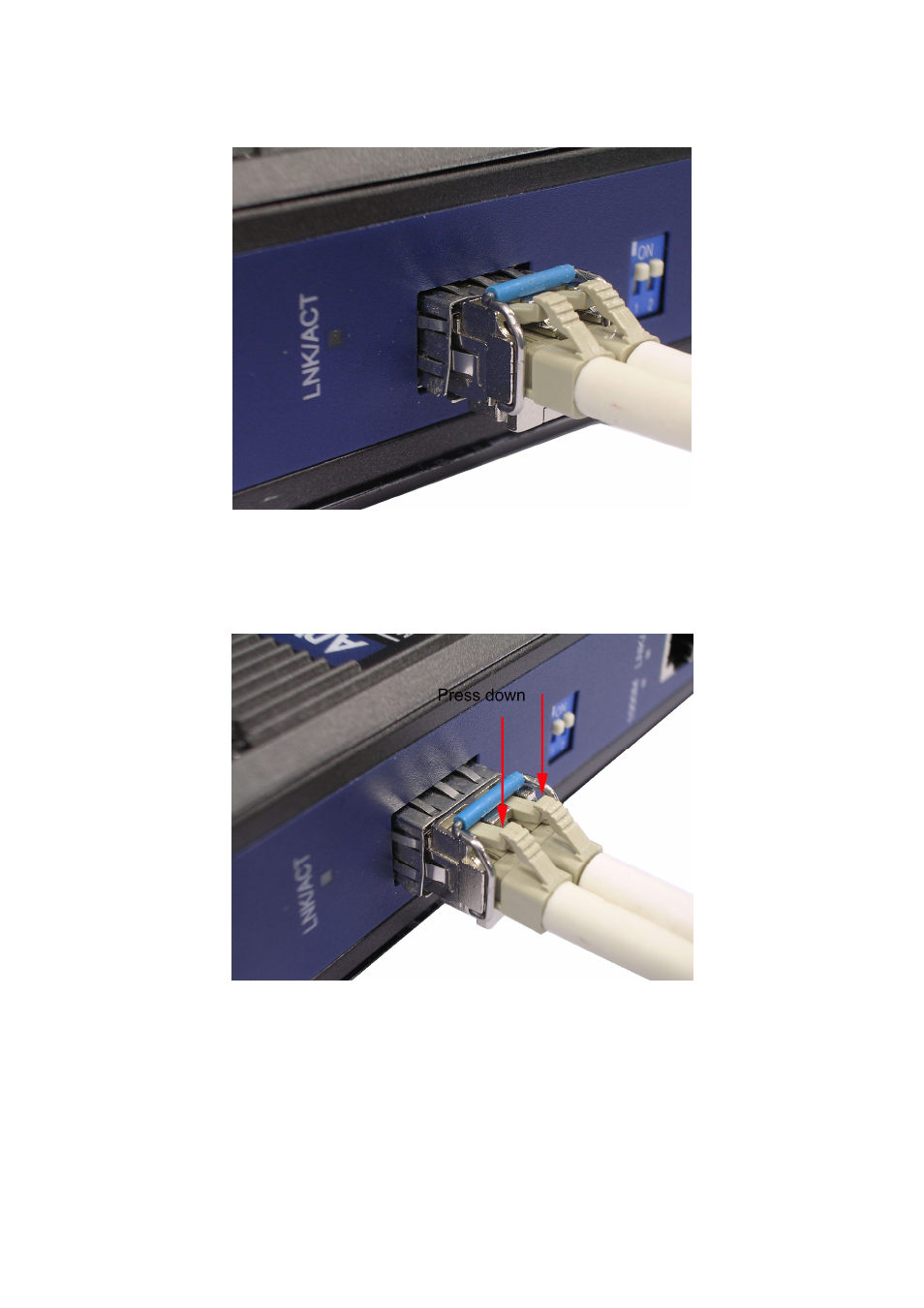

Figure 2.10: LC connector to the transceiver


To remove the LC connector from the transceiver, please follow the steps shown below:

First, press the upper side of the LC connector from the transceiver and pull it out to release.

Figure 2.11: Remove LC connector
