EKI-2741F-SX-LX User Manual 14
2.4 Mounting
The EKI-2741F/SX/LX support two mounting methods: DIN-rail & Wall.
2.4.1 Wall mounting
EKI-2741F/SX/LX can be wall-mounted by using the included mounting kit. Then, hang
on the EKI-2741F/SX/LX to the nails on the wall.
First, use the screws included in the package to combine the EKI-2741F/SX/LX and
metal mounting kit. And then you can install the device firmly via the components,
please see Figure 2.5 as below.

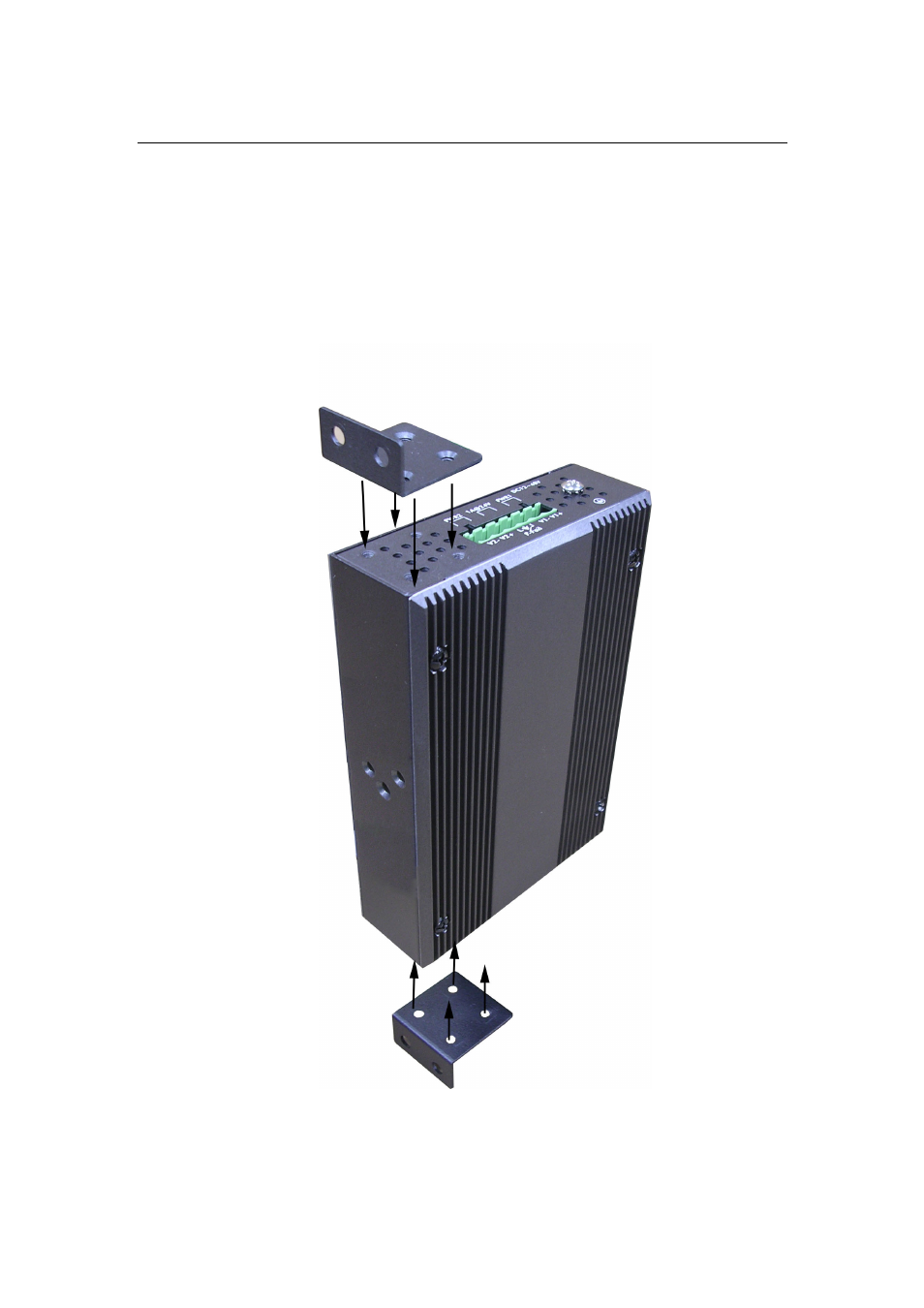

Figure 2.5: Combine the Metal Mounting Kit
