13 Chapter2

The terminal block of power & relay is located on the top side. Please refer to page 16 for pin
assignment.

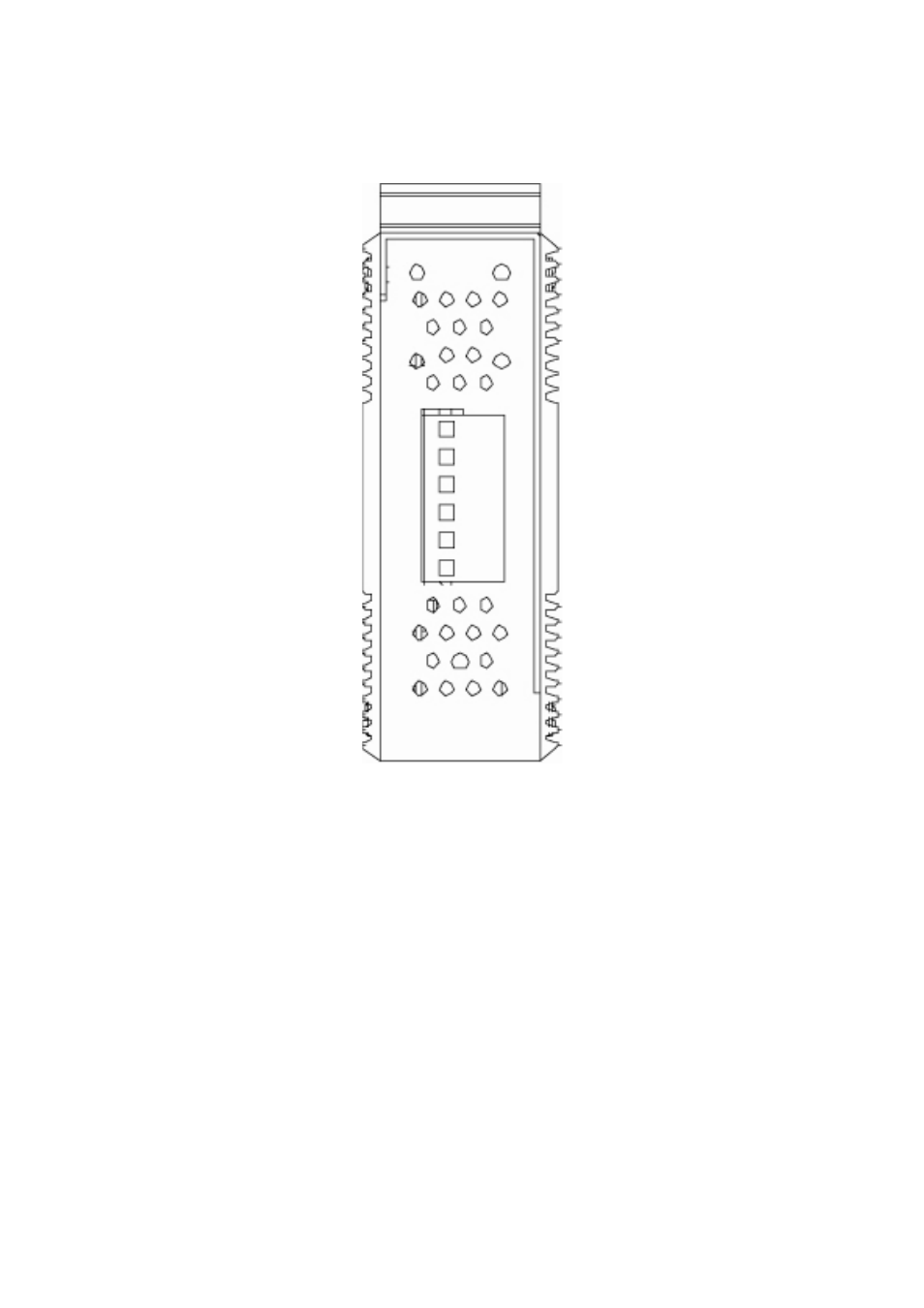

Figure 2.4: Top View of EKI-2741 series
