Installation Guide

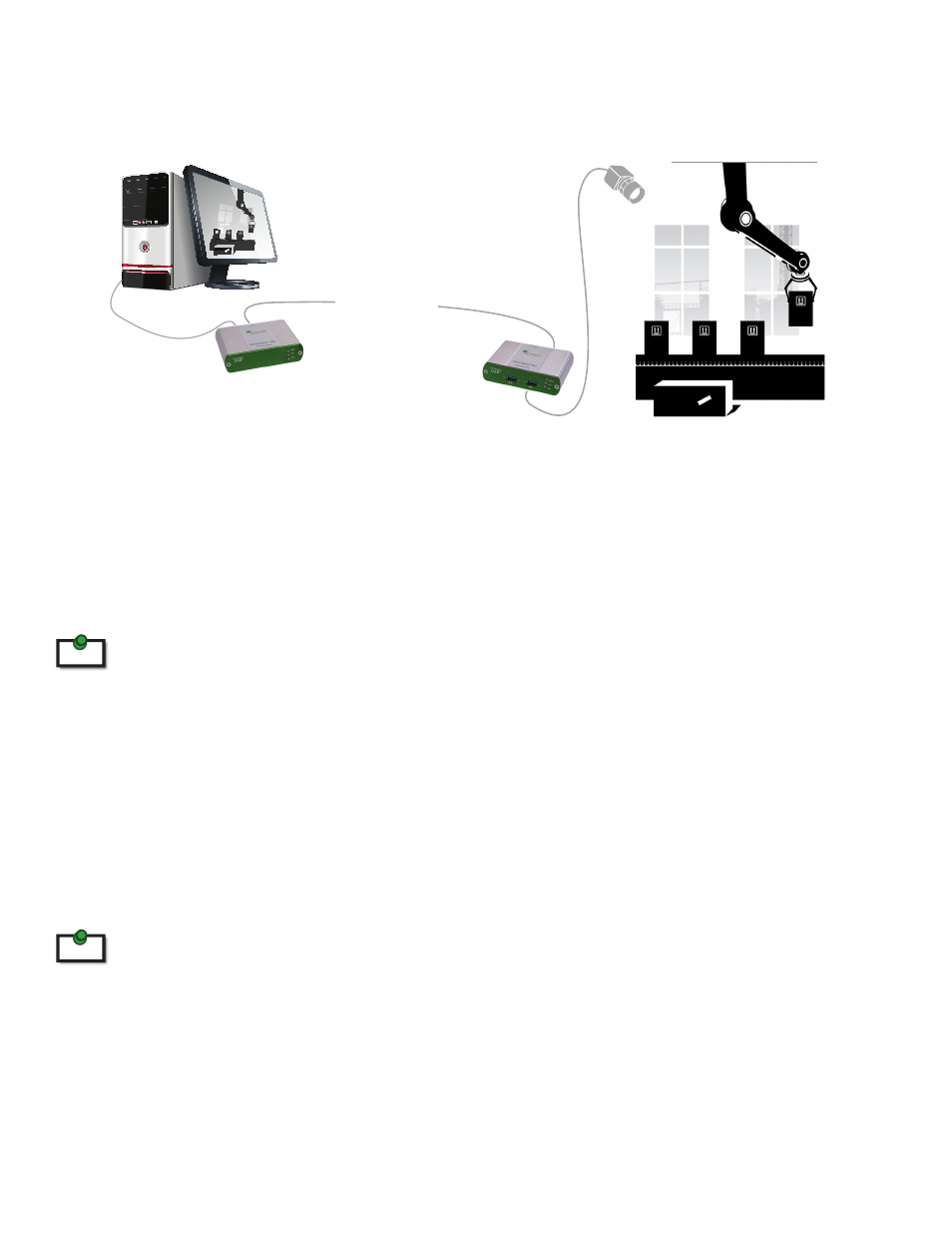

Example Application
Requirements
To complete installation of the Spectra 3022, you will also require the following items that are not included
with the product:
• USB 3.0 compatible computer (host computer) with a USB 3.0 compliant operating system
• USB 3.0 compatible device
• 2-strand 50/125μm multimode (MMF) fiber optic cable with Duplex LC connectors
note The maximum length of the multimode fiber (MMF) optic cable supported by the Spectra 3022 system, including patch
cords, is 100m for USB 3.0 cameras, and 50m for other devices.
Fiber Optic Link Cabling
The LEX and REX units are interconnected by fiber optic cabling. This cabling must be:
• 50/125μm multimode fiber (MMF)
• Terminated with Duplex LC connectors
The following maximum distances are achievable depending on the application and cabling standard:
• Using OM3, up to 100m is achievable with USB 3.0 cameras, and up to 50m for all other applications.
• Using OM2, up to 50m is achievable for all applications.
note For assistance sourcing appropriate fibre optic cabling, contact Icron Technical Support .
If premise cabling will be used for the installation, then the distances provided above must be met when
measuring from LEX to REX, inclusive of the premise cabling and the patch cables. All cables must meet the
ratings specified. Patch cables must be terminated with Duplex LC connectors.
6
LEX
USB 3.0 Camera
REX
Assembly Line
Computer & Monitor
USB 3.0/2.0/1.1
up to 100m over
multimode fiber
