The REX Unit
The Remote Extender (REX) unit provides USB Type A ports for USB 3.0 devices. The REX unit allows you
to connect up to two USB 3.0 devices directly. The REX unit is powered by an external AC adapter and can
supply up to 900mA to each USB port.

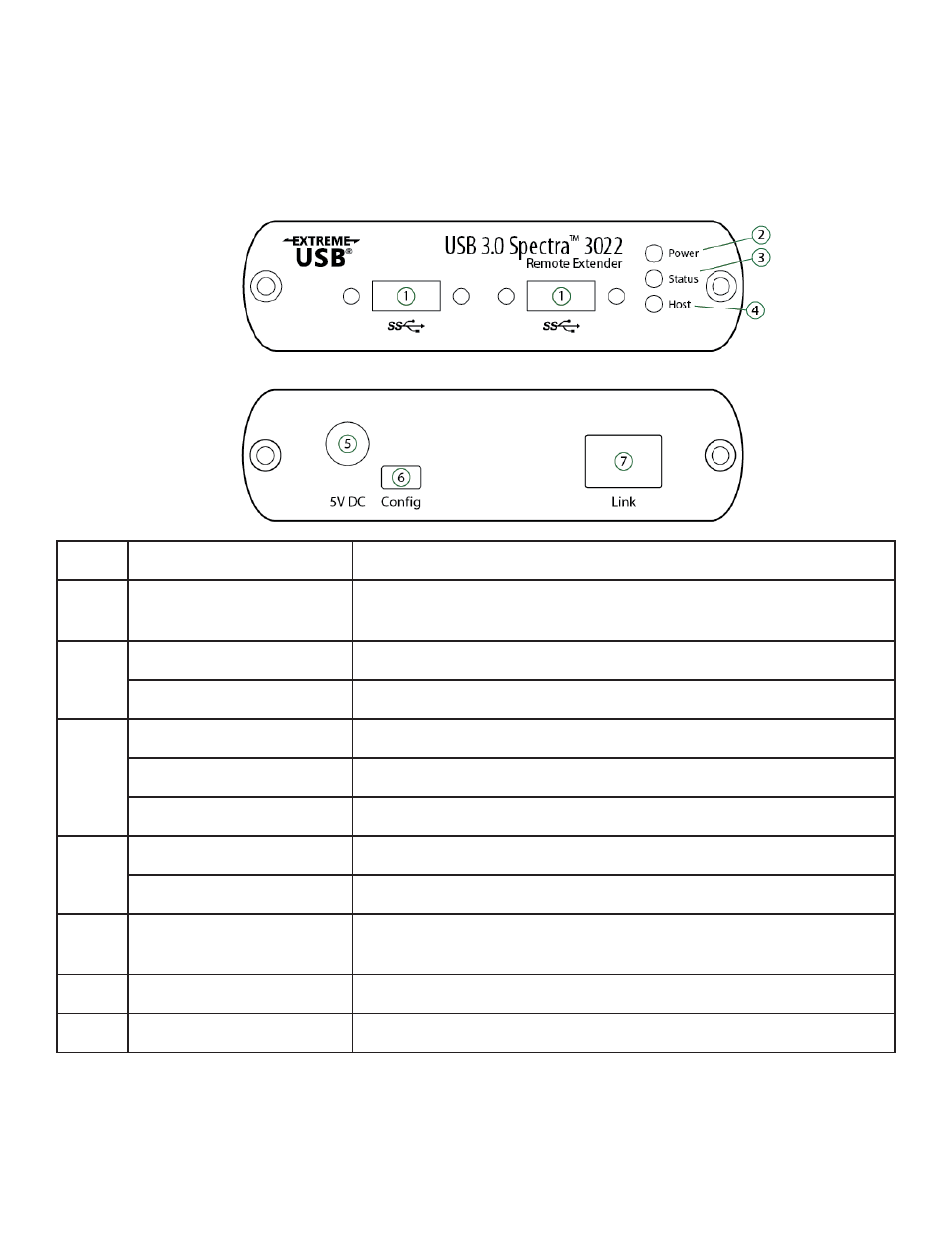

Front View
Front View
Rear View
Rear View
ITEM TYPE DESCRIPTION
1 USB 3.0 Type A ports Used to connect USB 3.0 device(s) to the REX unit. Ports accept
locking or non-locking USB 3.0 Type A connectors.
2
Power ON Unit is powered properly.
Power OFF Unit is not powered or not powered properly.
3
Status Blinking (1Hz) Waiting for connection to LEX.
Status ON LEX/REX are linked and operating normally.
Status OFF Fault detected; power cycle required.
4
Host ON SuperSpeed Host detected on upstream facing port.
Host OFF SuperSpeed Host not detected.
5 Power Port Connects to the locking AC power supply. Required on REX for
proper operation.
6 Config Port Reserved for manufacturer use.
7 Link Port (Duplex LC) Extension link Duplex LC fiber optic transceiver port.
