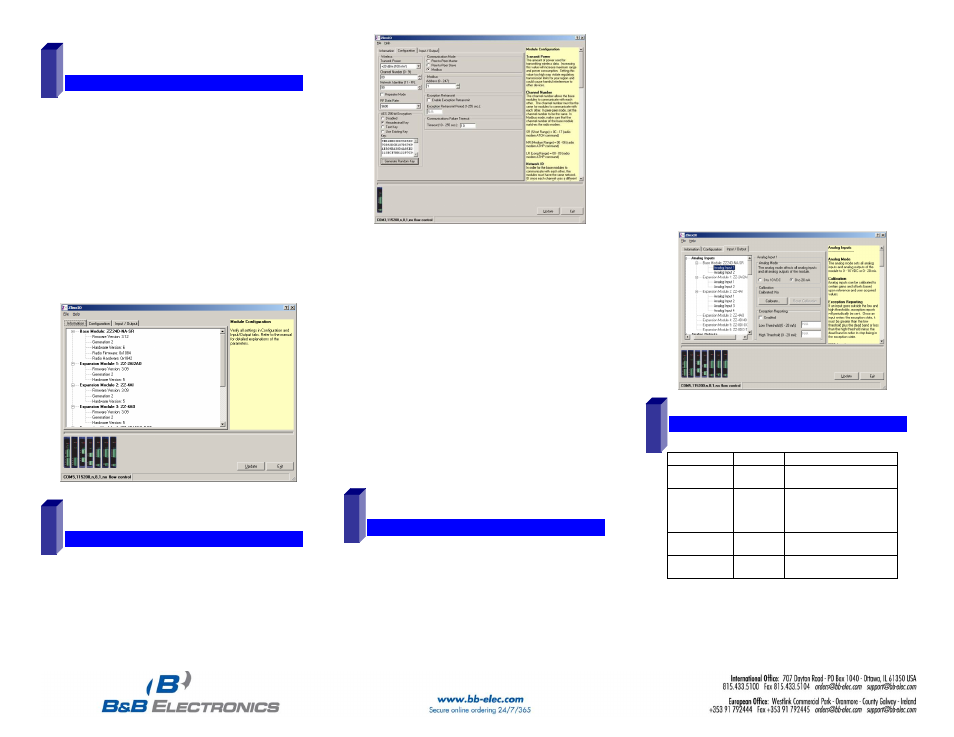

7516R8_ZlinxIO-0812qsg – Modbus Mode
S
S
t
t
a
a
r
r
t
t
Z
Z
l
l
i
i
n
n
x
x
I
I
/
/
O
O
M
M
a
a
n
n
a
a
g
g
e
e
r
r
Connect a PC serial port (COM1 to 16) to the
Configuration Box using a straight-through serial cable or
USB cable if using a ZZ-PROG1-USB Module.
Click Start\Programs\B&B Electronics\Zlinx\Zlinx
Manager\Zlinx Manager, then click Zlinx I/O and then
Zlinx I/O Configuration. It will auto-search for attached
Zlinx Modules on startup. Zlinx I/O will open and display
the Information tab showing model numbers, version
numbers of the attached Base and Expansion Modules.
o
Make sure that all Base Modules have the same
firmware revision*
o
Make sure that all Expansion Modules have the
same firmware version*
*This can be verified under the Information tab.
C
C
o
o
n
n
f
f
i
i
g
g
u
u
r
r
e
e
C
C
o
o
m
m
m
m
u
u
n
n
i
i
c
c
a
a
t
t
i
i
o
o
n
n
M
M
o
o
d
d
e
e
On the Configuration tab:
Select the Modbus Mode to communicate with a Modbus
RF modem.
Set the Modbus address to the address number desired
for the Module being configured.
Configure Wireless settings:
o
Select the desired RF Transmit Power (not
applicable for MR models).
o
Select the desired OTA data rate (not applicable for
SR, MR, and LR-868 models).
o
Set the Channel Number to match the Modbus radio
modem you will be communicating with.
o
Set the Network Identifier to match the Modbus radio
modem you will be communicating with.
o
If using a MR or ZP9D-115RM-LR-xx radio modem,
set the destination address (ATDT) to 0xFFFF.
o
Set Repeater checkbox if the Base is to be a
repeater. Note that ONLY the (MR/ZZ9D-xx-LR-xx)
version supports this.
o
Select encryption (not applicable for MR models).
Note: Refer to the manual for more details
concerning wireless settings.
Click Update to save configuration.
C
C
o
o
n
n
f
f
i
i
g
g
u
u
r
r
e
e
I
I
n
n
p
p
u
u
t
t
/
/
O
O
u
u
t
t
p
p
u
u
t
t
Set Analog Inputs and Outputs for 0 to 10 VDC or 0 to 20
mA as required (setting one sets all analog I/O for that
module).
Set Digital Inputs for Discrete or Counter, as required.
Check Enabled checkbox and set appropriate values for
parameters in Exception Reporting section to use the
ability of reporting possible problems on devices.
Set Calibration option if you desire to better match a
sensor, or a portion of a signal, to the I/O.
Check Enabled checkbox and set appropriate values for
parameters in Failsafe section to go to the user-defined
values for AO or DO in case of communication failure.
Check Use Output to Indicate Communication Failure
checkbox in Dedicated Comm Fail Alarm section to
configure the first DO on the Base Module to be a
communication failure alarm indicator.
Check Invert Output checkbox to invert the logic of Digital
Outputs on Base or Expansion Modules.
Click Update button to apply the settings.
O
O
p
p
e
e
r
r
a
a
t
t
i
i
o
o
n
n
LED
STATUS
FUNCTION
Power
Red
Solid
Power applied
RSSI
Tricolor
Off
Red
Yellow
Green
No radio signal
Weak radio signal
OK radio signal
Strong radio signal
RF Data
Green
Off
Blinking
No radio link data
Radio link data TD/RD traffic
Bus
Green
Off
Blinking
No local bus data
Local bus data TD/RD traffic
Refer to Troubleshooting Section of the Manual if operation is
not successful.
