MAX132

±18-Bit ADC with Serial Interface

______________________________________________________________________________________

Averaging 2 or 3 read-zero measurements provides the
most accurate read-zero value. Perform a read-zero
sequence whenever a large change in the input voltage
is expected.

Sleep Bit

When the sleep bit is set to 1, (bit D5 in command input
register 0), the low-power sleep mode starts when EOC
returns high. In sleep mode, the supply current is typi-
cally 1µA and the oscillator shuts down. The interface
remains active and data can be read. When exiting
sleep mode, the analog circuitry needs time to stabilize
before the next conversion starts. Accomplish this by
writing a dummy instruction to emerge from sleep
mode, and wait at least one conversion cycle before
writing a start instruction.

50Hz/60Hz

With a 32,768Hz crystal, the 50Hz/60Hz bit sets the
integrate period equal to one line cycle for 50Hz/60Hz
environments. When D6 (in command input register 0)
is set to 0, the integrate count is an integer multiple of
60Hz (32,768Hz/60Hz = 546 counts). When D6 is set to
1, the integrate input count is an integer multiple of
50Hz (32,768Hz/50Hz = 655 counts). Achieve the
greatest AC rejection by adjusting the integration peri-
od for 50Hz or 60Hz.

Start Conversion Bit

The start conversion bit (D7) in command input register
0 initiates a conversion when set to 1. The MAX132
immediately starts a conversion, stops at conversion
end, and then waits for the next start-bit command. A
start instruction is needed to initiate each conversion.
To initiate a continuous data stream, write a separate
start command for each conversion in three ways:

1) Wait longer than a known conversion time and then

write another start command.

2) Poll either the EOC status register bit or the EOC

line to determine conversion end and start time for
the next conversion. EOC becomes 1 at conversion
end at count 0000 of the conversion counter (Figure
10).

3) Set the start bit to 1 before a conversion end. The

internal conversion counter is then checked for its
count. If the count is 0000 (EOC = 1), a new conver-
sion starts and the conversion counter is set to
0001. The start bit resets to 0 after 5 clock cycles.
The MAX132 will not check the start bit again until
the conversion counter returns to a 0000 count. This
means a start command can be given any time after
0005 internal conversion count; the next conversion
starts when the counter returns to 0000.

DE-1

DE-2

DE-3

DE-4

X8-1

X8-2

X8-3

ZERO INT

INT OUT

50Hz mode

INTEGRATE

264

545

655

145

679

MAX

545

MAX

SOFT

OVERRANGE

AREA

(SEE TEXT)

147

0001

0000

0111

INT START

RESET

60Hz

60Hz mode

659 667

CHOP

1600

1346

1638

1783

1823

1970

2017

2047

0000

RESET EVENTS

INTERNAL CONVERSION DATA LATCH

LATCH

EOC

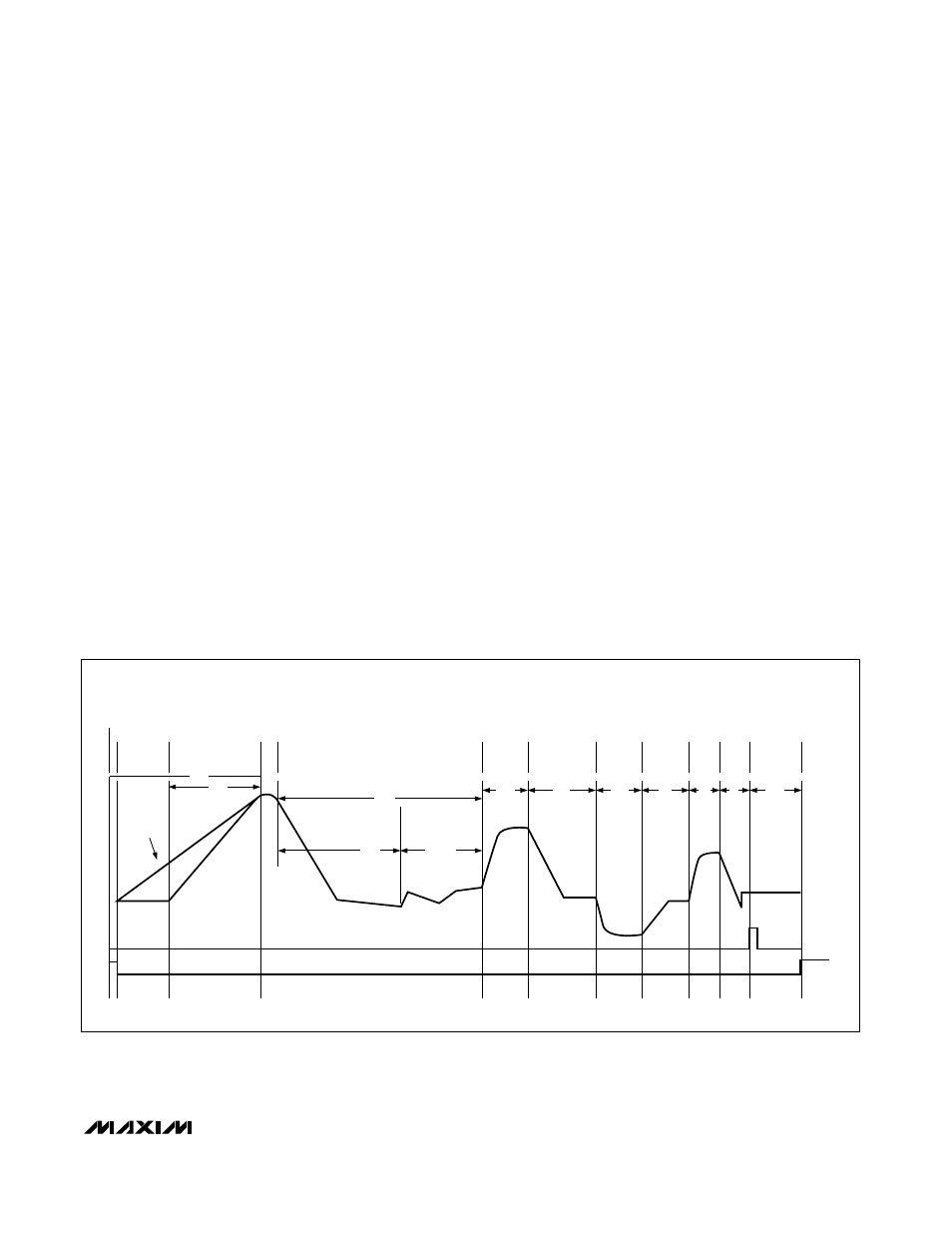

Figure 10. Conversion Timing (Negative Input Shown)
