MAX533

2.7V, Low-Power, 8-Bit Quad DAC

with Rail-to-Rail Output Buffers

______________________________________________________________________________________

For this command, the data bits are “Don't Cares.” As
an example, three MAX533s are daisy chained (A, B,
and C), and devices A and C need to be updated. The
36-bit-wide command would consist of one 12-bit word
for device C, followed by an NOP instruction for device
B and a third 12-bit word with data for device A. At

CS’s

rising edge, device B will not change state.

Set DOUT Phase—SCLK Rising (Mode 1)

Mode 1 resets the serial-output DOUT to transition at
SCLK’s rising edge. Once this command is issued,
DOUT’s phase is latched and will not change except on
power-up or if the specific command to set the phase
to falling edge is issued.

This command also loads all DAC registers with the con-
tents of their respective input registers, and is identical to
the “

LDAC” command.

Set DOUT Phase—SCLK Falling (Mode 0, Default)

This command resets DOUT to transition at SCLK’s falling
edge. The same command also updates all DAC registers
with the contents of their respective input registers, identical
to the “

LDAC” command.

LDAC Operation (Hardware)

LDAC is typically used in 4-wire interfaces (Figure 7). This
command is level sensitive, and it allows asynchronous
hardware control of the DAC outputs. With

LDAC low, the

DAC registers are transparent, and any time an input regis-
ter is updated, the DAC output immediately follows.

Clear DACs with

CLR

Strobing the

CLR pin low causes an asynchronous

clear of input and DAC registers and sets all DAC out-
puts to zero. Similar to the

LDAC pin, CLR can be

invoked at any time, typically when the device is not
selected (

CS = H). When the DAC data is all zeros, this

function is equivalent to the “Update all DACs from Shift
Registers” command.

Serial Data Output

DOUT is the internal shift register’s output. DOUT can
be programmed to clock out data on SCLK’s falling
edge (mode 0) or rising edge (mode 1). In mode 0, out-
put data lags input data by 12.5 clock cycles, maintain-
ing compatibility with Microwire and SPI. In mode 1,
output data lags input data by 12 clock cycles. On
power-up, DOUT defaults to mode 0 timing. DOUT
never three-states; it always actively drives either high
or low and remains unchanged when

CS is high.

1 0

1 1

(

LDAC = x)

1 0

(

LDAC = x)

SCLK

DIN

I/0

MICROWIRE

PORT

MAX533

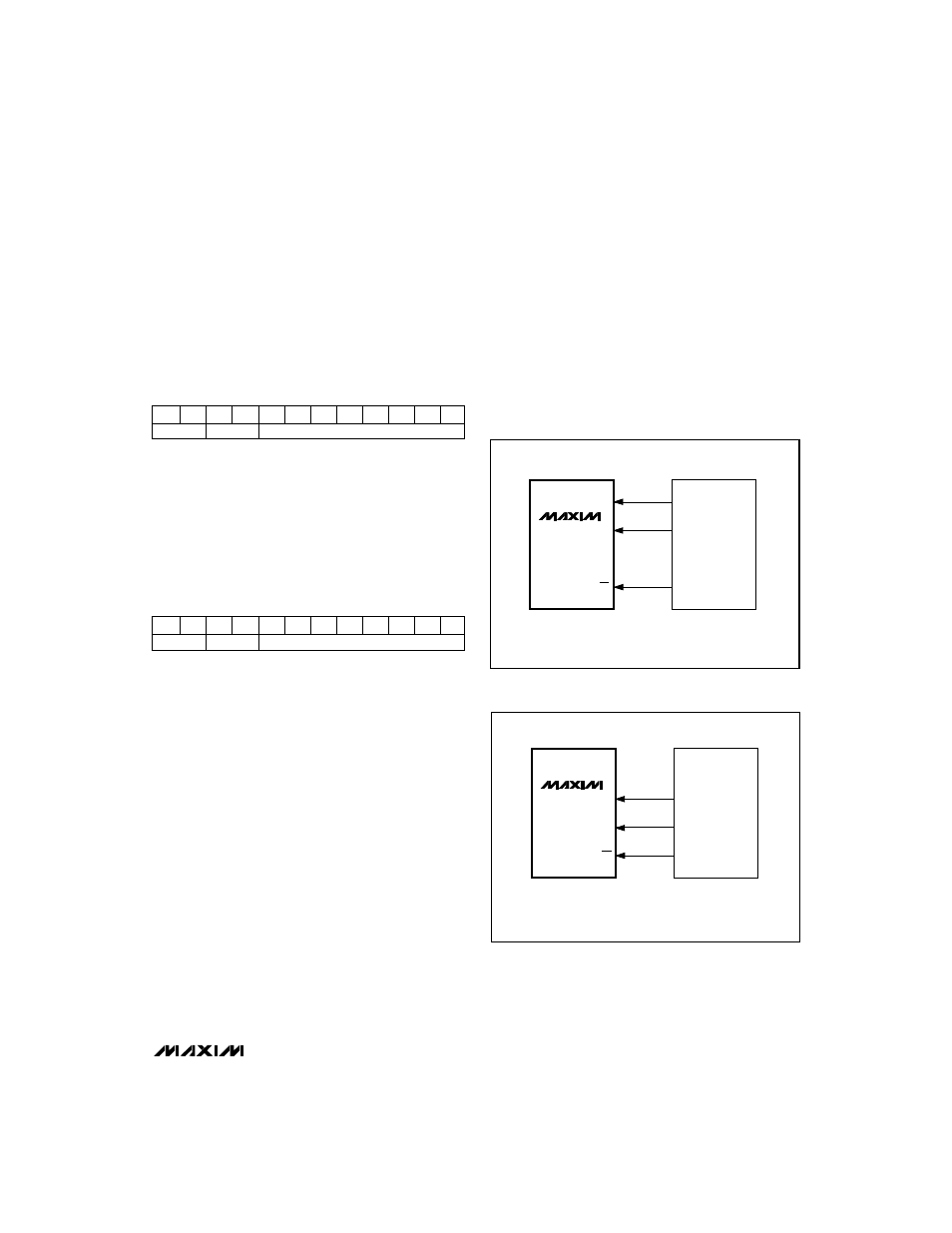

Figure 4. Connections for Microwire

DIN

SCLK

MOSI

SCK

I/0

SPI/QSPI

PORT

MAX533

CPOL = 0, CPHA = 0

Figure 5. Connections for SPI/QSPI
