MAX912/MAX913
Single/Dual, Ultra-Fast, Low-Power,
Precision TTL Comparators
_______________________________________________________________________________________ 5

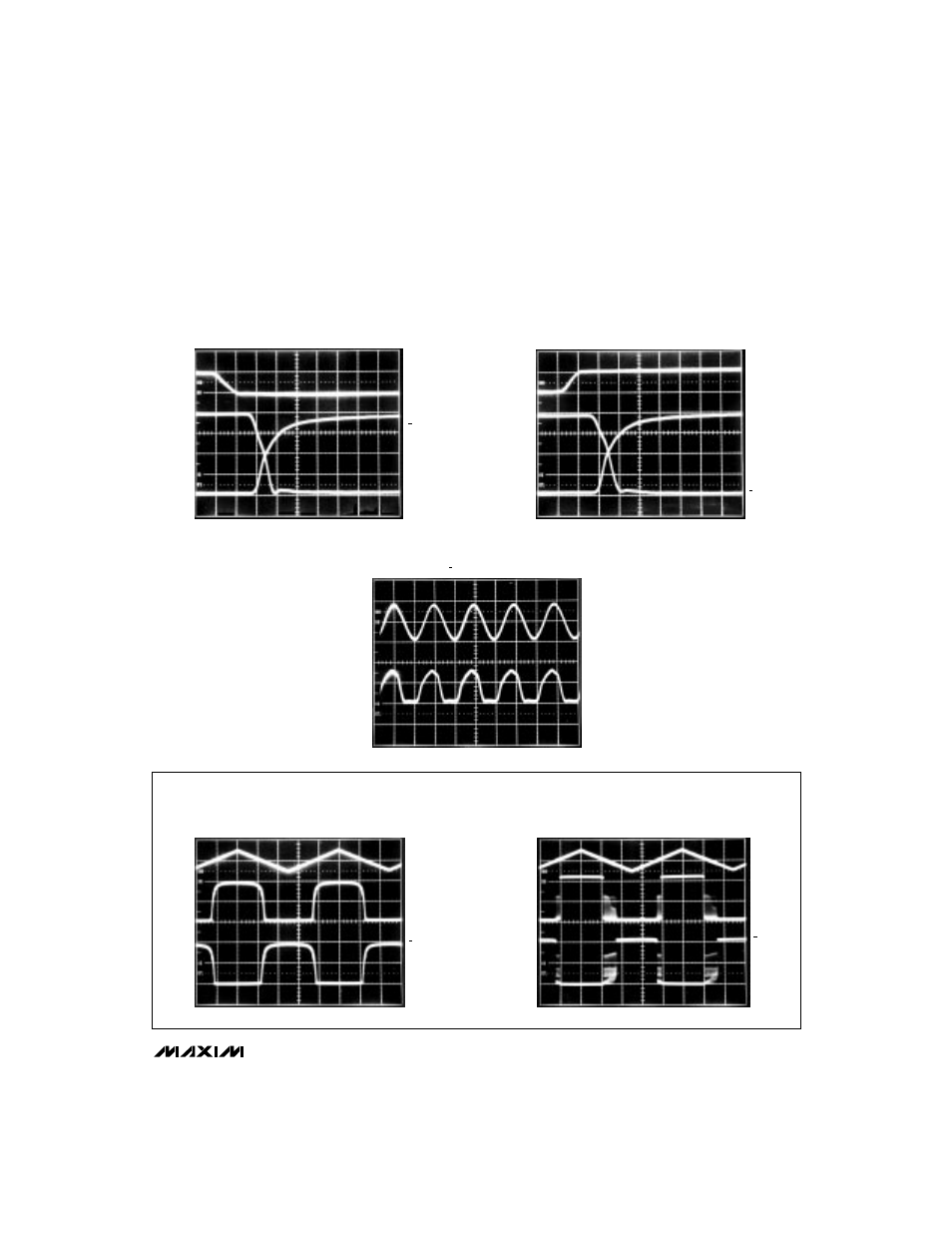

____________________________Typical Operating Characteristics (continued)
(V+ = 5V, V- = -5V, V LE = 0V, C L = 15pF, T A = +25°C, unless otherwise noted.)
POSITIVE-TO-NEGATIVE PROPAGATION DELAY
INPUT
100mV/div
OUTPUT
Q
1V/div
Q
5ns/div
NEGATIVE-TO-POSITIVE PROPAGATION DELAY
INPUT
100mV/div
OUTPUT
Q
1V/div
Q
5ns/div
MAX912/MAX913 RESPONSE TO
50MHz ( + 10mV P-P ) SINE WAVE
INPUT
10mV/div
OUTPUT
Q
2V/div
10ns/div
INDUSTRY STANDARD
686 RESPONSE
INPUT
20mV/div
OUTPUT
Q
1V/div
Q
20 µ s/div
1V/div
MAX912/MAX913 RESPONSE
INPUT
20mV/div
OUTPUT
Q
1V/div
Q
20 µ s/div
1V/div
MAX912/MAX913 RESPONSE TO SLOW-MOVING TRIANGLE WAVE
